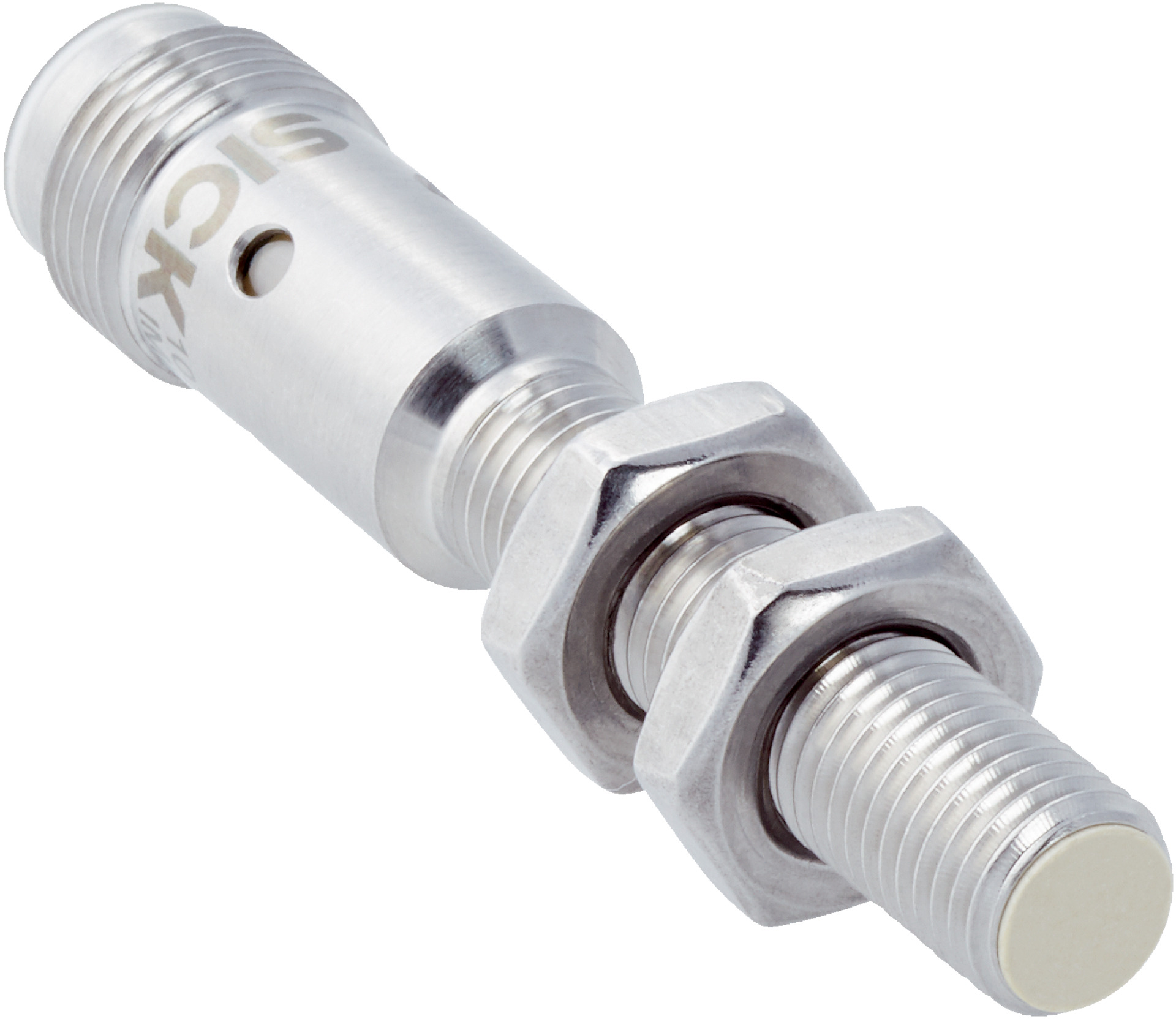

M8 Inductive Proximity Sensor | Stainless Steel V4A Housing | IP68 & IP69K Rated | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for robust industrial automation applications, featuring a stainless steel V4A housing and a sensing range of 2 mm. With an IP68 and IP69K enclosure rating, it withstands harsh environments, making it ideal for hygienic and washdown zones. This sensor offers a high switching frequency of 4,000 Hz and is resistant to cleaning agents, ensuring reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V4A (DIN 1.4404 / AISI 316L)
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: NPN, normally open
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Sensing face material: Plastic, LCP
- Housing length: 60 mm
- Thread length: 32 mm
- Tightening torque max: 14 Nm
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Flush installation type
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Switching frequency up to 4,000 Hz
- NPN switching output with normally open function
- Connection via male M12 4-pin connector
- Enclosure rating IP68 and IP69K for high protection
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator for easy setup
- Shock and vibration resistant with high durability
- Stainless steel V4A housing and plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing extends product life reducing waste
- High resistance to cleaning agents supports hygienic environments
- Energy efficient operation with low power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

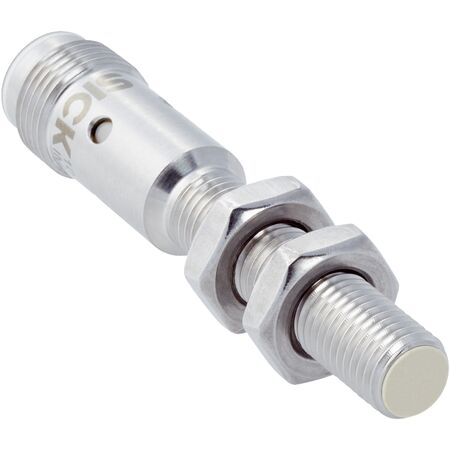

The SICK IMF08-02BNSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
