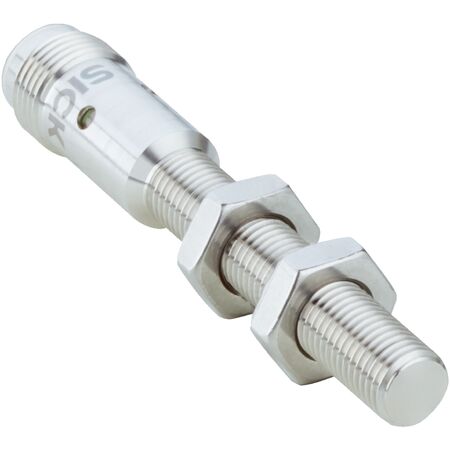

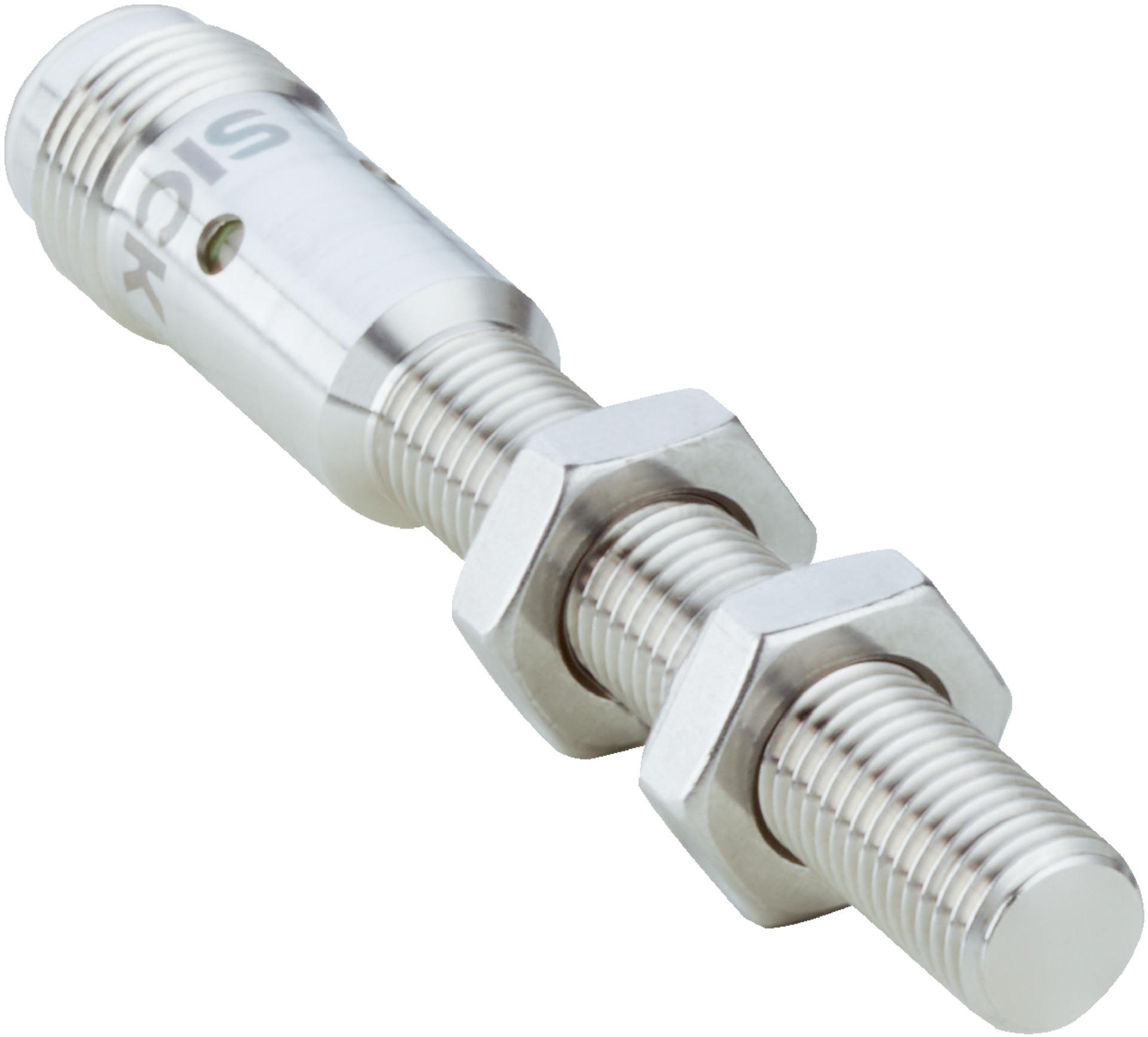

M8 Inductive Proximity Sensor | Stainless Steel | IP68 & IP69K Rated | 2mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for robust sensing in hygienic and washdown zones, featuring a durable stainless steel housing and an IP68/IP69K rating for high protection. With a sensing range of 2 mm and a flush installation type, it's perfect for industrial automation applications that require reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Protection class: III
- Dimensions (H x L x W): 8mm x 70mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Sensing range of 2 mm with safe sensing range of 1.62 mm
- Flush installation type
- Switching frequency of 100 Hz
- NPN normally closed switching output with DC 3-wire electrical wiring
- Male connector M12, 4-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V4A, resistant to cleaning agents
- Suitable for hygienic and washdown zones
- Mounting nut included made of V4A stainless steel
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct mounting and electrical connection.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring flush installation sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Resistant to cleaning agents, supporting hygienic environments and reducing chemical use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK IMI08-02BNONC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
