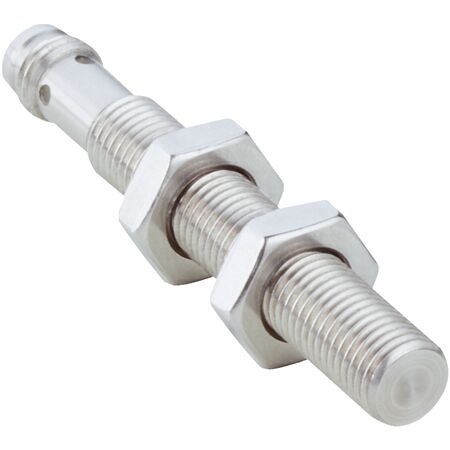

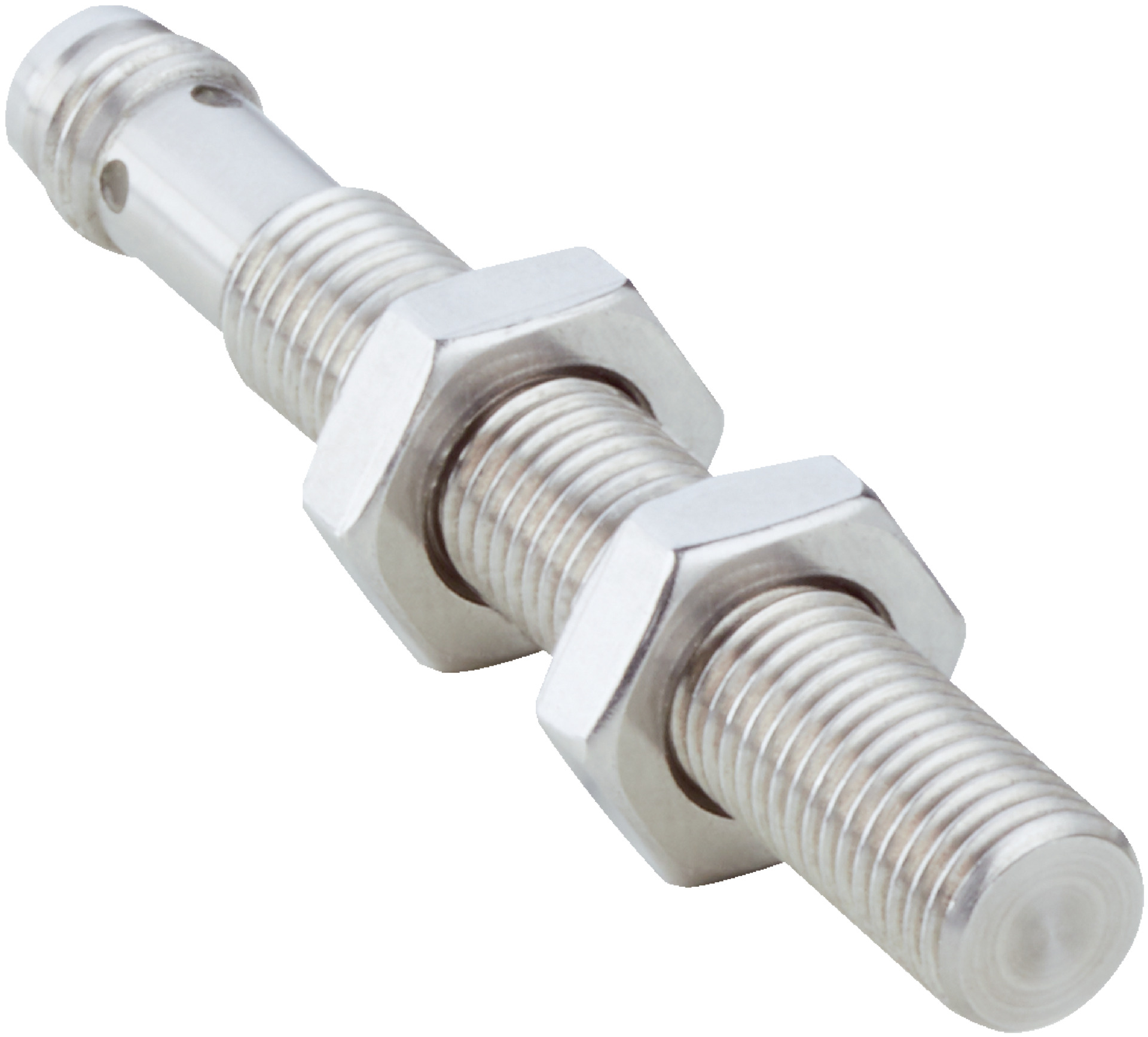

M8 Inductive Proximity Sensor | Stainless Steel Housing | IP68 & IP69K Rated | 3mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for high protection in harsh environments. With a sensing range of 3mm and a switching frequency of 1,200 Hz, it's perfect for detecting metal objects in zones with coolants and lubricants, ensuring reliable performance even under difficult conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- Continuous current Ia: ≤ 200 mA
- Protection class: III
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Thread length: 45.5 mm
- Tightening torque max: ≤ 8 Nm
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Switching output: PNP, Normally Open (NO)
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Flush installation type
- Sensing range Sn of 3 mm with safe sensing range Sa of 2.43 mm
- Switching frequency of 1,200 Hz
- PNP switching output with NO function
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Visual adjustment indicator and IO-Link communication interface
- Short-circuit and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from –25 °C to +85 °C
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for detecting metal objects
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK IM08-03BPS-VT1 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
