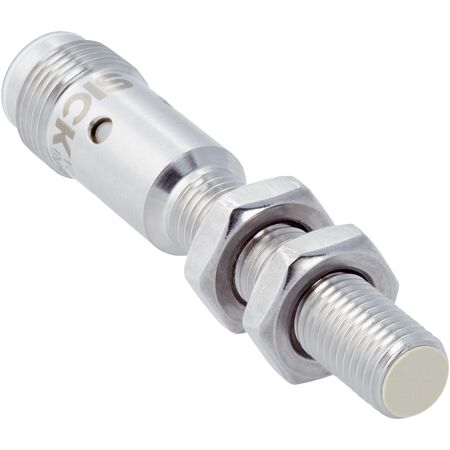

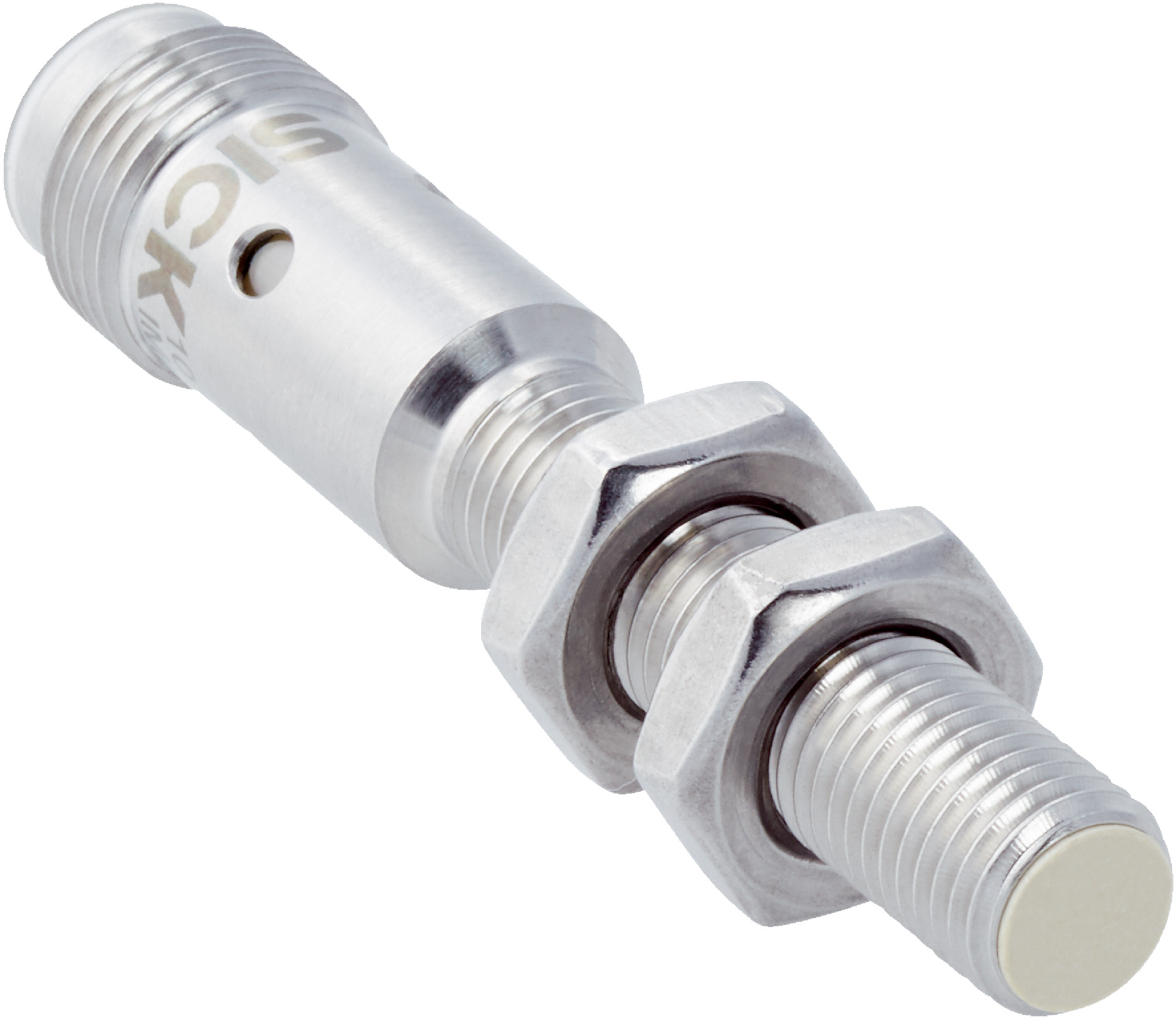

M8 Inductive Proximity Sensor | Stainless Steel V4A | IP68 & IP69K Rated | 4,000 Hz Switching Frequency | by SICK
The M8 Inductive Proximity Sensor is designed for robust industrial automation, featuring a stainless steel V4A housing and a sensing range of 2 mm. With an impressive switching frequency of 4,000 Hz and IP68/IP69K ratings, it excels in hygienic and washdown zones, ensuring reliable performance even in challenging conditions. Ideal for precise object detection, this sensor is built to withstand harsh environments and offers IO-Link communication for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Standard design, stainless steel V4A (DIN 1.4404 / AISI 316L)
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 2 mm
- Safe sensing range Sa: 1.62 mm
- Installation type: Flush
- Switching frequency: 4,000 Hz
- Connection type: Male connector M12, 4-pin
- Switching output: PNP, normally open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68, IP69K
- Special features: Resistant to cleaning agents, visual adjustment indicator, IO-Link, temperature resistance
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm / 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -40 °C to +100 °C
- Sensing face material: Plastic, LCP
- Housing length: 60 mm
- Thread length: 32 mm
- Tightening torque max: 14 Nm
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud), process data length 1 Byte
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Flush installation type with 2 mm sensing range
- High switching frequency of 4,000 Hz
- PNP switching output with normally open function
- IP68 and IP69K rated for protection against dust and high-pressure washdown
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator and IO-Link communication interface
- Stainless steel V4A housing and plastic sensing face for durability
- Short-circuit and power-up pulse protection included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring precise object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh cleaning agents reducing environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK IMF08-02BPSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
