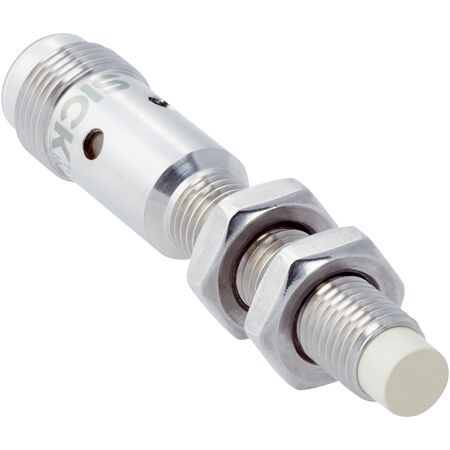

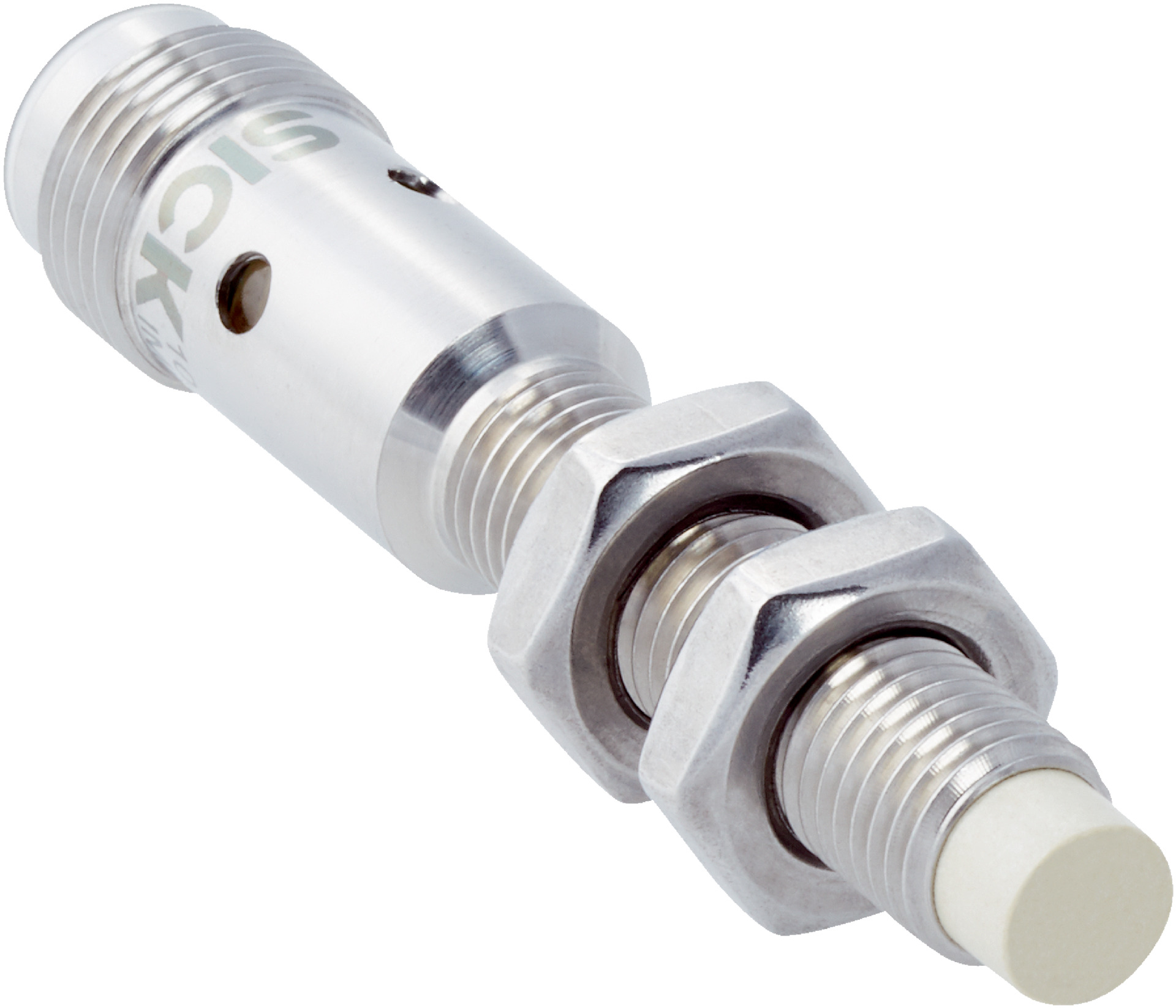

M8 Inductive Proximity Sensor | Stainless Steel Housing | IP68 & IP69K Rated | 4mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for robust industrial automation applications, featuring a durable stainless steel housing and an IP68/IP69K rating for high protection against dust and water. With a sensing range of 4 mm and a switching frequency of up to 4,000 Hz, it's perfect for hygienic and washdown zones, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)
- Sensing face material: Plastic, LCP
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ± 10%
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles
- Ambient operating temperature: -40 °C to +100 °C
- Protection class: III
- Switching output: NPN normally open
- Connection type: Male connector M12, 4-pin
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Standard design housing with M8 x 1 thread size
- Non-flush installation type
- Sensing range of 4 mm with safe sensing range of 3.24 mm
- Switching frequency up to 4,000 Hz
- NPN normally open (NO) switching output with DC 3-wire electrical wiring
- IP68 and IP69K rated enclosure for high protection
- Resistant to cleaning agents and temperature resistant
- Visual adjustment indicator for easy setup
- Includes mounting nuts made of V4A stainless steel
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Hygienic and washdown zones
- Difficult application conditions requiring robust sensing
- Industrial automation requiring non-flush inductive sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces need for frequent replacements
- High resistance to cleaning agents supports hygienic environments
- Long operational life reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMF08-04NNSNC0S inductive sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
