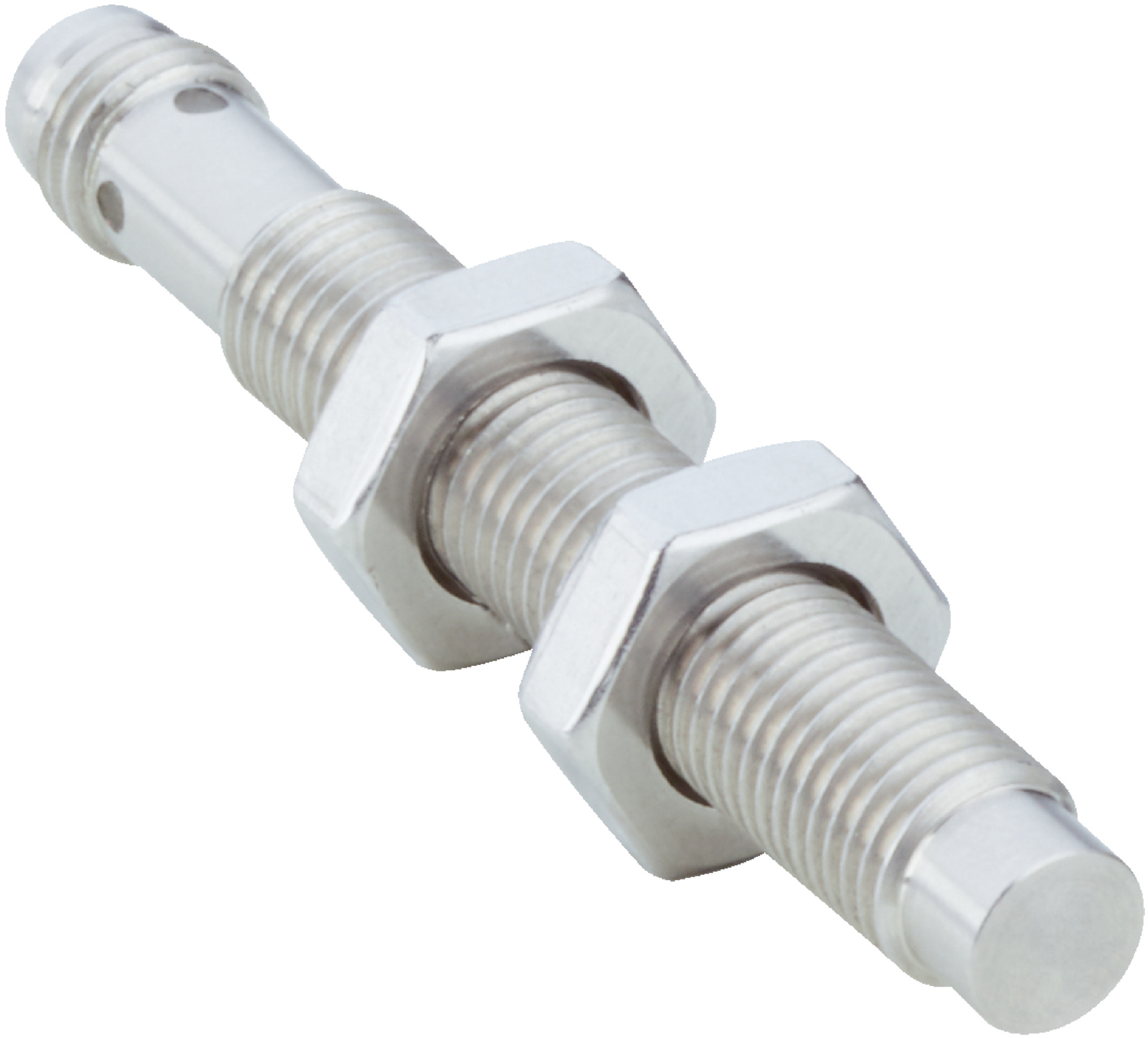

M8 Inductive Proximity Sensor | Stainless Steel | IP68 & IP69K Rated | 6mm Sensing Range | by SICK
The M8 Inductive Proximity Sensor is designed for reliable object detection in industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for harsh environments. With a sensing range of 6mm and a switching frequency of 700 Hz, this sensor is perfect for applications involving coolants and lubricants, ensuring durability and efficiency in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 20%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 10 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 30 g, 11 ms; vibration resistance: 10 to 55 Hz, 1 mm
- Operating temperature range: -25 °C to +85 °C
- Housing and sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- Communication interface: IO-Link V1.0, COM2 (38.4 kBaud)
- Process data length: 1 Byte
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Pressure resistance up to 100 bar
- Sensing range Sn of 6 mm with safe sensing range Sa of 4.86 mm
- Non-flush installation type
- Switching frequency of 700 Hz with PNP NO output
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A resistant to coolant lubricants
- Visual adjustment indicator and IO-Link communication interface
- Triple sensing range capability
- Includes mounting nut and washers made of V2A stainless steel
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

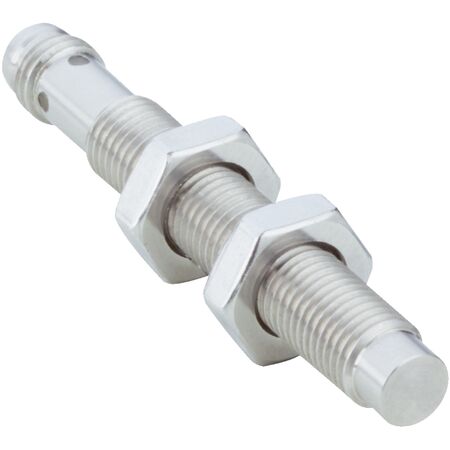

The SICK IM08-06NPS-VT1 inductive sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
