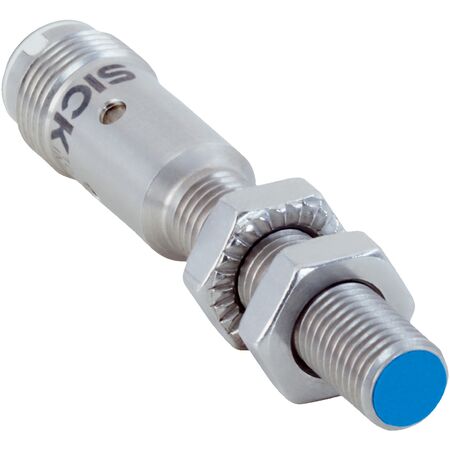

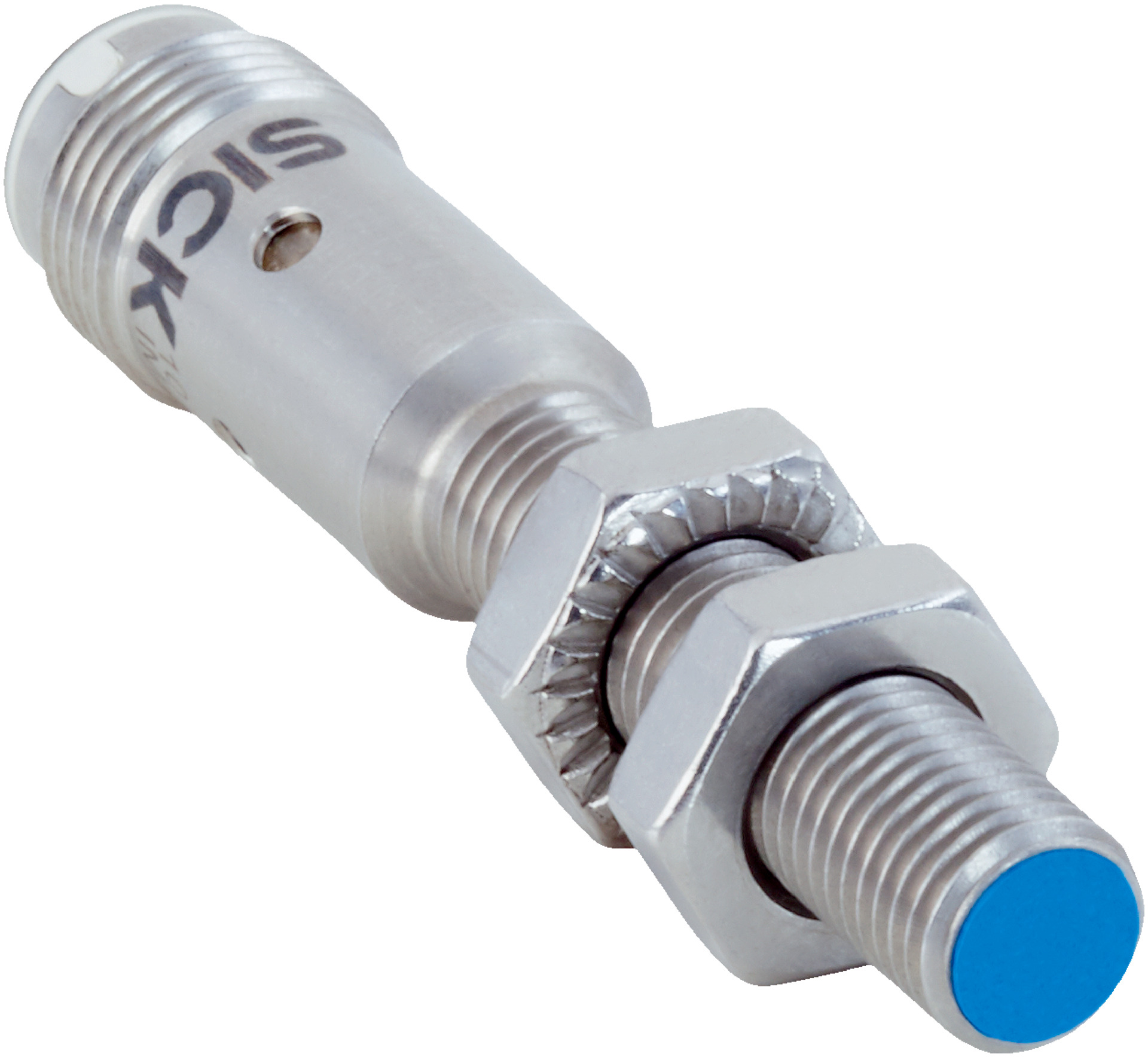

M8 IO-Link Proximity Sensor | IP68 & IP69K Rated | Adjustable Switching Points | Stainless Steel Housing | by SICK
The M8 IO-Link Proximity Sensor is designed for industrial automation, featuring a sensing range of 0 mm to 2 mm and up to 4 adjustable switching points. Built for harsh environments with an IP68 and IP69K rating, this sensor is ideal for applications involving coolants and lubricants, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Metric M8 x 1 thread, Ø 8 mm diameter
- Sensing range Sn: 0 mm to 2 mm
- Safe sensing range Sa: 1.62 mm
- Number of switching points: Up to 4 adjustable
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Switching output: PNP, programmable NC/NO
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68, IP69K
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Shock resistance: 100 g / 2 ms / 500 cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm, 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -40 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic LCP
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Dimensions (H x L x W): 60mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Sensing range 0 mm to 2 mm with safe sensing range of 1.62 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency up to 1000 Hz
- Flush installation type with male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- Electrical wiring DC 4-wire with short-circuit and power-up pulse protection
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with counter and debouncing
- Resistant against coolant lubricants
- Communication via IO-Link V1.1 with 5 ms cycle time
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
- Operating temperature range from -40 °C to +75 °C
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting torque and electrical connections according to manufacturer guidelines.
Applications
- Industrial automation for object detection and counting
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low voltage DC supply
- Resistant to harsh environments reducing risk of sensor failure and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK IMC08-02BPPVC0SA71 sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
