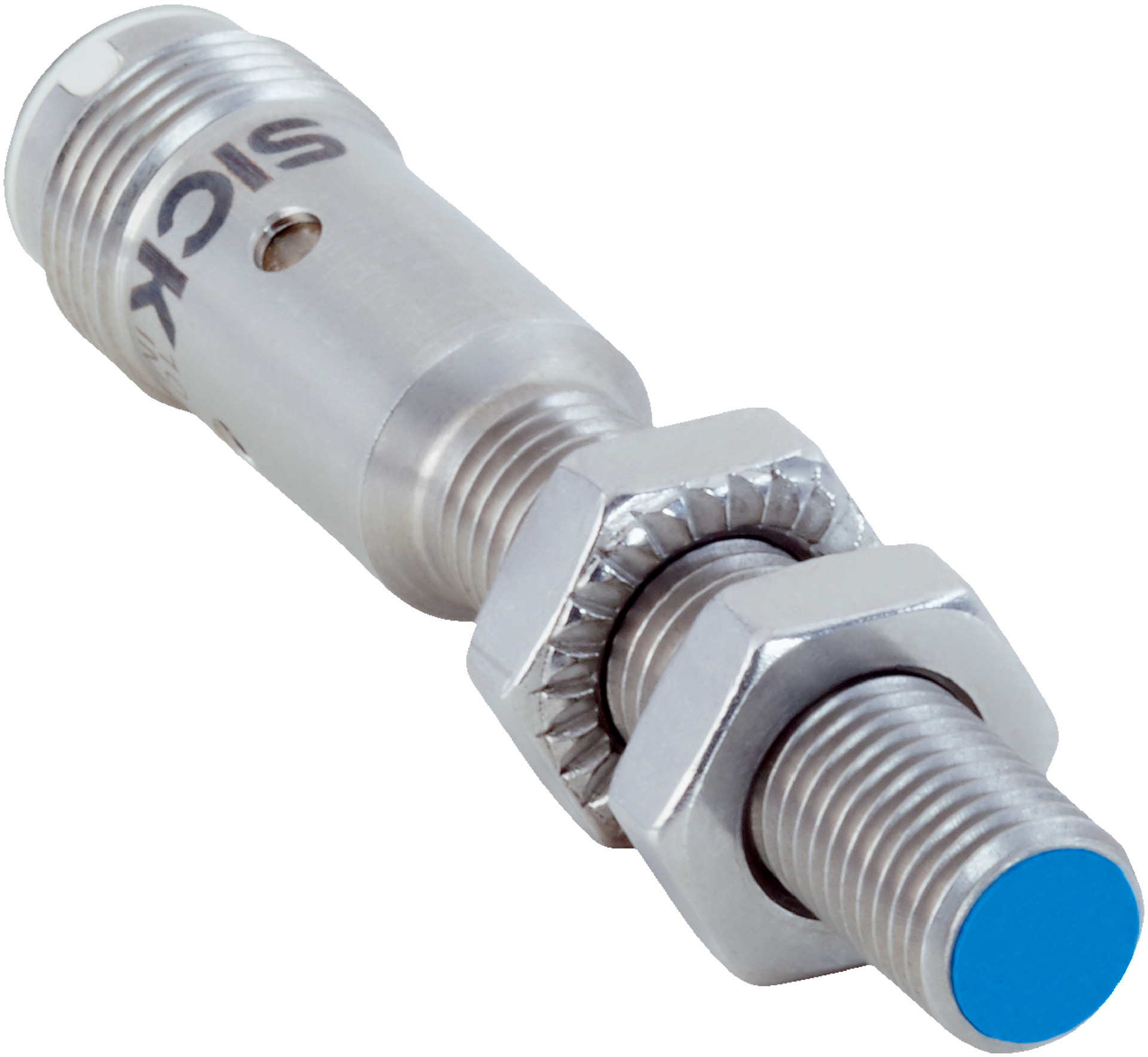

M8 IO-Link Proximity Sensor | IP68 & IP69K Rated | Stainless Steel Housing | Programmable Hysteresis | by SICK
The M8 IO-Link Proximity Sensor is designed for industrial automation, featuring a robust stainless steel housing and an IP68/IP69K rating for harsh environments. With a sensing range of 0 to 2 mm and programmable hysteresis, it’s perfect for precise object detection in applications involving coolants and lubricants. Built for reliability, this sensor ensures optimal performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift of sensing range: ± 10%
- Continuous current: ≤ 200 mA
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Resolution typical: 5 μm (0-0.5 mm), 20 μm (0.5-1.5 mm), 50 μm (1.5-2 mm)
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Sensing range 0 mm to 2 mm with safe sensing range of 1.62 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency up to 1,000 Hz
- Flush installation type with male M12 4-pin connector
- PNP switching output with programmable NC/NO function
- Electrical wiring DC 4-wire with short-circuit and power-up pulse protection
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with time measurement and debouncing
- Resistant against coolant lubricants
- Communication via IO-Link V1.1 with COM2 38.4 kBaud
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303) with plastic sensing face
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper flush mounting and secure connection with M12 connector.
Applications
- Industrial automation for precise object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient operation with low power consumption
- Resistant to harsh environments, reducing environmental impact from sensor failures
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

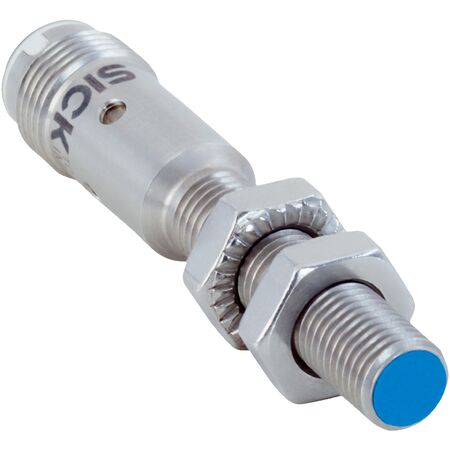

The SICK IMC08-02BPPVC0SA70 sensor is available for immediate purchase, ideal for industrial automation applications requiring precise sensing in harsh environments.
