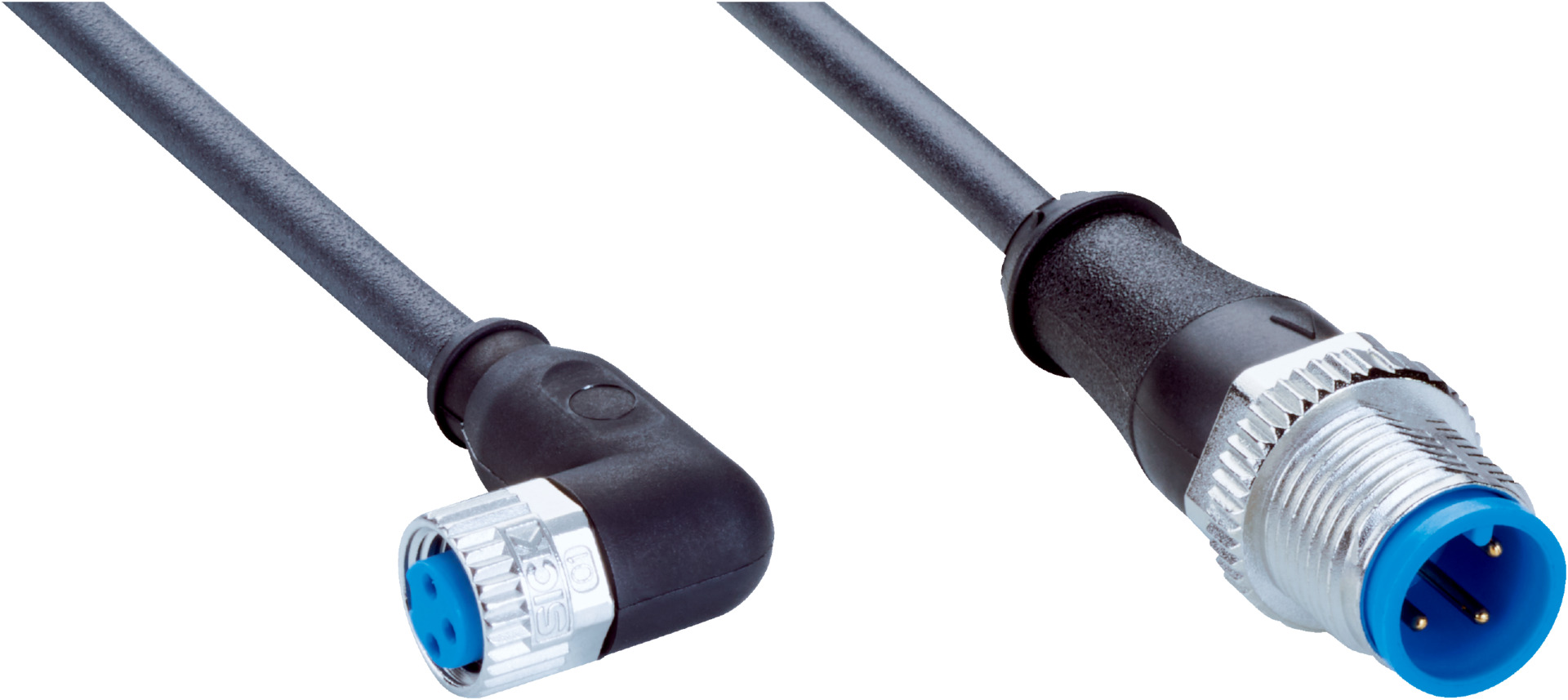

M8 to M12 Sensor Actuator Cable | 3m Length | Halogen-Free PUR | IP65/IP66K/IP67 Rated | by SICK
The M8 to M12 sensor actuator cable is designed for reliable connectivity in industrial automation and robotics applications. With a 3m length, halogen-free PUR jacket, and IP65/IP66K/IP67 ratings, it ensures durability and flexibility in various environments. Ideal for uncontaminated zones and drag chain operations, this cable supports high torsion cycles and operates effectively in temperatures from -40 °C to +85 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 to M12 Sensor Actuator Cable | 3m Length | Halogen-Free PUR | IP65/IP66K/IP67 Rated | by SICK
Brand: SICK
SKU: 2146362
Alternatively Known As: M8 to M12 sensor cable, sensor actuator cable, industrial connector cable, PUR halogen-free cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M12, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm (M8), 0.6 Nm (M12)
- Cable: 3 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Temperature range: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 13mm x 3000mm x 13mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, angled, A-coded
- Male connector M12, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 3 m, 3-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion cycles up to 2,000,000
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

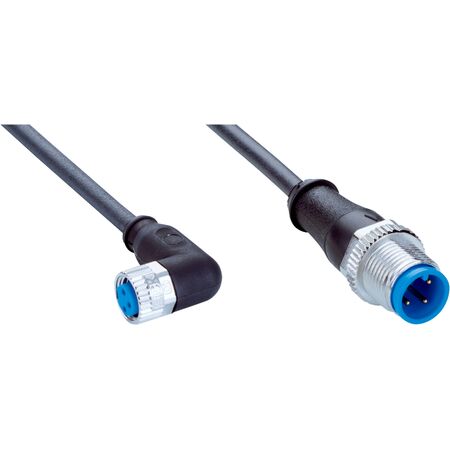

The SICK YG8U13-030UA1M2A13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring reliable and durable connectivity.
