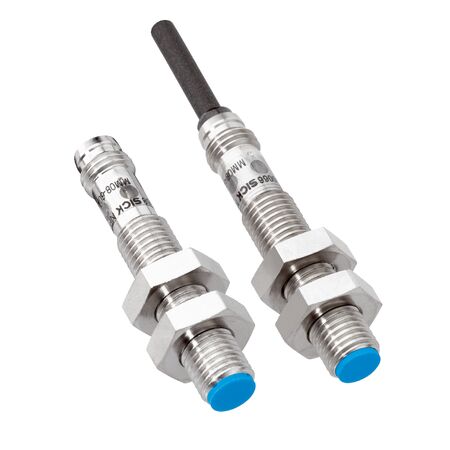

M8 Magnetic Proximity Sensor | Short-body Design | 60mm Sensing Range | IP67 Rated | by SICK
The M8 Magnetic Proximity Sensor is designed for precise position sensing in industrial automation, featuring a short-body design and a sensing range of up to 60 mm. With an IP67 rating for dust and water protection, this sensor is built for durability and reliability in harsh environments, making it ideal for machine safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Magnetic Proximity Sensor | Short-body Design | 60mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040066
Alternatively Known As: M8 Magnetic Sensor, Short-body Proximity Sensor, NPN Magnetic Switch, SICK Magnetic Proximity Sensor
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 0 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Magnetic sensitivity: 1 mT
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR
- Switching output: NPN, normally open (NO)
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Tightening torque max: 6 Nm
- Dimensions (H x L x W): 48mm x 48mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- NPN normally open switching output with 3-wire DC electrical wiring
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
- Housing made of nickel-plated brass for durability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and secure mounting.
Applications
- Industrial automation for position sensing
- Magnetic field detection in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing reduces waste and extends product life
- Low power consumption with efficient DC 3-wire operation
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MM08-60ANS-ZUK magnetic sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
