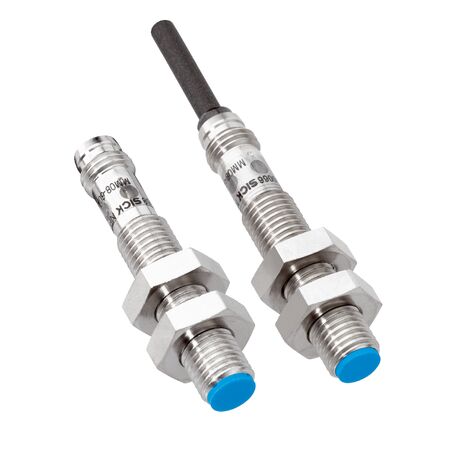

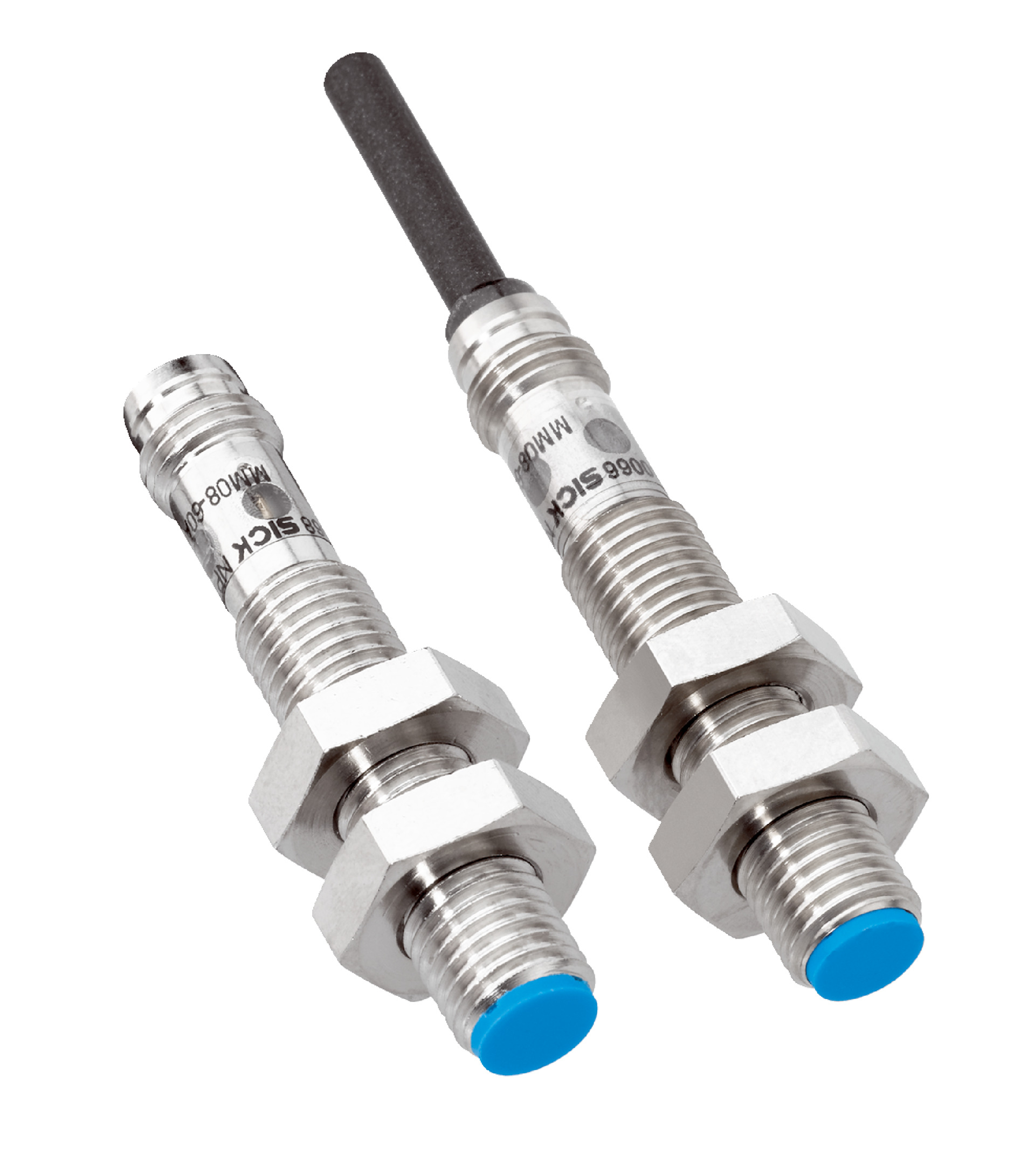

M8 Magnetic Sensor | Short-body Proximity Sensor | 60mm Sensing Range | IP67 Rated | by SICK
The M8 Magnetic Sensor is designed for precise position detection in industrial automation, featuring a sensing range of up to 60 mm and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for machine safety and control systems. Built with durable nickel-plated brass, this sensor offers reverse polarity and short-circuit protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Magnetic Sensor | Short-body Proximity Sensor | 60mm Sensing Range | IP67 Rated | by SICK
Brand: SICK
SKU: 1040027
Alternatively Known As: M8 Magnetic Sensor, Short-body Proximity Sensor, PNP Magnetic Switch
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 0 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Magnetic sensitivity: 1 mT
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m PUR cable
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Housing length: 48 mm
- Thread length: 29.5 mm
- Tightening torque max: 6 Nm
- Dimensions (H x L x W): 48mm x 48mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- IP67 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -25 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for position detection
- Magnetic sensing in manufacturing processes
- Machine safety and control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal nickel-plated brass housing extends product life reducing waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MM08-60APS-ZUK Magnetic Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
