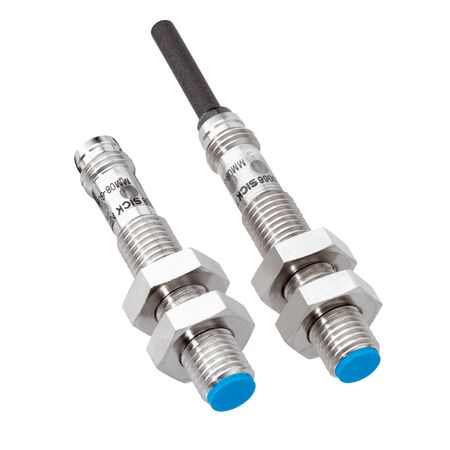

M8 Magnetic Sensor | Short-body Proximity Sensor | 60mm Sensing Range | IP67 Rated | by SICK
The M8 Magnetic Sensor is designed for precise position detection in industrial automation, featuring a short-body design and a sensing range of up to 60 mm. With a high switching frequency of 1,000 Hz and an IP67 rated enclosure, this sensor is perfect for harsh environments, ensuring reliable performance and durability in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Housing: Short-body, metal nickel-plated brass
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 0 mm to 60 mm
- Safe sensing range Sa: 48.6 mm
- Magnetic sensitivity: 1 mT
- Switching frequency: 1,000 Hz
- Connection type: Cable with AMP male connector, 3-pin, 0.2 m
- Switching output: PNP, normally open
- Electrical wiring: DC 3-wire
- Magnetic alignment: Axial
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Current consumption: 10 mA
- Time delay before availability: ≤ 20 ms
- Hysteresis: 1% to 10%
- Reproducibility: ≤ 1%
- Temperature drift: ± 10%
- EMC: According to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- Cable material: PUR
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Ambient operating temperature: –25 °C to +75 °C
- Housing length: 48 mm
- Thread length: 29.5 mm
- Tightening torque max: 6 Nm
- Dimensions (H x L x W): 48mm x 48mm x 8mm
- Weight: 0.1 kg
Key Features
- Short-body housing with M8 x 1 thread size
- Sensing range up to 60 mm with safe sensing range of 48.6 mm
- High switching frequency of 1,000 Hz
- PNP switching output with normally open function
- Cable connection with AMP male connector, 3-pin, 0.2 m length
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Reverse polarity, short-circuit, and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for position detection
- Magnetic sensing in manufacturing processes
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable metal housing reduces replacement frequency and waste
- Low power consumption with efficient DC 3-wire electrical wiring
- Robust design minimizes environmental impact through extended product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK MM08-60APS-ZUDS06 magnetic sensor is available for immediate purchase, ideal for industrial automation and magnetic sensing applications.
