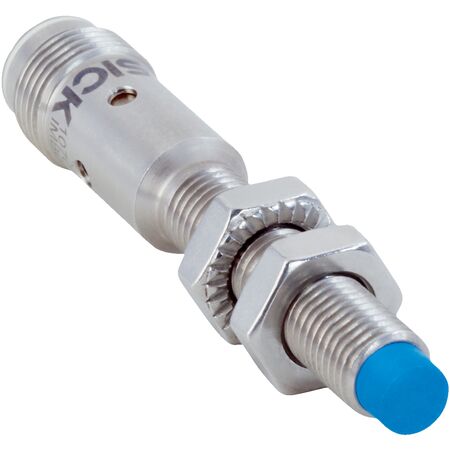

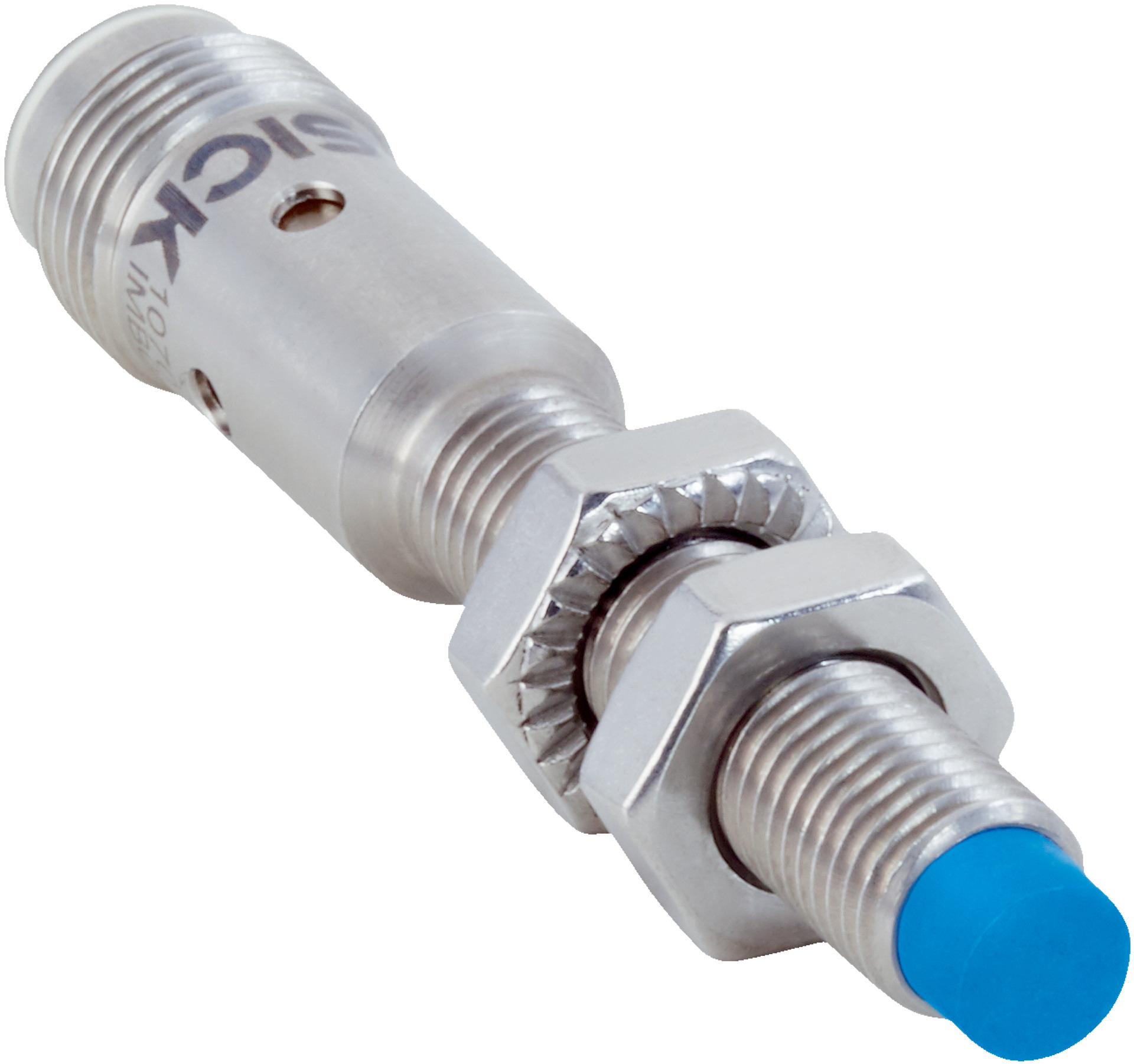

M8 PNP Proximity Sensor | IO-Link Communication | IP68 & IP69K Rated | Stainless Steel Housing | by SICK
The M8 PNP Proximity Sensor is designed for industrial automation, featuring IO-Link communication and an IP68/IP69K rated enclosure for harsh environments. With a sensing range of up to 4 mm and programmable switching outputs, it’s perfect for object detection in challenging conditions, ensuring reliable performance even in the presence of coolants and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Programmable hysteresis
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current: ≤ 200 mA
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Communication interface: IO-Link V1.1 COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Switching output: PNP, programmable NC/NO
- Enclosure rating: IP68, IP69K
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Sensing range up to 4 mm with safe sensing range of 3.24 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- High switching frequency of 1,000 Hz
- Non-flush installation type
- Male M12 4-pin connector
- PNP programmable switching output with NC/NO function
- IP68 and IP69K rated enclosure for harsh environments
- Resistant against coolant lubricants
- Smart Task functionality with IO-Link communication
- Operating temperature range from -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct mounting torque and proper electrical connection using the M12 connector.
Applications
- Industrial automation for object detection
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient DC 4-wire electrical wiring minimizes power consumption
- Resistant to harsh environments reducing environmental contamination risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IMC08-04NPPVC0SA70 sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
