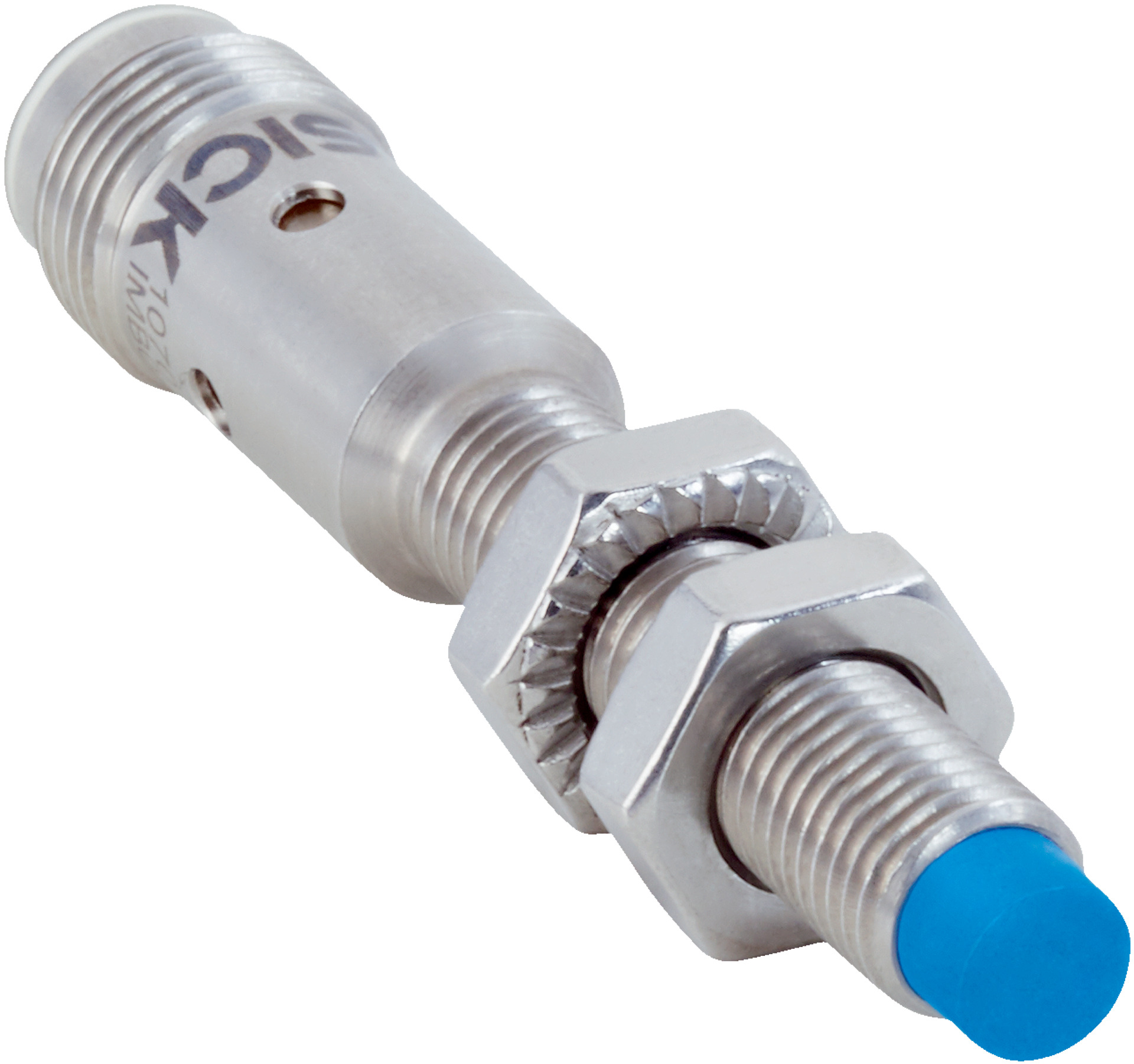

M8 PNP Proximity Sensor | IP68 & IP69K Rated | Programmable Hysteresis | Stainless Steel Housing | by SICK
The M8 PNP Proximity Sensor is designed for industrial automation, featuring a sensing range of 0 to 4 mm and up to 4 adjustable switching points. Built for harsh environments with IP68 and IP69K ratings, this sensor is ideal for applications involving coolants and lubricants, ensuring reliable performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: Programmable
- Reproducibility: ≤ 5%
- Temperature drift: ± 10%
- Continuous current Ia: ≤ 200 mA
- Short-circuit and power-up pulse protection included
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Resolution typical: 10 µm (0-1 mm), 20 µm (1-3 mm), 50 µm (3-4 mm)
- Resolution maximum: 20 µm (0-1 mm), 40 µm (1-3 mm), 100 µm (3-4 mm)
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Process data length: 32 Bit
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Sensing range 0 mm to 4 mm with safe sensing range of 3.24 mm
- Up to 4 adjustable switching points or windows
- Switching modes include single point, window mode, two point mode with visual adjustment indicator
- Switching frequency of 1000 Hz
- Non-flush installation type
- Male connector M12, 4-pin connection
- PNP switching output with programmable NC/NO function
- Electrical wiring DC 4-wire
- Enclosure rating IP68 and IP69K for harsh environments
- Smart Task functionality with counter and debouncing
- Resistant against coolant lubricants
- Communication interface IO-Link V1.1 with COM2 38.4 kBaud
- Operating temperature range -40 °C to +75 °C
- Housing made of stainless steel V2A (DIN 1.4305 / AISI 303)
- Shock and vibration resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct mounting torque and proper electrical connection.
Applications
- Industrial automation for object detection
- Use in zones with coolants and lubricants
- Difficult application conditions requiring robust sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient operation with low voltage DC supply
- Resistant to harsh environments reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now

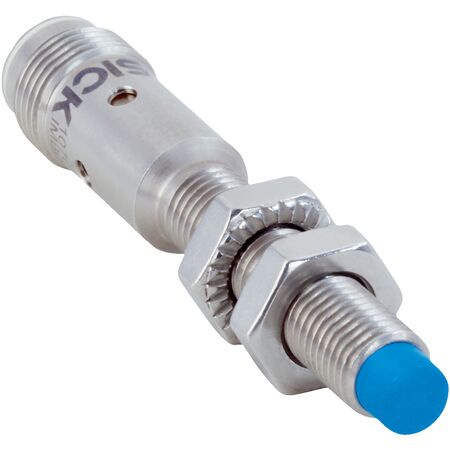

The SICK IMC08-04NPPVC0SA71 sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
