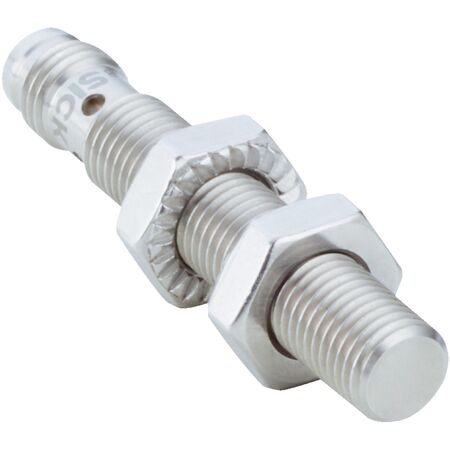

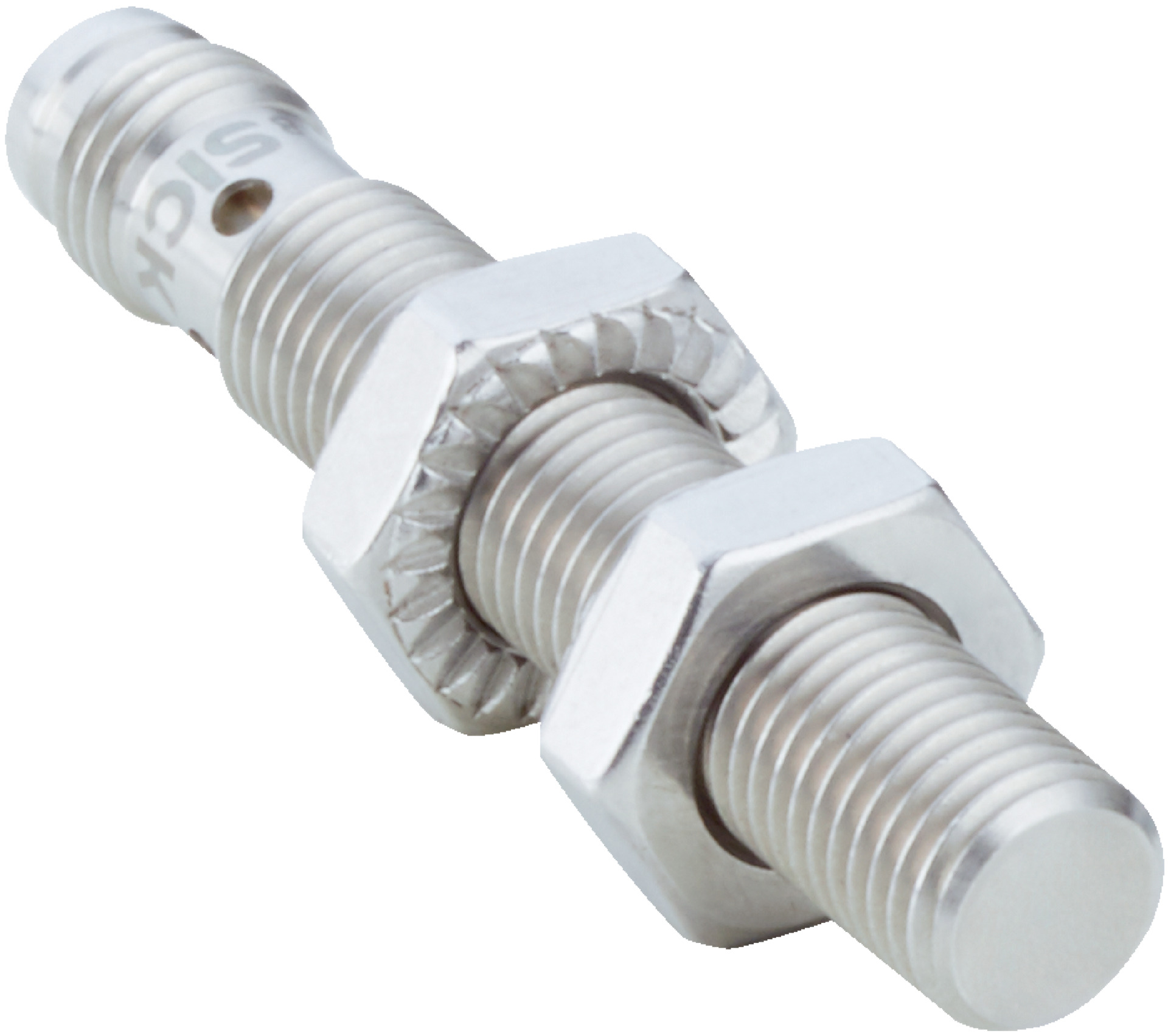

M8 Proximity Sensor | Flush Mount Inductive | IP68 & IP69K Rated | Stainless Steel | by SICK
The M8 Proximity Sensor is designed for industrial automation sensing, featuring a flush mount design and robust stainless steel housing. With an IP68 and IP69K rating, it excels in harsh environments, making it ideal for applications involving coolants and lubricants. This sensor ensures reliable detection even under difficult conditions, providing peace of mind for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 200 ms
- Hysteresis: 1% to 20%
- Reproducibility: ≤ 2%
- Temperature drift of sensing range: ≤ 10%
- EMC compliant according to EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit and power-up pulse protection included
- Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 million cycles; 10 Hz to 55 Hz, 1 mm; 55 Hz to 500 Hz / 15 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing and sensing face material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Protection class: III
- UL File No.: E181493
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric M8 x 1 housing with Ø 8 mm diameter
- Flush installation type
- Sensing range Sn of 2 mm with safe sensing range Sa of 1.62 mm
- Switching frequency of 100 Hz
- PNP switching output with NC function
- Connector M8, 3-pin connection type
- Enclosure rating IP68 and IP69K for high protection
- Sensing face made of stainless steel V2A, resistant against coolant lubricants
- Mounting nut made of V2A stainless steel with locking teeth included
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation sensing
- Detection in zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- High ingress protection (IP68, IP69K) ensures long service life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK IMI08-02BPOVT0S sensor is available for immediate purchase, ideal for industrial automation applications requiring reliable sensing in harsh environments.
