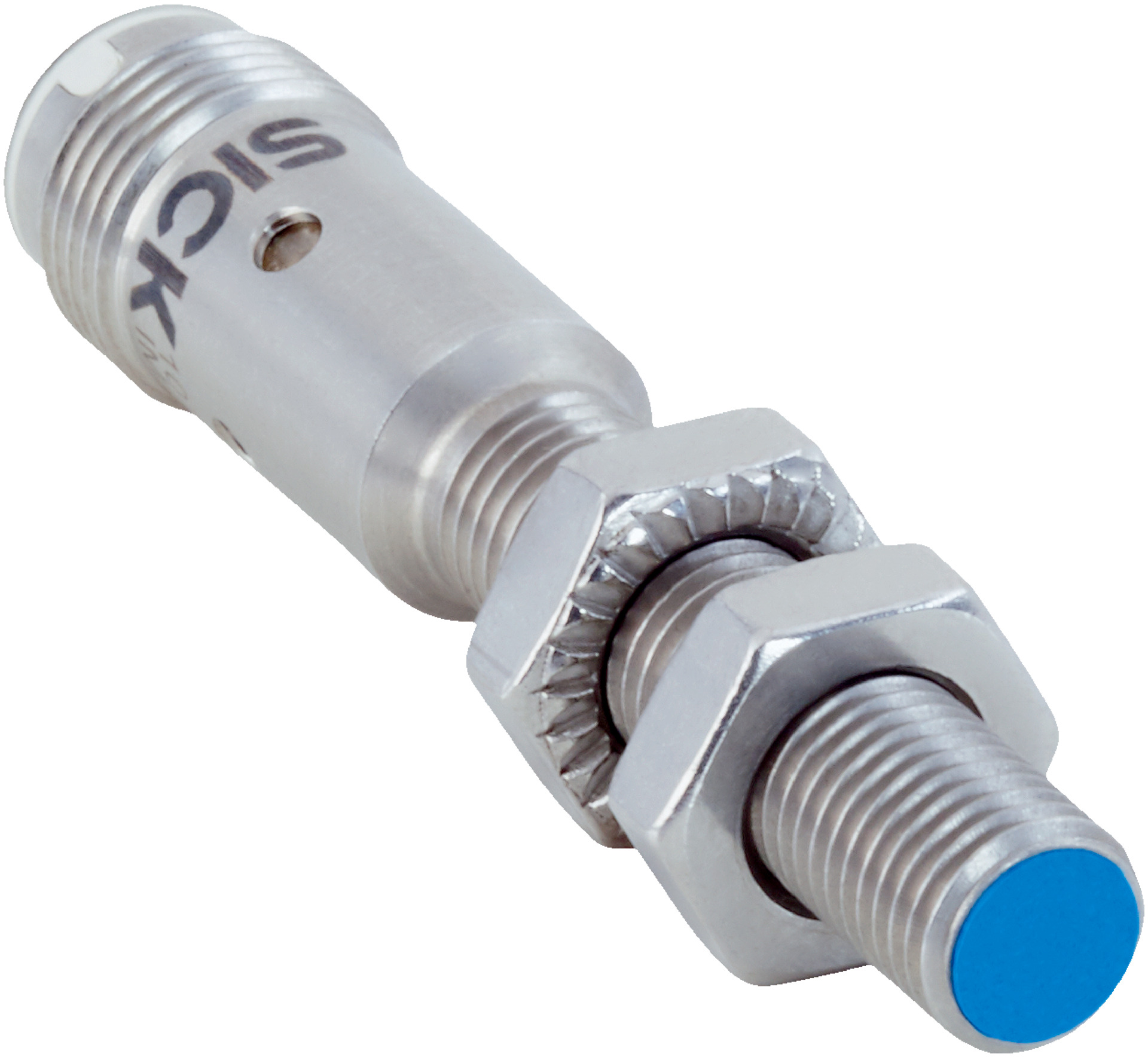

M8 Proximity Sensor | IP68 & IP69K Rated | PNP Normally Open | Flush Mount | by SICK
The M8 Proximity Sensor is designed for industrial automation, featuring an IP68 and IP69K rating for high protection against dust and water. With a sensing range of 0 mm to 2 mm and a robust stainless steel housing, it's perfect for detecting metal objects in harsh environments, including zones with coolants and lubricants. Built for durability, this sensor ensures reliable performance even under challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Hysteresis: 3% to 20%
- Reproducibility: High
- Temperature drift of sensing range: ±10%
- Continuous current Ia: ≤ 200 mA
- Shock resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 million cycles
- Vibration resistance: 10 Hz to 55 Hz / 1 mm; 55 Hz to 500 Hz / 60 g
- Ambient operating temperature: -25 °C to +75 °C
- Housing material: Stainless steel V2A (DIN 1.4305 / AISI 303)
- Sensing face material: Plastic, LCP
- Thread length: 32 mm
- Tightening torque max: 32 Nm
- Switching output: PNP normally open
- Connection type: Male connector M12, 4-pin
- Enclosure rating: IP68, IP69K
- Dimensions (H x L x W): 8mm x 60mm x 8mm
- Weight: 0.1 kg
Key Features
- Metric housing with M8 x 1 thread size
- Flush installation type
- Sensing range of 0 mm to 2 mm
- Switching frequency of 1,000 Hz
- PNP normally open switching output
- Male connector M12, 4-pin connection
- Double film sensor resistant against coolant lubricants
- Enclosure rating IP68 and IP69K for high protection
- Shock and vibration resistant with high durability
- Short-circuit and power-up pulse protection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper mounting and electrical connection according to industrial safety standards.
Applications
- Industrial automation for detecting metal objects
- Zones with coolants and lubricants
- Difficult application conditions requiring robust sensors
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- High resistance to harsh environments minimizes replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

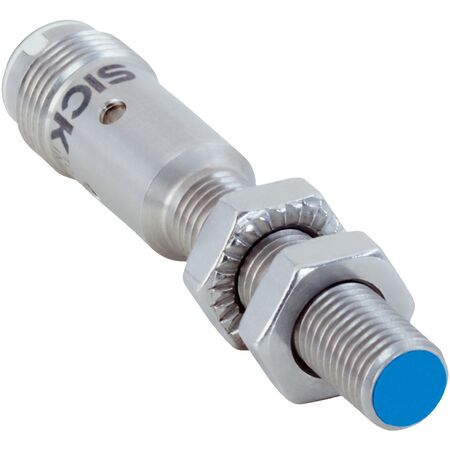

The SICK IMC08-02BPPVC0SC05 proximity sensor is available for immediate purchase, ideal for industrial automation and harsh environment sensing applications.
