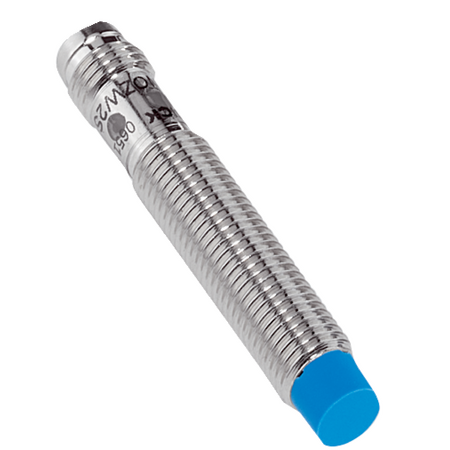

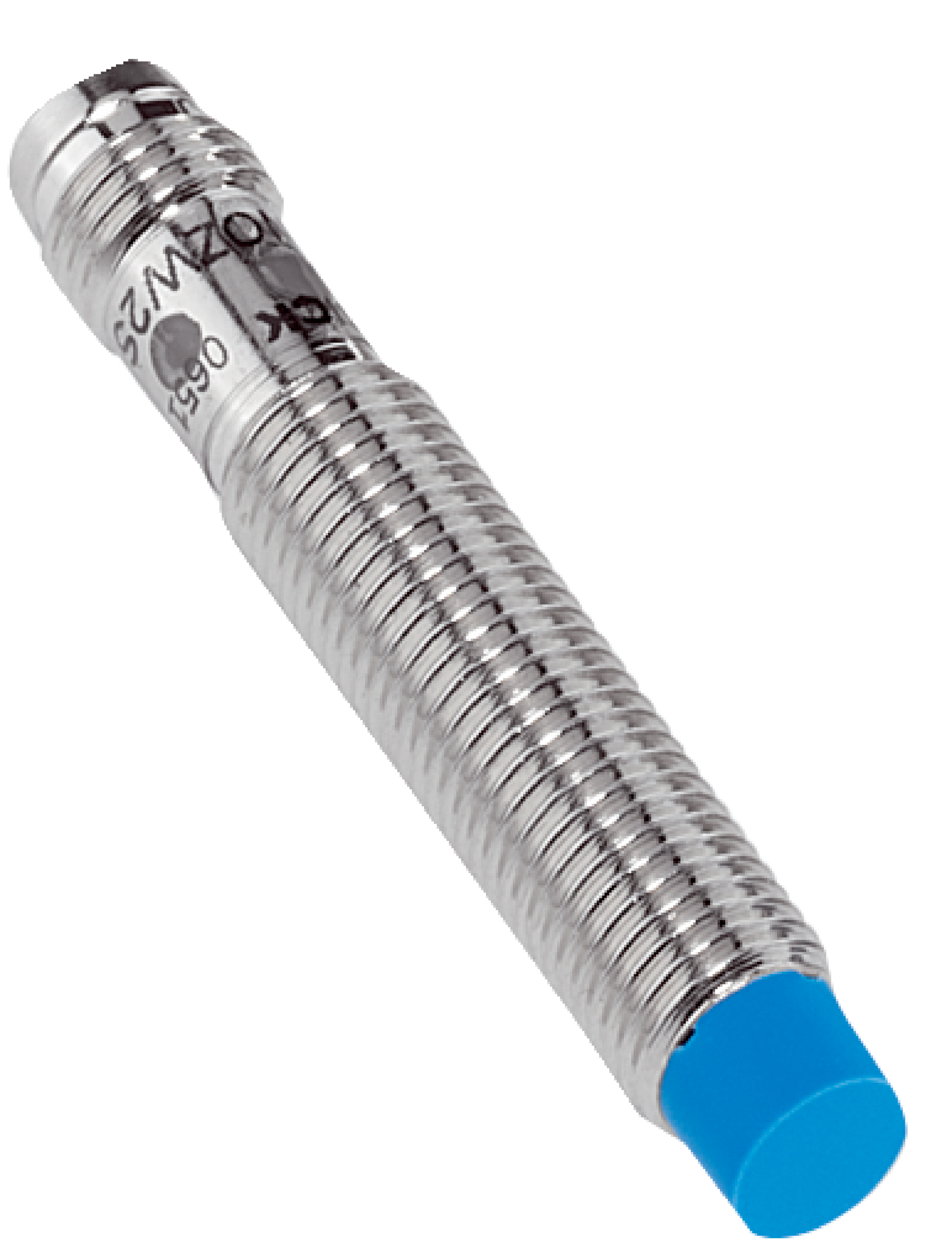

M8 Proximity Sensor | Stainless Steel Housing | 4mm Sensing Range | 4000 Hz Switching Frequency | by SICK
The M8 Proximity Sensor features a durable stainless steel housing and a sensing range of 4 mm, making it ideal for industrial automation and metal detection applications. With a high switching frequency of 4,000 Hz and an IP67 rating for dust and water protection, this sensor is built for reliable performance in harsh environments. Perfect for position sensing in machinery, it ensures robust operation and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Proximity Sensor, Stainless Steel Proximity Switch, Non-Flush Inductive Sensor, PNP Proximity Sensor M8
Technical Specifications
- Housing: Stainless steel V2A, DIN 1.4305 / AISI 303
- Thread size: M8 x 1
- Diameter: 8 mm
- Sensing range Sn: 4 mm
- Installation type: Non-flush
- Switching frequency: 4,000 Hz
- Connection type: Connector M8, 3-pin
- Switching output: PNP, Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP67
- Supply voltage: 10 V DC to 30 V DC
- Ripple: ≤ 10%
- Voltage drop: ≤ 2 V
- Time delay before availability: ≤ 100 ms
- Hysteresis: 5% to 15%
- Reproducibility: ≤ 2%
- Temperature drift of Sr: ± 10%
- EMC: EN 60947-5-2
- Continuous current Ia: ≤ 200 mA
- No load current: ≤ 10 mA
- Short-circuit protection: Yes
- Power-up pulse protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10 Hz to 55 Hz, 1 mm
- Ambient operating temperature: -25 °C to +75 °C
- Sensing face material: Plastic, PA 66
- Tightening torque max: ≤ 7 Nm
- Dimensions (H x L x W): 8mm x 46mm x 8mm
- Weight: 0.1 kg
Key Features
- Stainless steel V2A housing for durability and corrosion resistance
- Non-flush installation type with M8 x 1 thread size
- Sensing range of 4 mm with high switching frequency of 4,000 Hz
- PNP normally open output with DC 3-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Short-circuit and power-up pulse protection included
- Shock and vibration resistant up to 30 g
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Metal detection in manufacturing processes
- Position sensing in machinery
- Automation systems requiring robust sensing in harsh environments
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient sensor operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK IME08-04NPSVT0SS19 proximity sensor is available for immediate purchase, ideal for industrial automation and metal detection applications.
