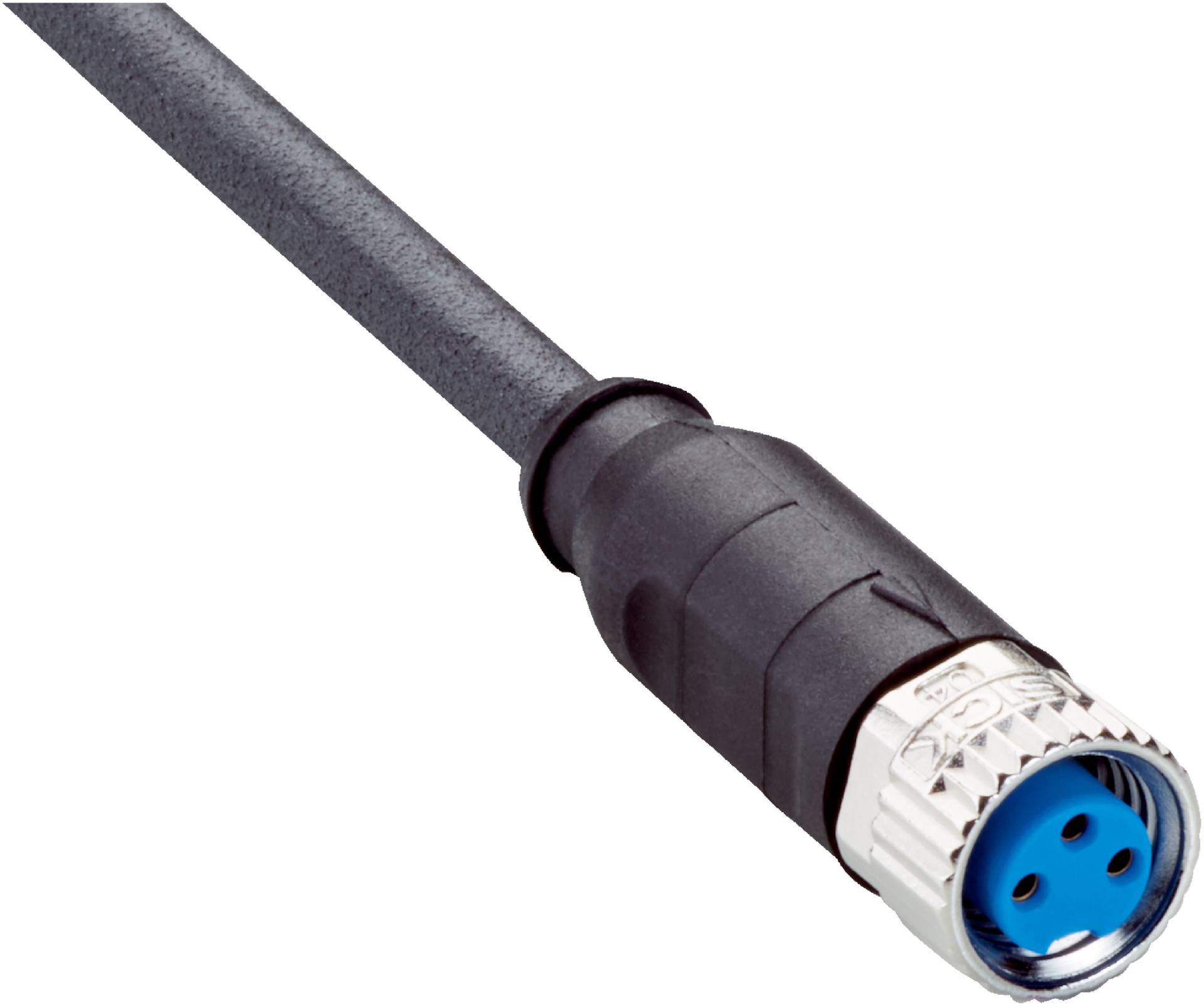

M8 Sensor Actuator Cable | 20m Length | IP65/IP66K/IP67 Rated | TPU Material | by SICK

BRAND: SICK
SKU: 2094790
$114.80 List price: $144.30
Free pick up (over 25 kg or over 1 meter)
Contact us for delivery cost
30 Days Return Electricians Unlock Trade Access
The M8 Sensor Actuator Cable is designed for robust industrial applications, featuring a 20m length and IP65/IP66K/IP67 enclosure ratings. With a female connector, 3-pin configuration, and high flexibility for drag chain operation, this cable is perfect for robotics and environments with oils and lubricants. Built with halogen-free PUR material, it ensures durability and compliance with safety standards.

Alternatively Known As: Sensor cable, Actuator cable, M8 connector cable, Industrial sensor cable, Robot cable

Technical Specifications
  • Dimensions (H x L x W): 9mm x 20000mm x 9mm
  • Weight: 0.3 kg
Key Features
  • Female connector, M8, 3-pin, straight, A-coded on head A
  • Flying leads on head B
  • Screw connection locking plug connector
  • TPU connector material with black color
  • Zinc die-cast, nickel-plated locking nut
  • FKM seal material
  • 20 m length, 3-wire PUR halogen-free cable
  • Cable diameter 4.1 mm, conductor cross section 0.25 mm²
  • Unshielded cable
  • High bending radius for flexible use, stationary position, and drag chain operation
  • Operating temperature range from -40 °C to +85 °C depending on use
  • IP65 / IP66K / IP67 enclosure rating
  • Rated for 4 A current loading and 300 V AC nominal voltage
  • Torsion force 180° per meter with 2,000,000 torsion cycles
  • Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
  • Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
  • Drag chain operation
  • Zones with oils and lubricants
  • Robotics
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Halogen-free PUR cable jacket reduces environmental impact
  • Durable materials and high bending cycles extend product life and reduce waste
Warranty Information

Standard manufacturer warranty applies; please refer to SICK's official warranty policy.

Available Now

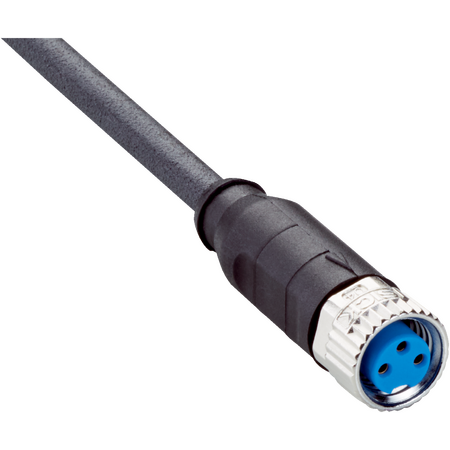

The SICK YF8U13-200UA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
