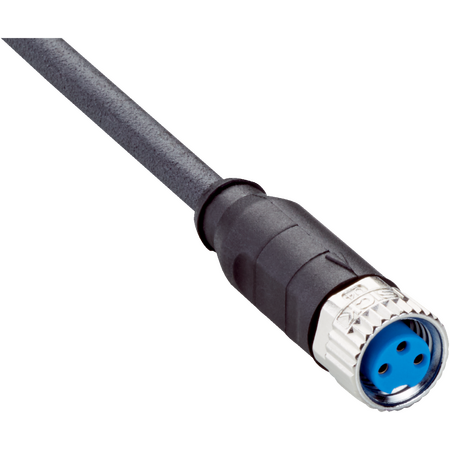

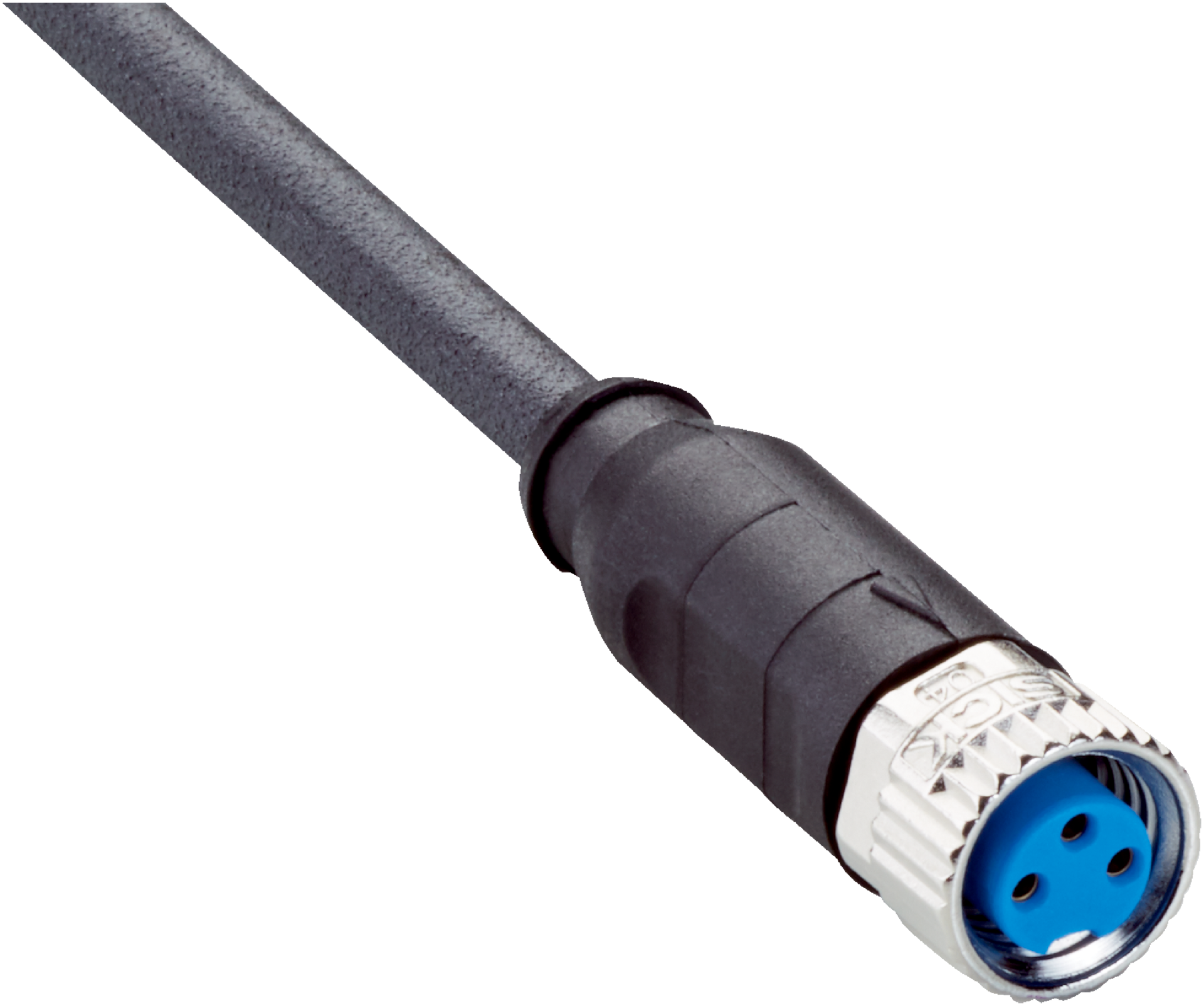

M8 Sensor Actuator Cable | 3-Pin Female Connector | 3m Length | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Actuator Cable is designed for reliable connections in industrial automation and robotics. Featuring a 3-pin female connector and a durable 3m PUR halogen-free cable, it operates effectively in temperatures from -40 °C to +85 °C. With an IP65/IP66K/IP67 enclosure rating, this cable is perfect for environments exposed to oils and lubricants, ensuring safety and compliance with electrical standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Sensor cable M8 3-pin PUR, Actuator cable PUR 3x0.25mm², SICK sensor cable, M8 connector cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 3 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Torsion force: 180° per meter
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 3000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 3 m length, 3-wire PUR halogen-free cable
- Cable diameter 4.1 mm, conductor cross section 0.25 mm²
- Unshielded cable
- High bending radius suitable for flexible use, stationary position, and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Torsion force 180° per meter with 2,000,000 torsion cycles
- Nominal voltage 300 V AC, test voltage 2,500 V AC
- Current loading 4 A
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Flame retardant materials enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YF8U13-030UA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and flexible cabling.
