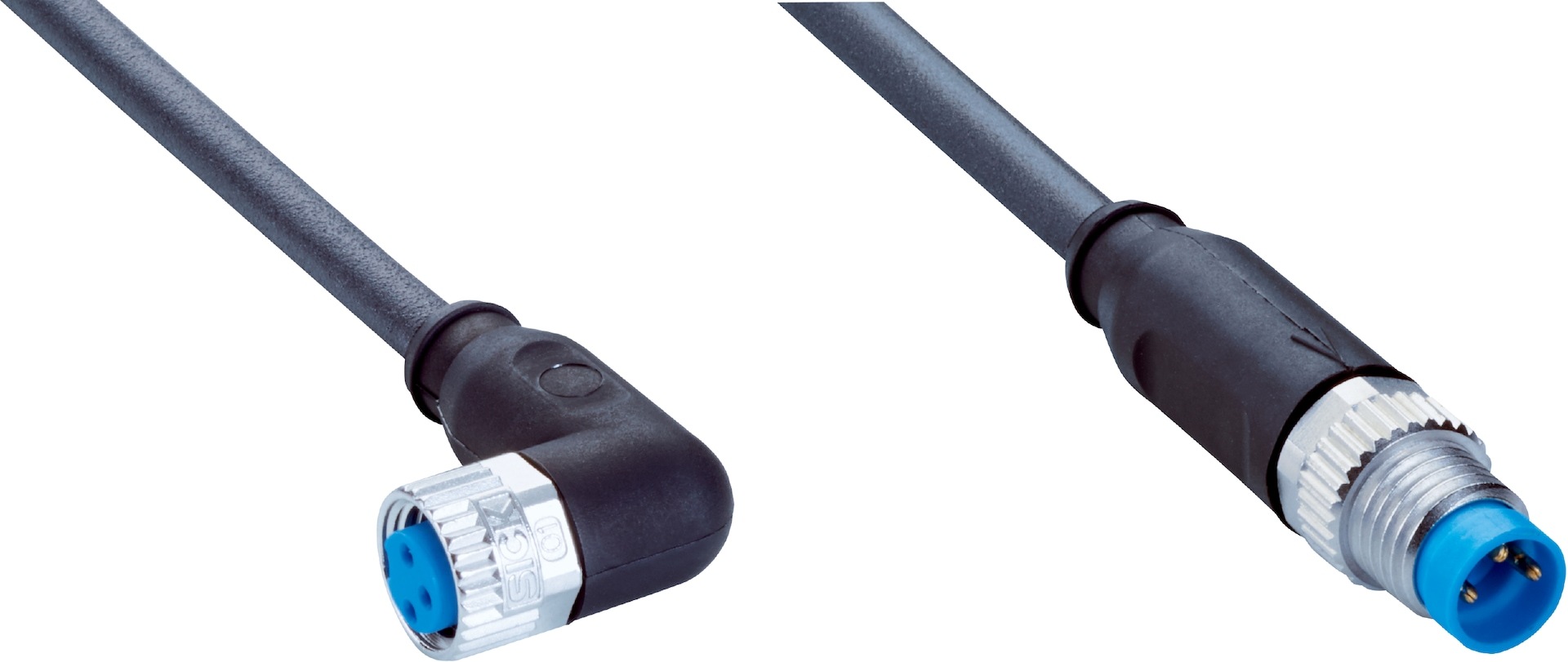

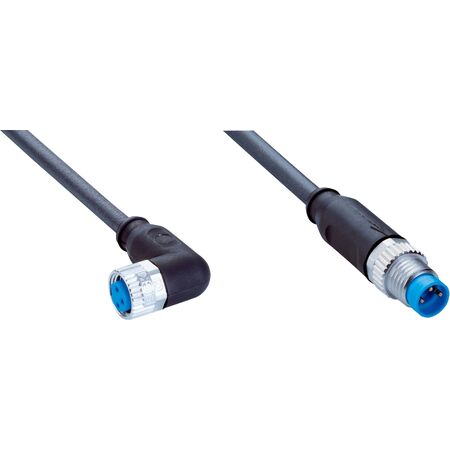

M8 Sensor/Actuator Cable | 3-Pin Female & Male Connectors | 1.5m Length | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor/Actuator Cable is designed for reliable connections in industrial automation and robotics. Featuring a 3-pin female angled and male straight connector, this 1.5m cable is halogen-free and built to withstand extreme temperatures from -40 °C to +85 °C. With an IP65/IP66K/IP67 enclosure rating and high flexibility for drag chain operation, it’s perfect for applications in uncontaminated zones and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 1.5 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 1500mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, angled, A-coded
- Male connector M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 1.5 m, 3-wire, PUR, halogen-free
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C
- IP65 / IP66K / IP67 enclosure rating
- Torsion cycles up to 2,000,000
- Current loading 4 A
- Nominal voltage 300 V AC
- Flame retardant cable according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Flame retardant materials enhance safety and reduce toxic emissions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U13-015UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
