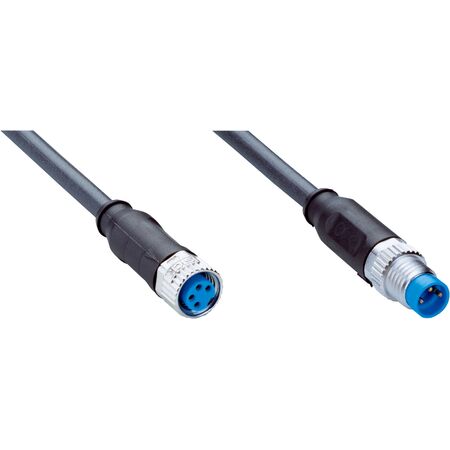

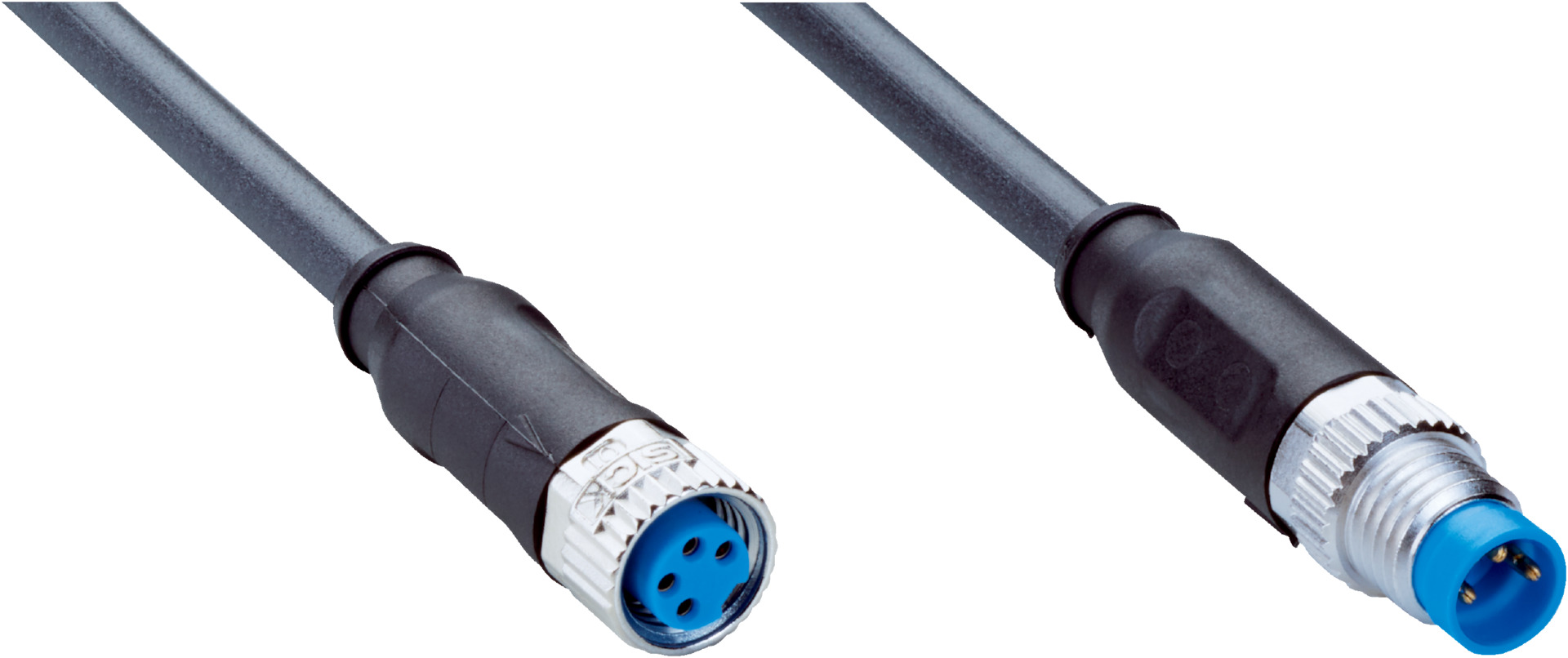

M8 Sensor/Actuator Cable | 4-Pin Female to 3-Pin Male | 3m Length | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor/Actuator Cable is designed for reliable connections in industrial automation and robotics. Featuring a 4-pin female connector and a 3-pin male connector, this 3m cable is halogen-free and built to withstand extreme temperatures from -40°C to +85°C. With an IP65/IP66K/IP67 rating, it’s perfect for use in uncontaminated zones and environments with oils and lubricants, ensuring durability and performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 3 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Operating temperature: Flexible use -25°C to +80°C, Stationary -40°C to +80°C, Drag chain -25°C to +80°C, Head -25°C to +85°C
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 15mm x 3000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 4-pin, straight, A-coded
- Male connector M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 3 m, 4-wire, PUR, halogen-free
- IP65 / IP66K / IP67 enclosure rating
- High bending radius and torsion cycles for durability
- Operating temperature range from -40°C to +85°C
- Flame retardant cable material according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact in case of fire
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF8U14-030UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
