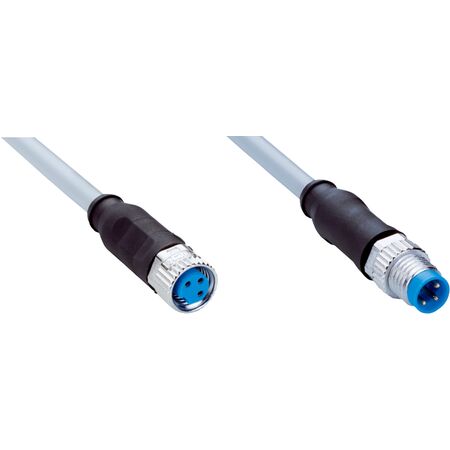

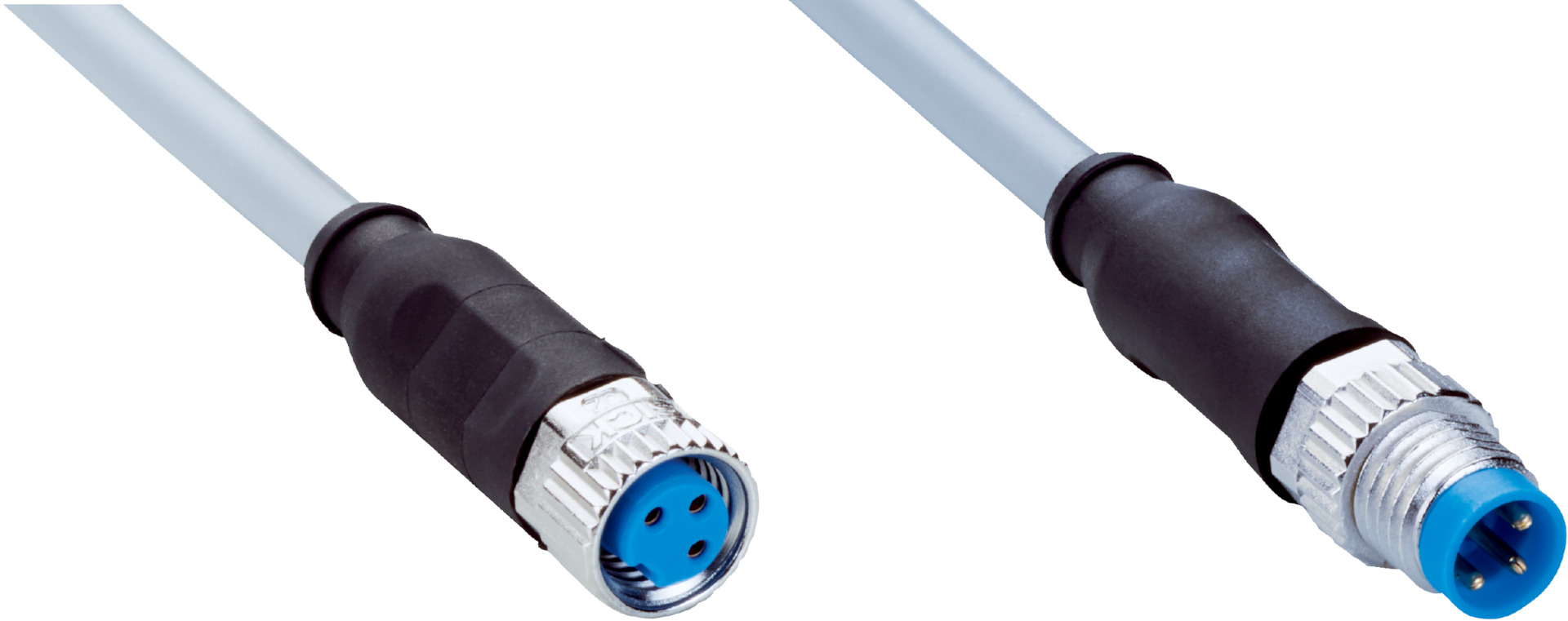

M8 Sensor Cable | 10m Length | IP65/IP66K/IP67 Rated | Durable TPU Material | by SICK
The M8 Sensor Cable is designed for reliable connections in industrial automation, featuring female and male 3-pin connectors with a secure screw locking mechanism. With a durable TPU construction and a 10m PVC jacketed cable, it operates effectively in harsh environments, making it ideal for sensor and actuator applications in chemical zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 10 m, 3-wire, PVC jacket
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Signal type: Sensor/actuator cable
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant UL 1581 VW1 / CSA FT1
- Enclosure rating: IP65 / IP66K / IP67
- Authorizations: UL, CE
- Dimensions (H x L x W): 9mm x 10000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female and male M8, 3-pin, straight A-coded connectors
- Screw locking plug connector for secure connections
- Durable TPU connector material with zinc die-cast and nickel-plated locking nuts
- PVC jacketed 10 m cable with 3 wires and 0.25 mm² conductor cross section
- Unshielded cable with bending radius suitable for flexible and stationary use
- Operating temperature range from -30 °C to +85 °C depending on use
- High insulation resistance of 100 MΩ and rated impulse voltage of 1.5 kV
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
- Contamination rating 3 and overvoltage category III
- Enclosure rating IP65 / IP66K / IP67 for harsh environments
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with chemicals requiring durable cable solutions
- Environments needing IP65/IP66K/IP67 rated cables
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable materials reduce frequent replacements and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK YF8U13-100S02M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and chemical zone applications.
