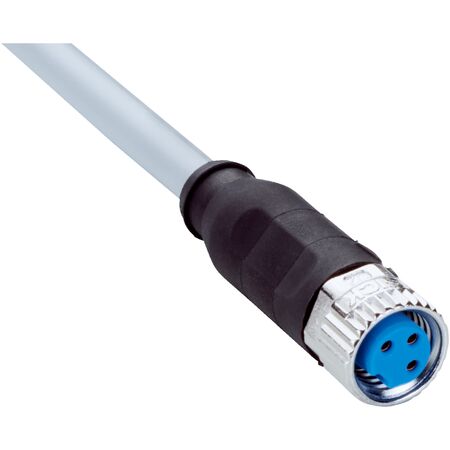

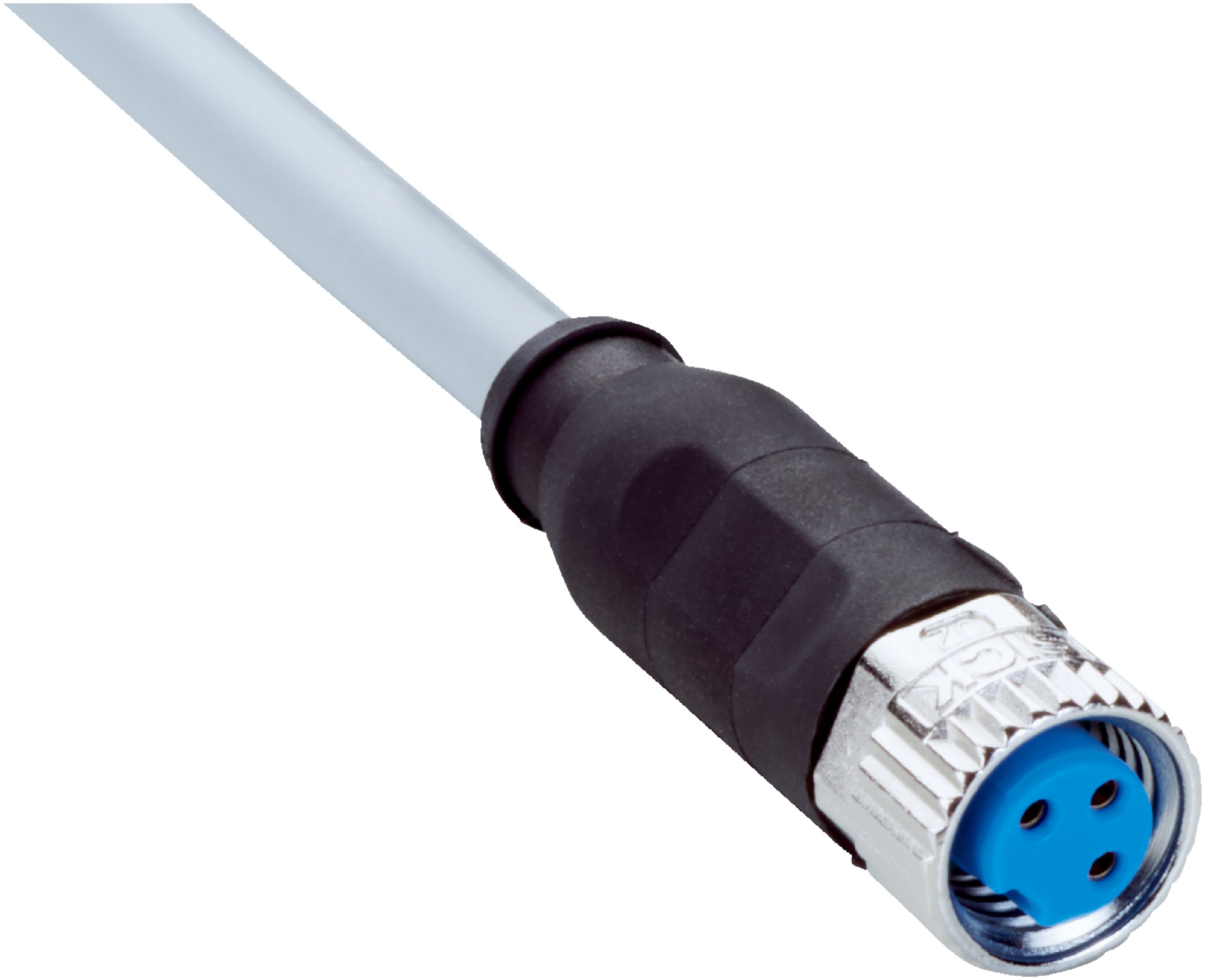

M8 Sensor Cable | 15m Length | IP65/IP66K/IP67 Rated | TPU Connector | by SICK
The M8 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 15m length with a female connector, M8, 3-pin, straight, A-coded. Built for industrial automation, this durable cable is IP65/IP66K/IP67 rated, ensuring protection against dust and water, making it ideal for use in chemical zones and uncontaminated environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Width across flats: 9 mm
- Cable length: 15 m, 3-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 15mm x 15000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM
- Cable length 15 m, 3-wire, PVC jacket
- Unshielded cable with 0.25 mm² conductor cross section
- Bending radius flexible use > 10 x cable diameter, stationary position > 5 x cable diameter
- Operating temperature flexible use –5 °C to +80 °C, stationary position –30 °C to +80 °C, head –25 °C to +85 °C
- Enclosure rating IP65 / IP66K / IP67
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper and safe operation.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials enhance safety and reduce fire risk.
- Durable construction reduces need for frequent replacements, minimizing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF8U13-150VA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
