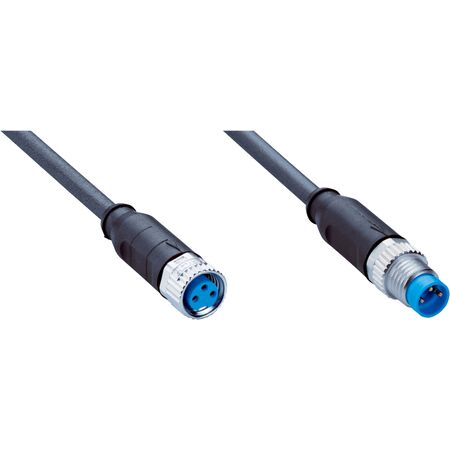

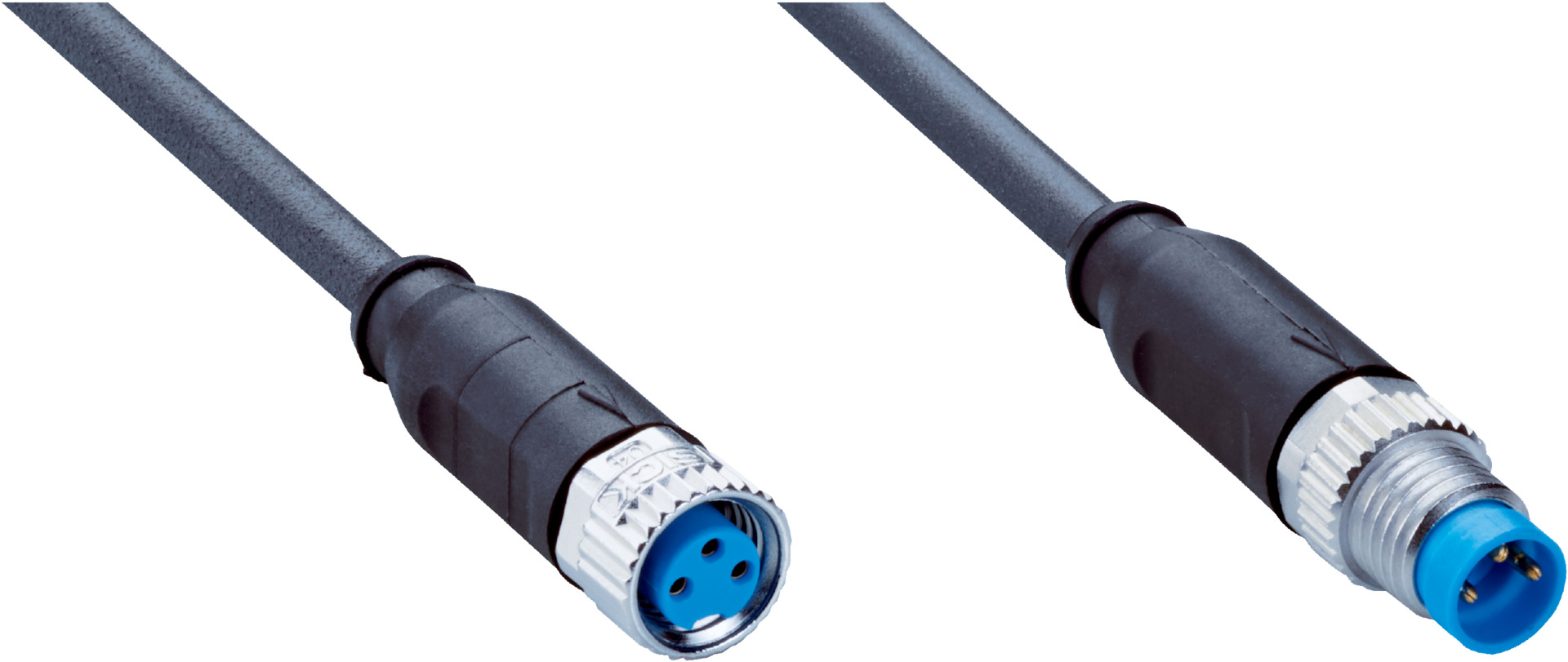

M8 Sensor Cable | 3-Pin A-Coded Connectors | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable features 3-pin A-coded connectors, designed for reliable connections in industrial automation and robotics applications. With a durable halogen-free PUR jacket and an IP65/IP66K/IP67 enclosure rating, this cable is perfect for use in uncontaminated zones and environments with oils and lubricants, ensuring long-lasting performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 9mm x 150mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded
- Male connector, M8, 3-pin, straight, A-coded
- Screw connection locking plug connector
- Connector material: TPU with black color
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Cable: 0.15 m, 3-wire, PUR, halogen-free, black jacket
- Cable diameter: 4.1 mm, conductor cross section: 0.25 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use), -40 °C to +80 °C (stationary), -25 °C to +85 °C (head)
- IP65 / IP66K / IP67 enclosure rating
- Nominal voltage: 300 V AC, Test voltage: 2,500 V AC
- Current loading: 4 A
- Torsion force: 180° / 1 m with 2,000,000 torsion cycles
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable jacket reduces environmental impact during disposal
- Durable materials and high bending and torsion cycle resistance extend product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF8U13-C15UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
