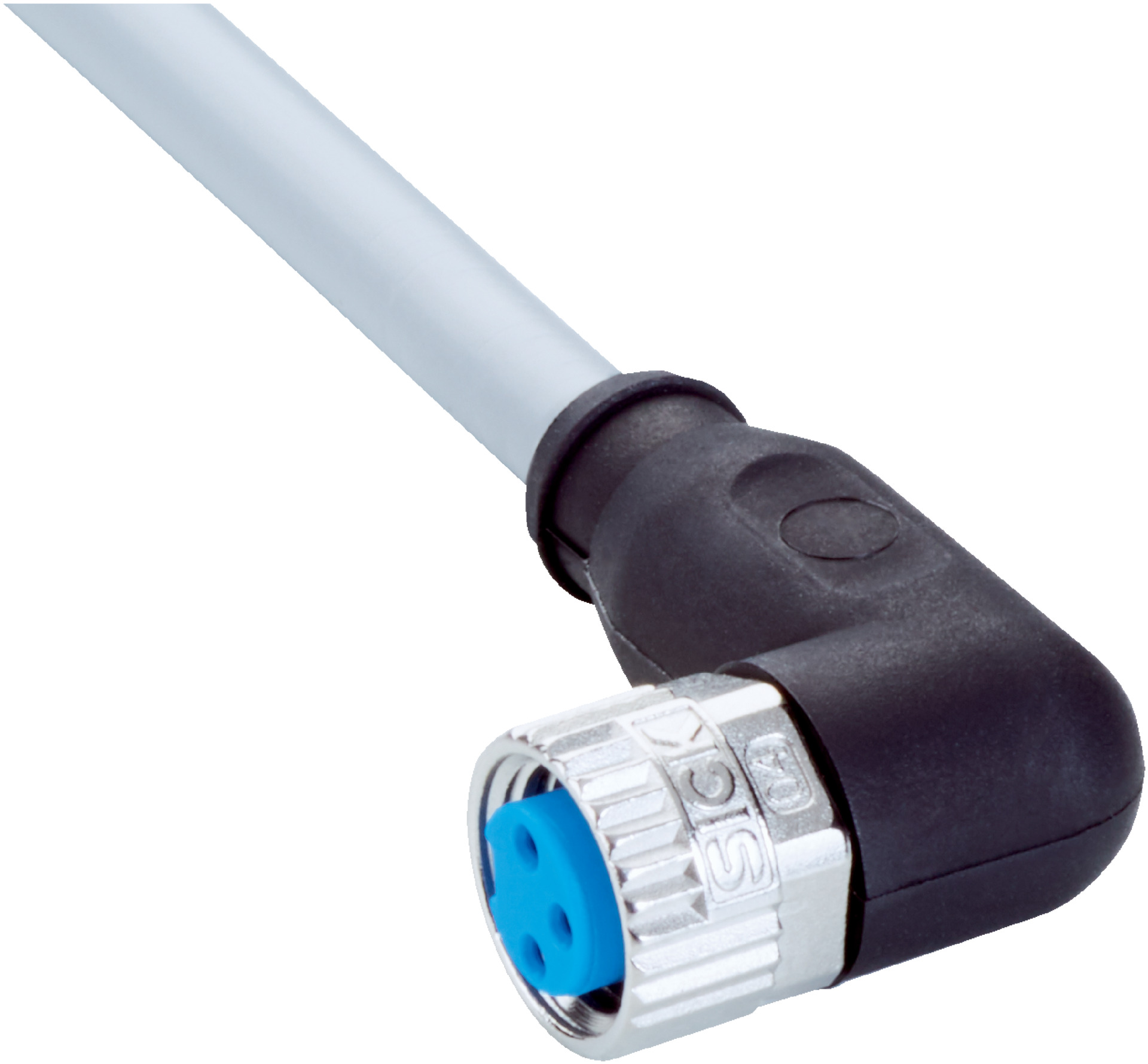

M8 Sensor Cable | 3-Pin Female Connector | 5m Length | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 3-pin female connector and a durable 5m PVC jacket. With an IP65/IP66K/IP67 enclosure rating, it's perfect for use in industrial automation and environments with chemicals, ensuring optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m, 3-wire, PVC jacket
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage: 300 V AC
- Test voltage: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 15mm x 50mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded
- Flying leads connection
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material: FKM
- Cable length: 5 m, 3-wire, PVC jacket
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Current loading: 4 A
- Flame retardant cable according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with safety standards and proper connection.
Applications
- Suitable for zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant cable reduces fire hazards and environmental damage.
- Durable materials extend product life and reduce waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

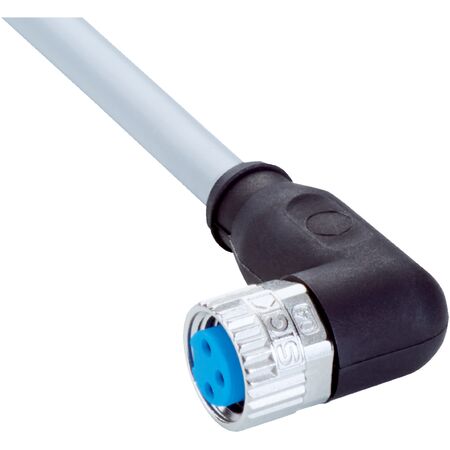

The SICK YG8U13-050VA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
