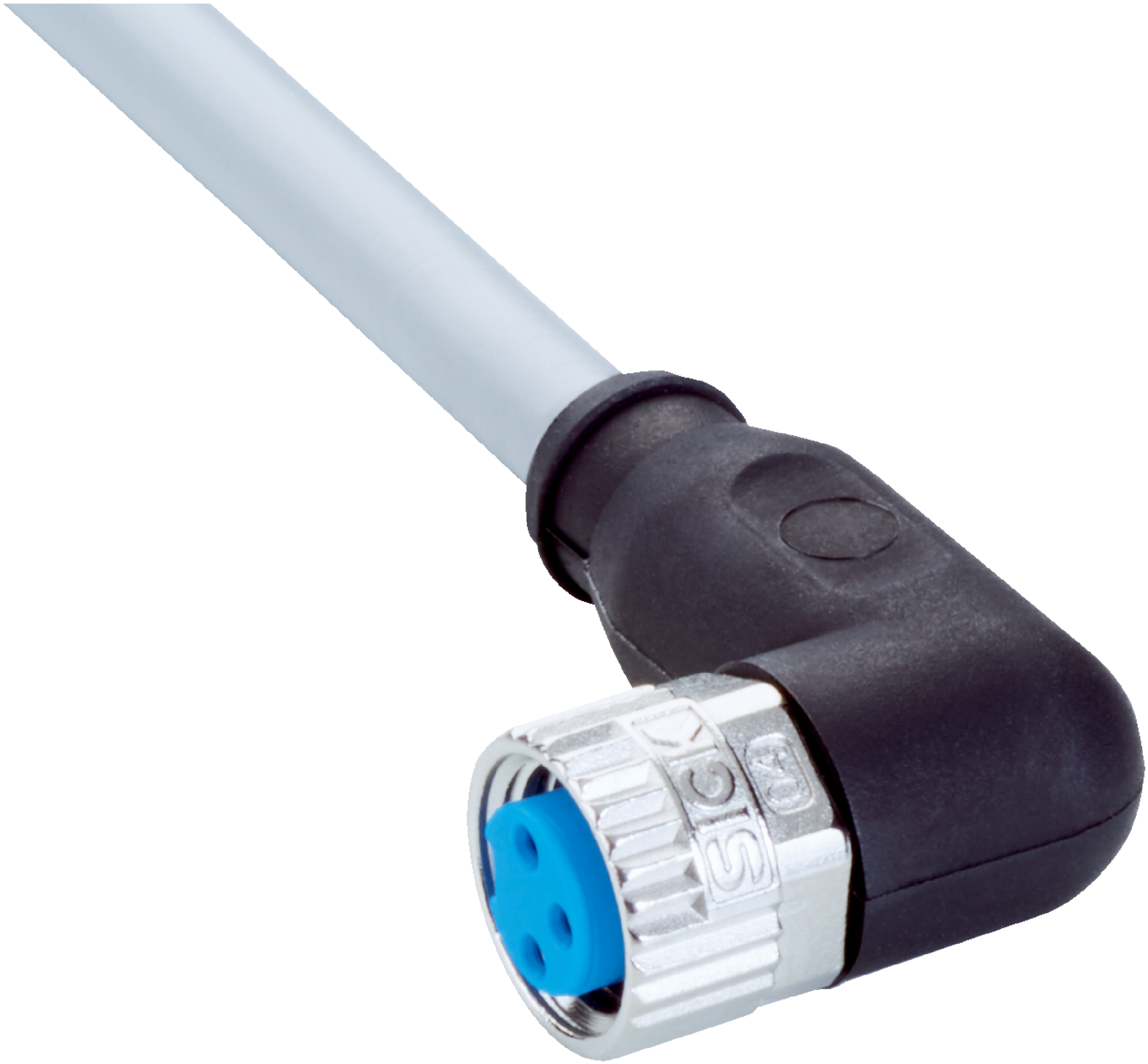

M8 Sensor Cable | 3-Pin Female Connector | 2m Length | IP65/IP66/IP67 Rated | by SICK
The M8 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 3-pin female connector and a durable 2m PVC jacket. Ideal for industrial automation applications, this cable offers excellent performance in uncontaminated zones and environments with chemicals, ensuring safety with its IP65/IP66/IP67 enclosure rating and flame retardant properties.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8 3-pin, SICK Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Width across flats: 9 mm
- Cable length: 2 m, 3-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 20mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for durability
- Cable length 2 m, 3-wire, PVC jacket in gray
- Unshielded cable with 0.25 mm² conductor cross section
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Suitable for use in uncontaminated zones
- Zones with chemicals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements, minimizing waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

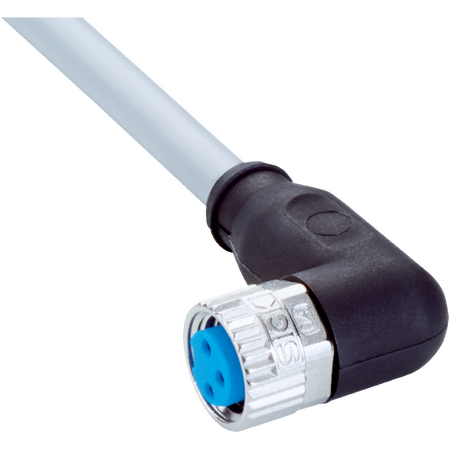

The SICK YG8U13-020VA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
