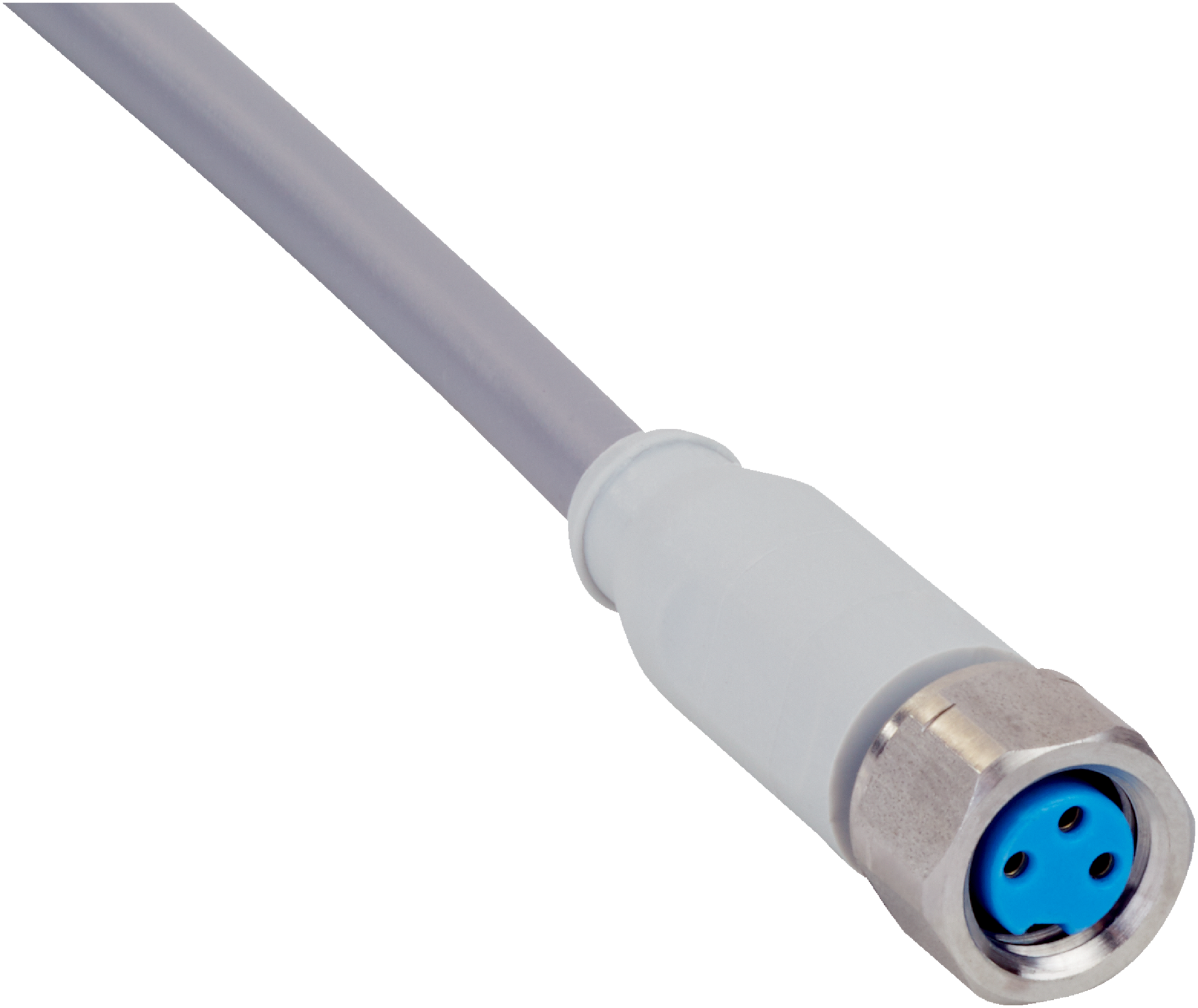

M8 Sensor Cable | 3-Pin Female Connector | PUR Material | IP65/IP67/IP69K Rated | by SICK
The M8 Sensor Cable is designed for reliable connections in industrial automation, featuring a 3-pin female connector and durable PUR material. With a robust IP65/IP67/IP69K rating, it's perfect for hygienic and washdown zones, ensuring long-lasting performance even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable with M8 Connector, PUR Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Connector color: Blue
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.4 Nm
- Cable length: 10 m, 3-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Reference voltage: ≤ 60 V
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Dimensions (H x L x W): 10mm x 10000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight on head A
- Flying leads on head B
- Connector material made of PUR with blue color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length 10 m, 3-wire, PVC jacket in gray
- Cable diameter 4.5 mm with conductor cross section 0.25 mm²
- Unshielded sensor/actuator cable
- High bending radius for flexible use and stationary position
- Operating temperature range from -30 °C to +85 °C depending on use
- Enclosure rating IP65/IP67/IP69K for robust protection
- UL File No. CYJV.E335179
- Chemical resistant to ECOLAB cleaning agents except lactic acid and hydrogen peroxide
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections to ensure proper electrical and mechanical integration.
Applications
- Uncontaminated zones
- Hygienic and washdown zones
- Zones with chemicals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable materials extend product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

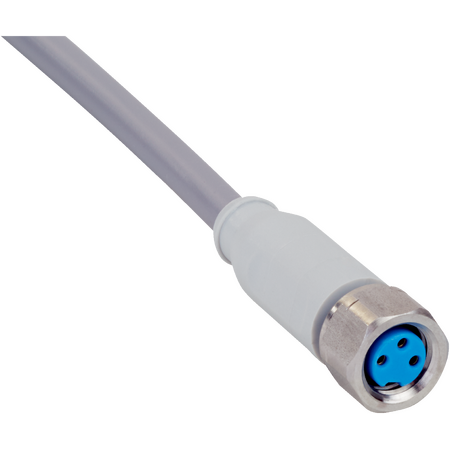

The SICK DOL-0803-G10MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
