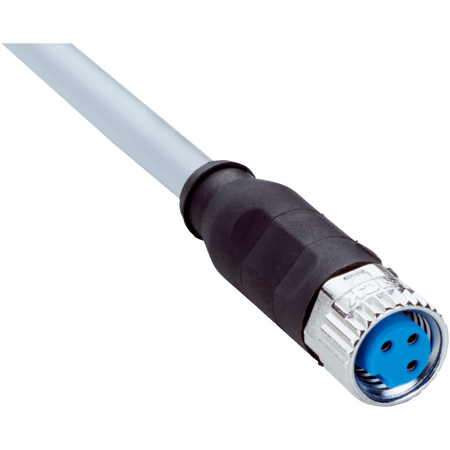

M8 Sensor Cable | 3-Wire PVC | IP65/IP66K/IP67 Rated | 10m Length | by SICK
The M8 Sensor Cable is a robust 3-wire PVC cable designed for reliable sensor and actuator connections in industrial applications. With a length of 10 meters and an IP65/IP66K/IP67 rating, it ensures durability in various environments. Ideal for use in uncontaminated zones and areas with chemicals, this cable features a female connector, screw connection locking plug, and flame retardant properties for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable PVC 3-wire, SICK Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 10 m, 3-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 9mm x 10000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for durability
- Cable length 10 m, 3-wire PVC jacket in gray
- Cable diameter 4.5 mm with 0.25 mm² conductor cross section
- Unshielded cable design
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
- Sensor and actuator cable applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YF8U13-100VA1XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial and automation applications requiring reliable sensor connections.
