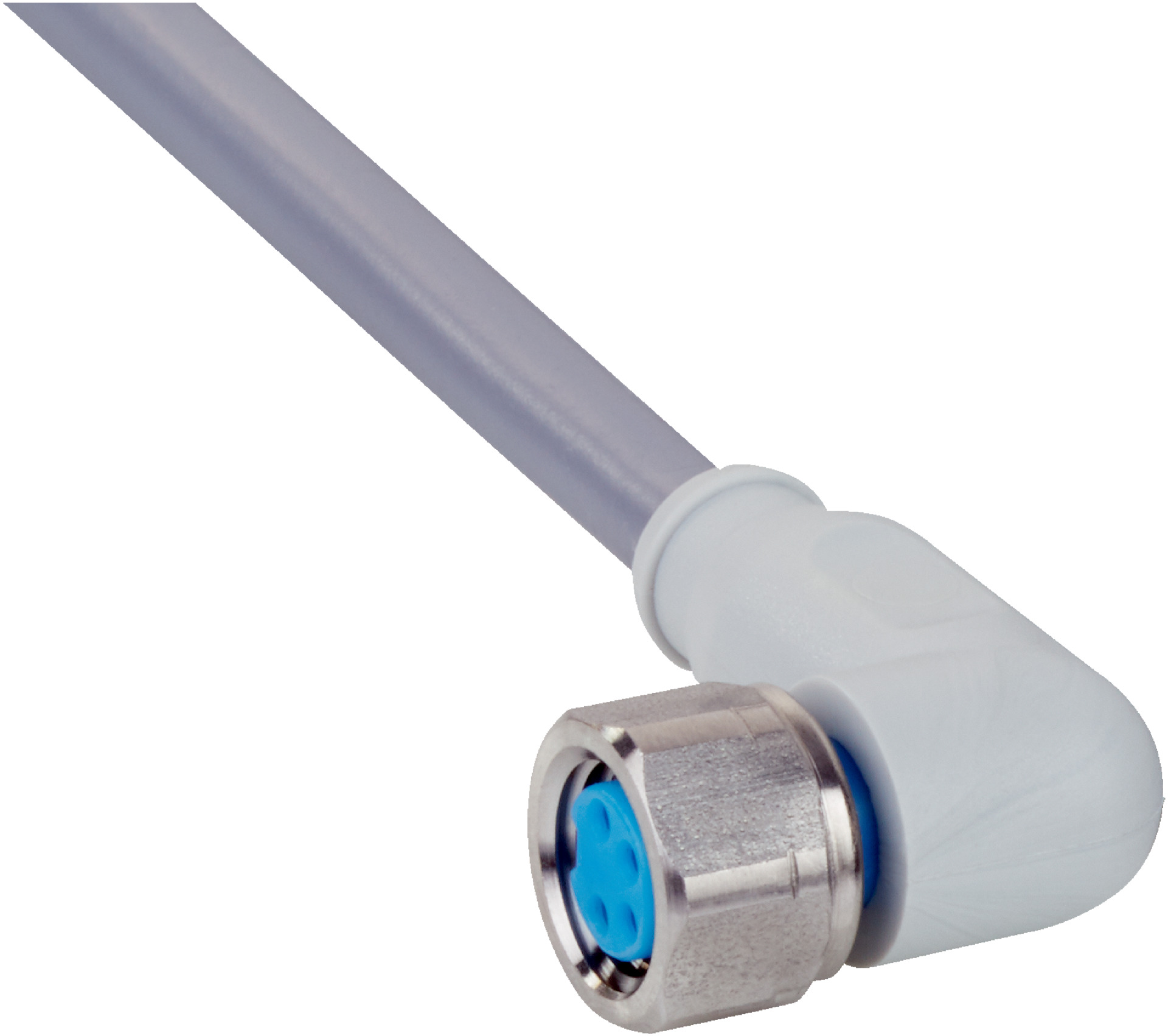

M8 Sensor Cable | 4-Pin Angled Female Connector | IP65/IP67/IP69K Rated | 2m Length | by SICK
The M8 Sensor Cable is designed for robust sensor and actuator connections in hygienic and washdown zones. Featuring a 4-pin angled female connector and a durable PUR material, this cable ensures reliable performance in industrial environments. With an impressive IP65/IP67/IP69K enclosure rating and a flexible operating temperature range from -5 °C to +80 °C, it’s perfect for applications requiring chemical resistance and high durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.4 Nm
- Cable length: 2 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Rated impulse voltage: 0.8 kV
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled
- Flying leads connection type
- Connector material made of PUR with blue color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length of 2 meters with 4-wire PVC jacket
- Unshielded sensor/actuator cable
- High enclosure rating: IP65, IP67, and IP69K
- Chemical resistant to cleaning agents certified by ECOLAB
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Suitable for hygienic and washdown zones in industrial environments
- Ideal for sensor and actuator connections requiring robust and chemical-resistant cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces the need for frequent replacements, minimizing waste
- Durable materials extend product life, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now

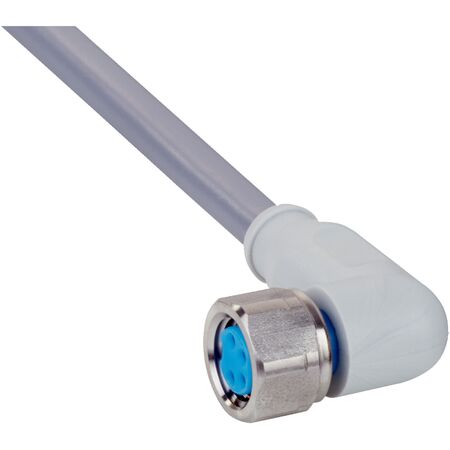

The SICK DOL-0804-W02MNI sensor/actuator cable is available for immediate purchase, ideal for industrial applications requiring hygienic and washdown zone compliance.
