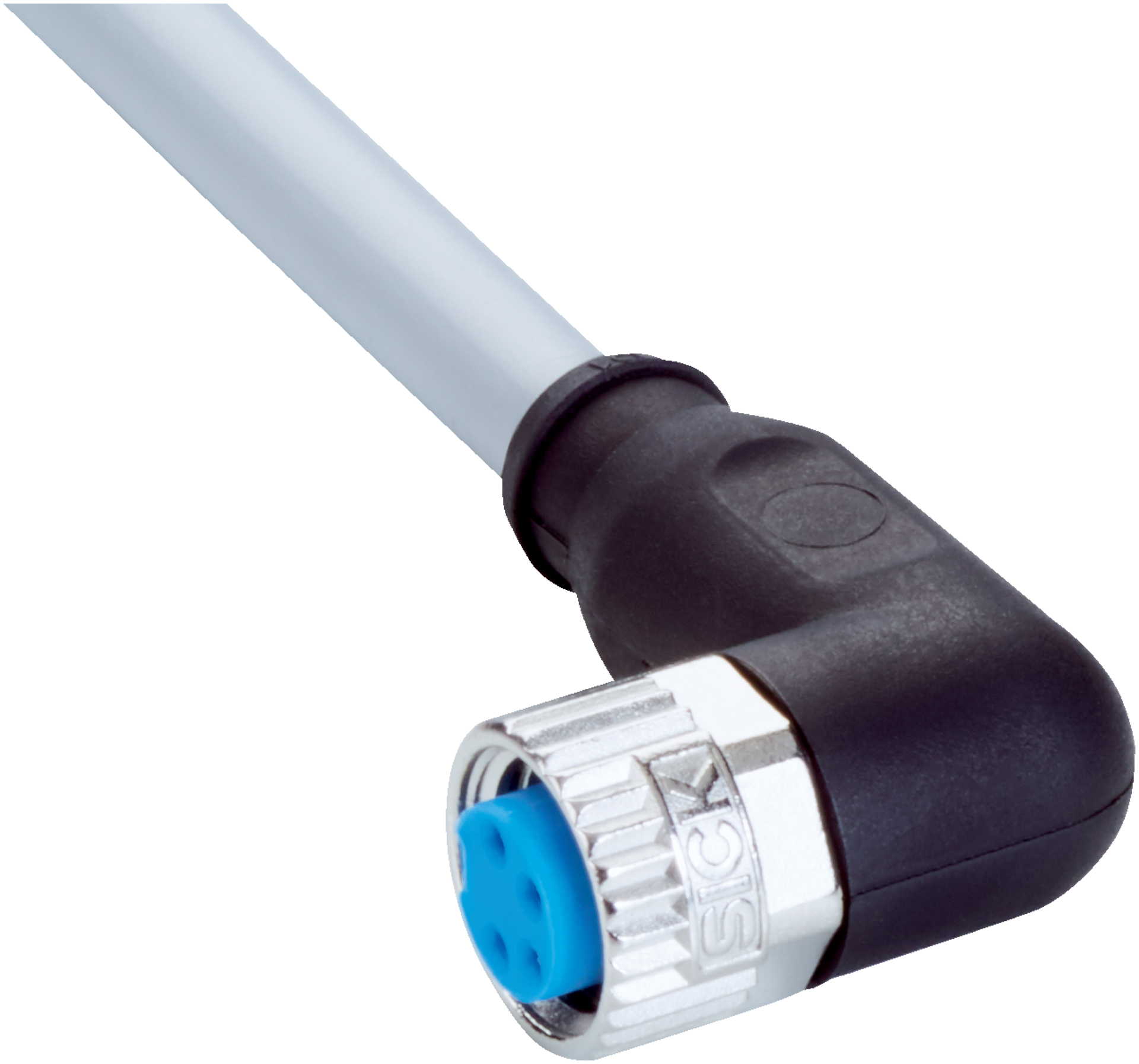

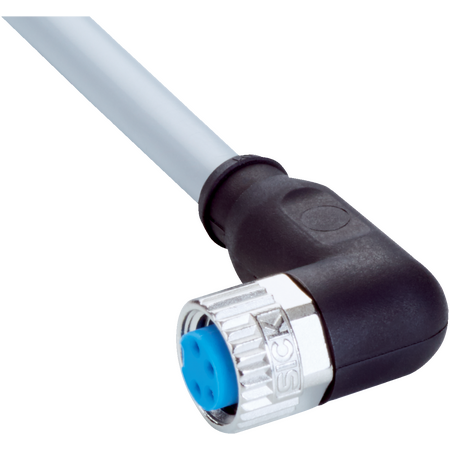

M8 Sensor Cable | 4-Pin Female Connector | 10m PVC Jacket | IP65 Rated | by SICK
The M8 Sensor Cable is designed for reliable connections in industrial applications, featuring a 4-pin female connector and a durable 10m PVC jacket. Ideal for sensor and actuator connections in uncontaminated and chemical zones, this cable ensures high performance with an IP65 rating and a nominal voltage of 300 V AC.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable 4-pin, PVC Sensor Cable, SICK Sensor Cable 10m
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Connector color: Black
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 10 m, 4-wire, PVC
- Jacket material: PVC
- Jacket color: Gray
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 9mm x 10000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for durability
- Cable length 10 m, 4-wire PVC jacket in gray
- Cable diameter 4.8 mm with 0.25 mm² conductor cross section
- Unshielded cable design
- Bending radius: Flexible use > 10x cable diameter, Stationary position > 5x cable diameter
- Operating temperature range: Flexible use -5°C to +80°C, Stationary position -30°C to +80°C, Head -25°C to +85°C
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with electrical standards and safety regulations.
Applications
- Use in uncontaminated zones
- Suitable for zones with chemicals
- Sensor and actuator cable applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant cable reduces fire risk and environmental damage
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YG8U14-100VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in uncontaminated and chemical zones.
