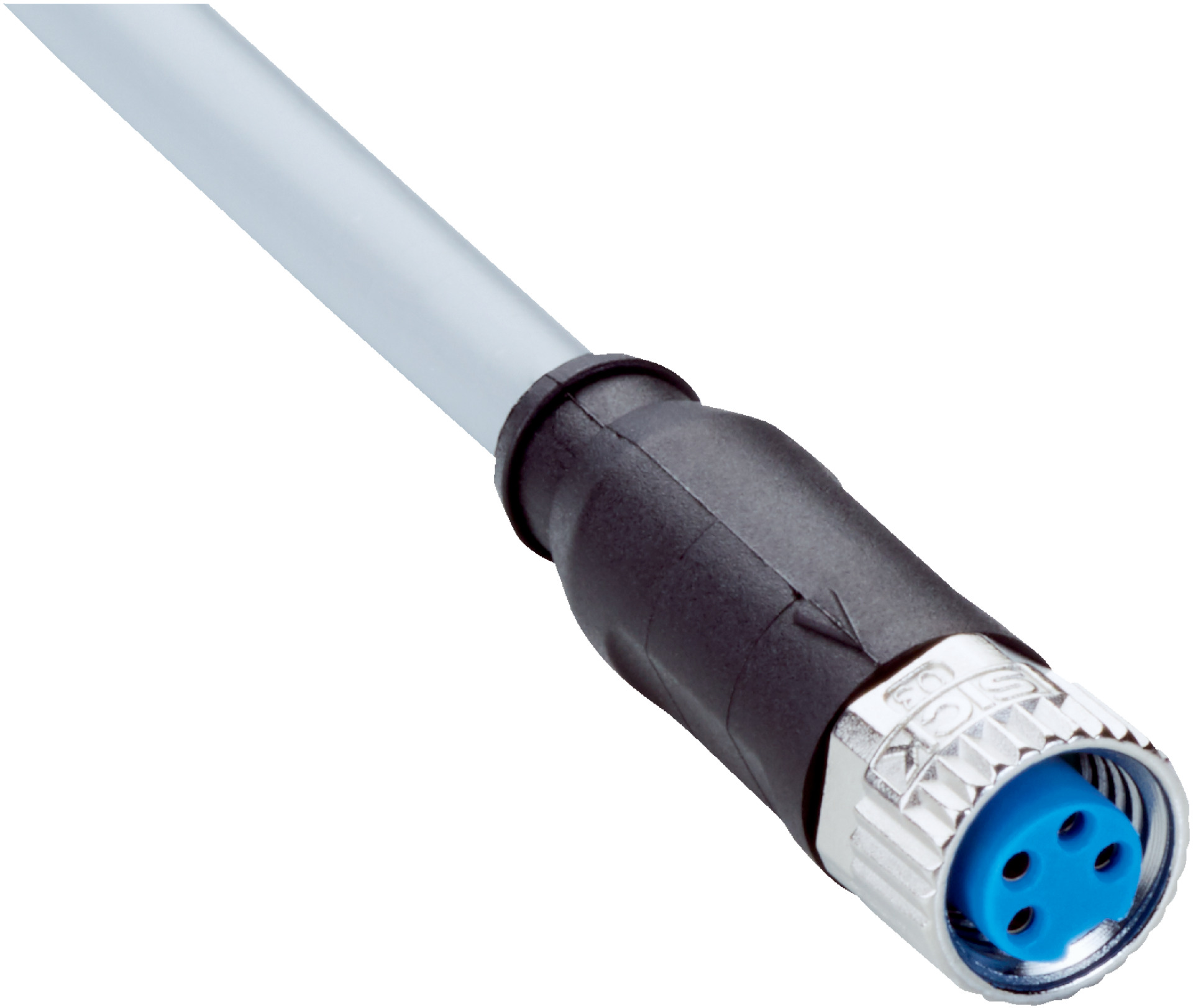

M8 Sensor Cable | 4-Pin Female Connector | 15m PVC Jacket | IP65 Rated | by SICK
The M8 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 4-pin female connector and a durable 15m PVC jacket. Ideal for industrial automation applications, this cable ensures high performance with an IP65 rating, making it suitable for use in zones with chemicals and uncontaminated environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 15 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: –5 °C to +80 °C
- Operating temperature stationary position: –30 °C to +80 °C
- Operating temperature head: –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 15mm x 15000mm x 9mm
- Weight: 0.2 kg
Key Features
- Female connector, M8, 4-pin, straight, A-coded
- Flying leads with screw connection locking plug
- Connector made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for durability
- Cable length 15 m, 4-wire PVC jacket in gray
- Cable diameter 4.8 mm with conductor cross section 0.25 mm²
- Unshielded cable design
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical standards.
Applications
- Zones with chemicals
- Uncontaminated zones
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK YF8U14-150VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
