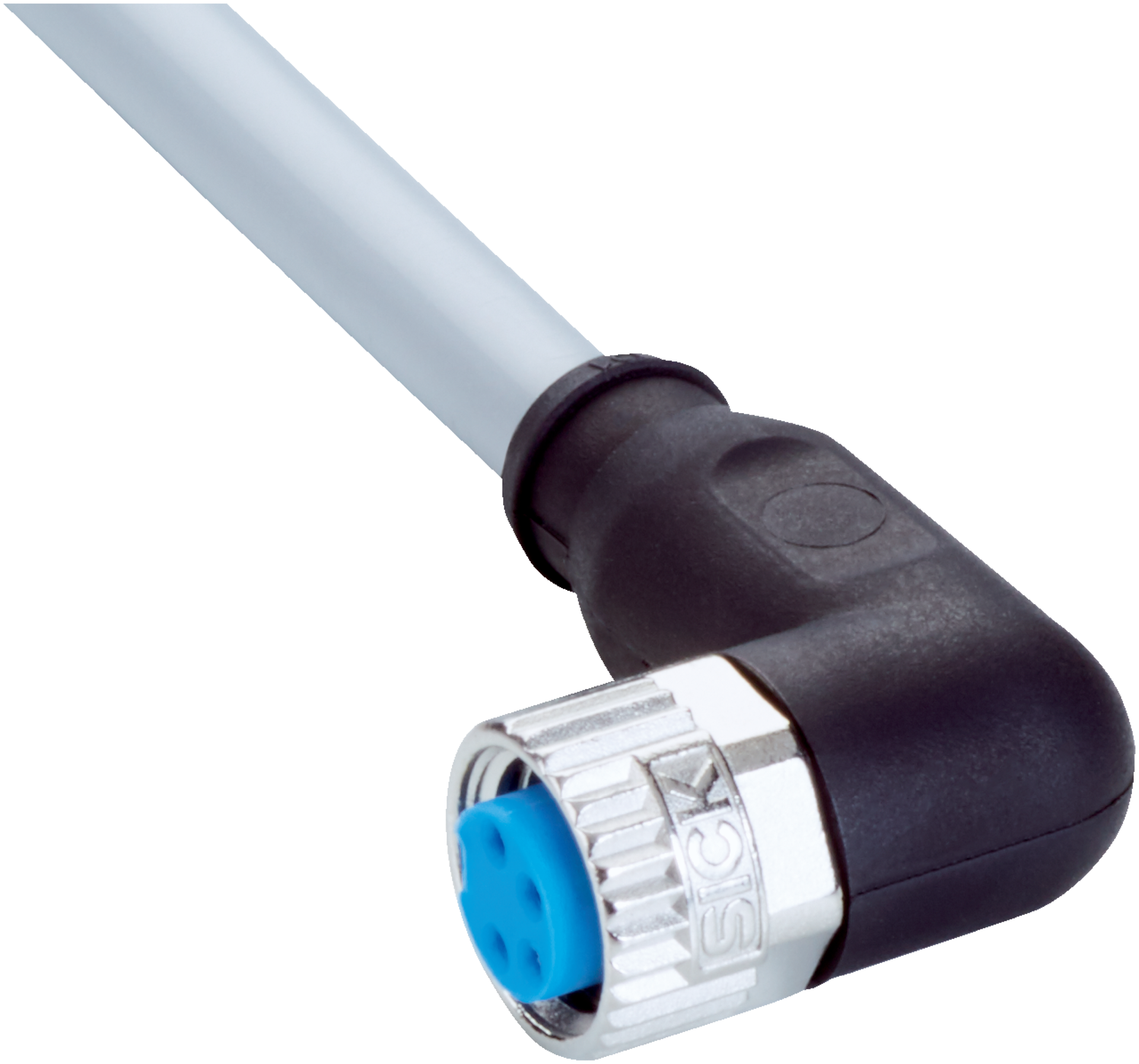

M8 Sensor Cable | 4-Pin Female Connector | 5m Length | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable is designed for reliable connections in industrial environments, featuring a 4-pin female connector and a durable 5m PVC jacket. Ideal for sensor and actuator applications, this cable offers robust protection with an IP65/IP66K/IP67 rating, ensuring performance in both uncontaminated and chemical zones.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8 4-pin, Industrial Sensor Cable, SICK Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, angled, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 5 m, 4-wire, PVC
- Jacket material: PVC
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Nominal voltage, cable: 300 V AC
- Test voltage, cable: 2,000 V AC
- Reference voltage: 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance, piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 15mm x 50mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, angled, A-coded on head A
- Flying leads on head B
- Screw connection locking plug connector
- Connector material made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Seal material FKM for enhanced sealing
- Cable length 5 m, 4-wire, PVC jacket in gray color
- Unshielded cable with 0.25 mm² conductor cross section
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Nominal voltage 300 V AC, test voltage 2,000 V AC
- Current loading 4 A
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Suitable for use in uncontaminated zones and zones with chemicals
- Ideal for sensor and actuator cable connections in industrial environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials reduce fire risk and environmental damage
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

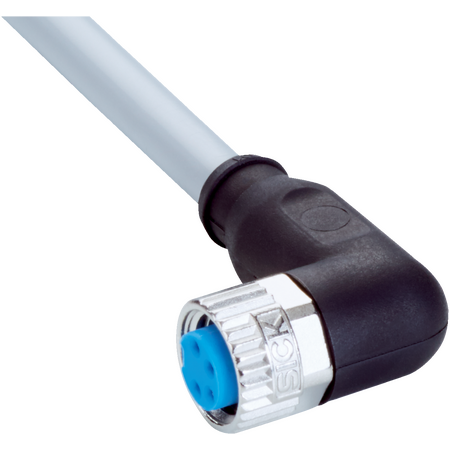

The SICK YG8U14-050VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial sensor and actuator connections in chemical and uncontaminated zones.
