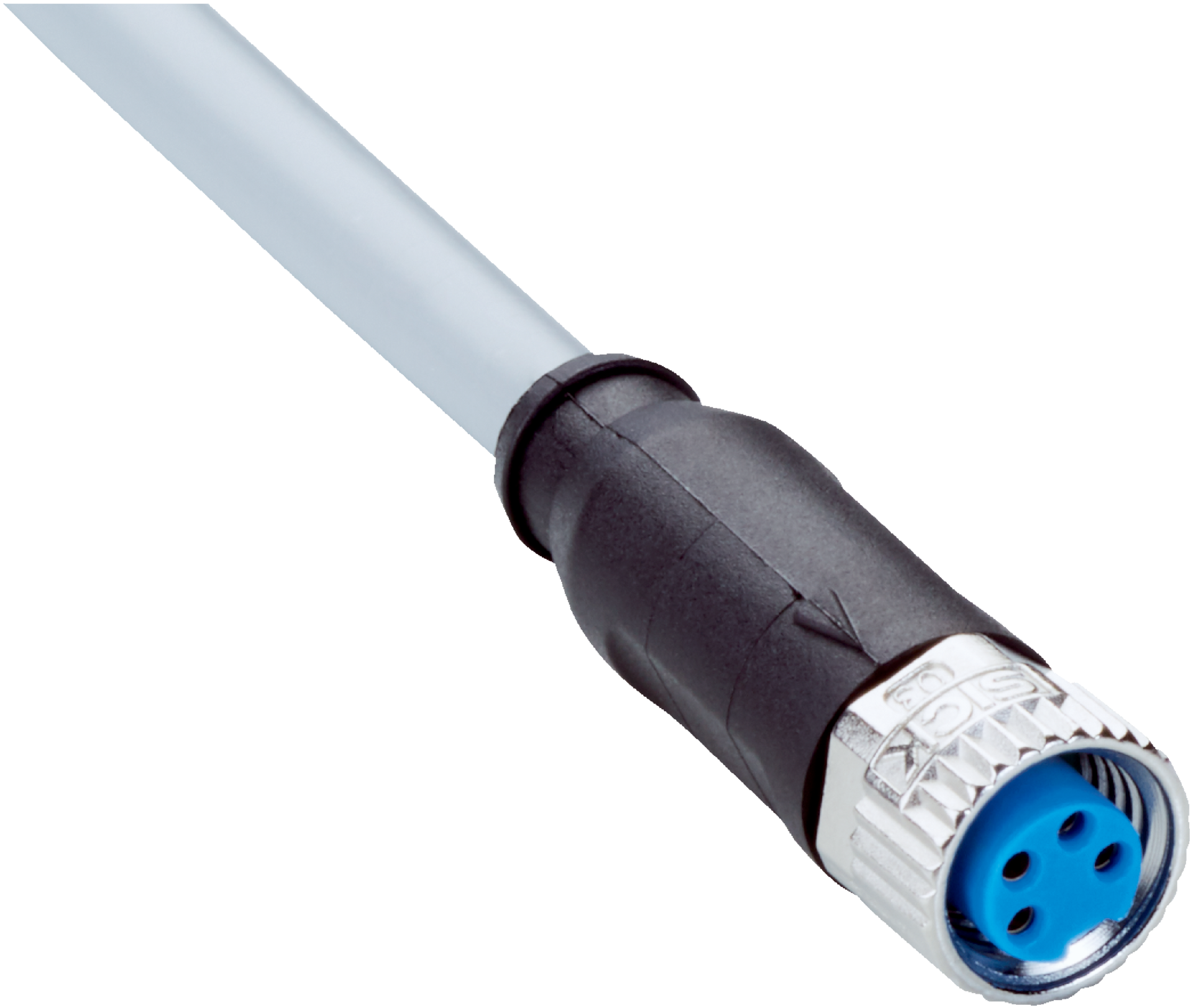

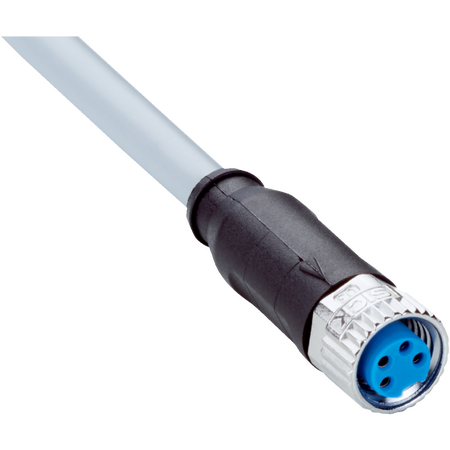

M8 Sensor Cable | 4-Pin Female Connector | IP65/IP66/IP67 Rated | PVC Jacket | by SICK
The M8 Sensor Cable features a 4-pin female connector with a robust screw connection, designed for reliable sensor and actuator connections in industrial automation. With a durable PVC jacket and IP65/IP66/IP67 rating, it ensures protection against dust and water, making it ideal for use in chemical exposure zones. This cable is built for flexibility and longevity, ensuring optimal performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable PVC 4x0.25mm², SICK Sensor Connector Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Flying leads
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 2 m
- Cable type: 4-wire, PVC jacket
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Nominal voltage: 300 V AC
- Test voltage: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 10mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 4-pin, straight, A-coded
- Screw connection locking plug
- TPU connector material with zinc die-cast nickel-plated locking nut
- PVC jacket in gray color
- Unshielded 4-wire cable with 0.25 mm² conductor cross section
- IP65 / IP66K / IP67 rated enclosure for robust protection
- Flame retardant according to UL 1581 VW1 / CSA FT1
- Operating temperature range: -5°C to +80°C flexible use, -30°C to +80°C stationary
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Sensor and actuator connections in uncontaminated zones
- Use in zones with chemical exposure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Flame retardant materials reduce fire hazards and environmental impact
- Durable construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK YF8U14-020VA3XLEAX sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
