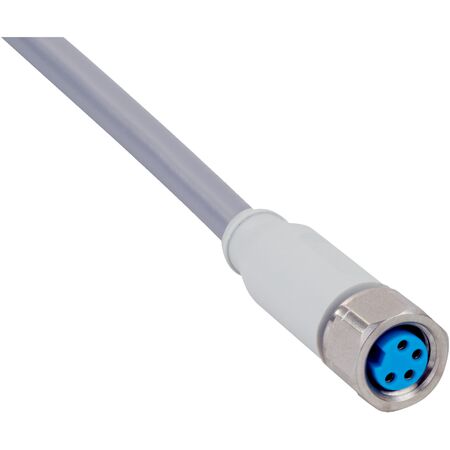

M8 Sensor Cable | 4-Pin Female Connector | PUR Material | IP65/IP67/IP69K Rated | by SICK
The M8 Sensor Cable is designed for reliable sensor and actuator connections in industrial environments. Featuring a 4-pin female connector and made from durable PUR material, this cable is ideal for hygienic and washdown zones. With an impressive IP65/IP67/IP69K enclosure rating, it ensures protection against dust and water, making it perfect for demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Tightening torque: 0.4 Nm
- Cable length: 5 m, 4-wire, PVC
- Jacket color: Gray
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
- Rated impulse voltage: 0.8 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- UL File No.: CYJV.E335179
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight
- Flying leads connection type
- Connector material made of PUR with blue color
- Locking nut made of stainless steel (V4A/1.4404)
- Cable length of 5 m with 4-wire PVC jacket
- Unshielded sensor/actuator cable
- High enclosure rating: IP65, IP67, IP69K
- Chemical resistance certified by ECOLAB (not resistant to lactic acid & hydrogen peroxide)
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary position –30 °C to +80 °C, Head –25 °C to +85 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Suitable for hygienic and washdown zones in industrial environments
- Ideal for sensor and actuator connections requiring robust and chemical-resistant cabling
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces the need for frequent replacements, minimizing waste
- Durable materials extend product lifespan, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK DOL-0804-G05MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
