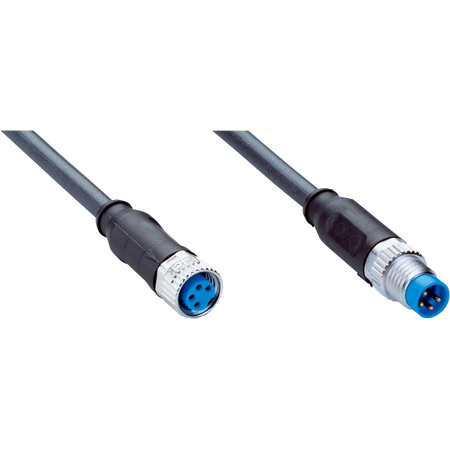

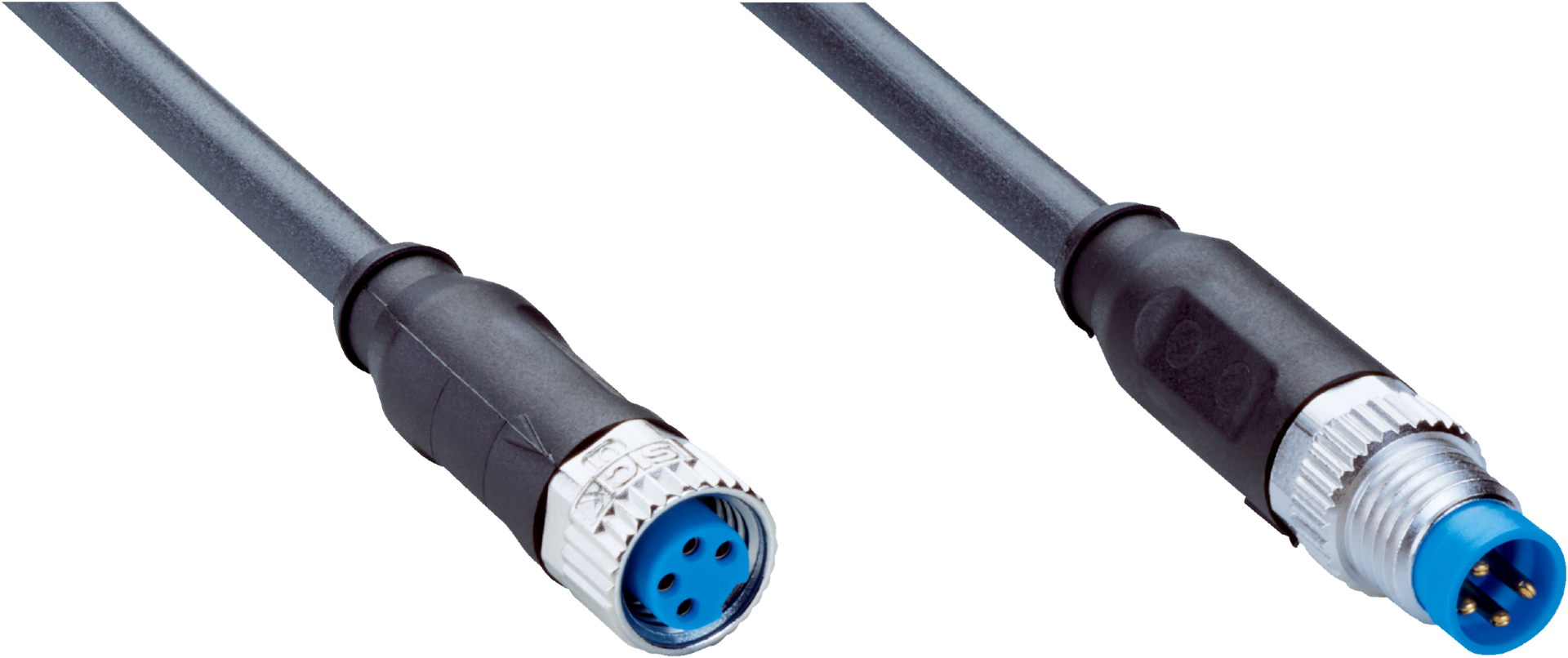

M8 Sensor Cable | 4-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | 0.6m Length | by SICK
The M8 Sensor Cable features 4-pin female and male connectors, designed for reliable connections in industrial automation and robotics. With a robust IP65/IP66K/IP67 rating and a 0.6m halogen-free PUR cable, it ensures durability in harsh environments. Ideal for drag chain operations, this cable supports high bending cycles and operates effectively in temperatures ranging from -25 °C to +80 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8 4-pin, SICK M8 Connector Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 0.6 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Operating temperature drag chain operation: -25 °C to +80 °C
- Bending cycles: 10,000,000
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 600mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight, A-coded
- Male connector, M8, 4-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Cable: 0.6 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Nominal voltage: 300 V AC
- Current loading: 4 A
- Torsion force: 180° / 1 m with 2,000,000 torsion cycles
- High bending cycles: 10,000,000
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper electrical and mechanical integrity.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF8U14-C60UA3M8U14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and drag chain applications.
