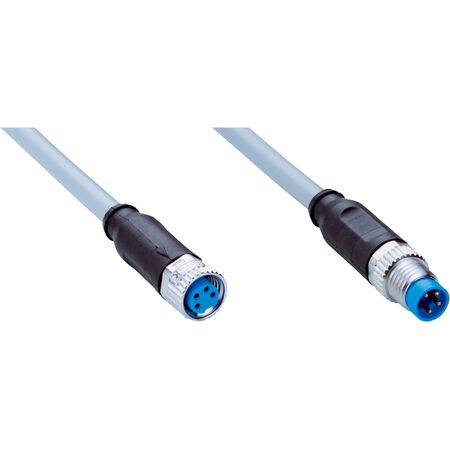

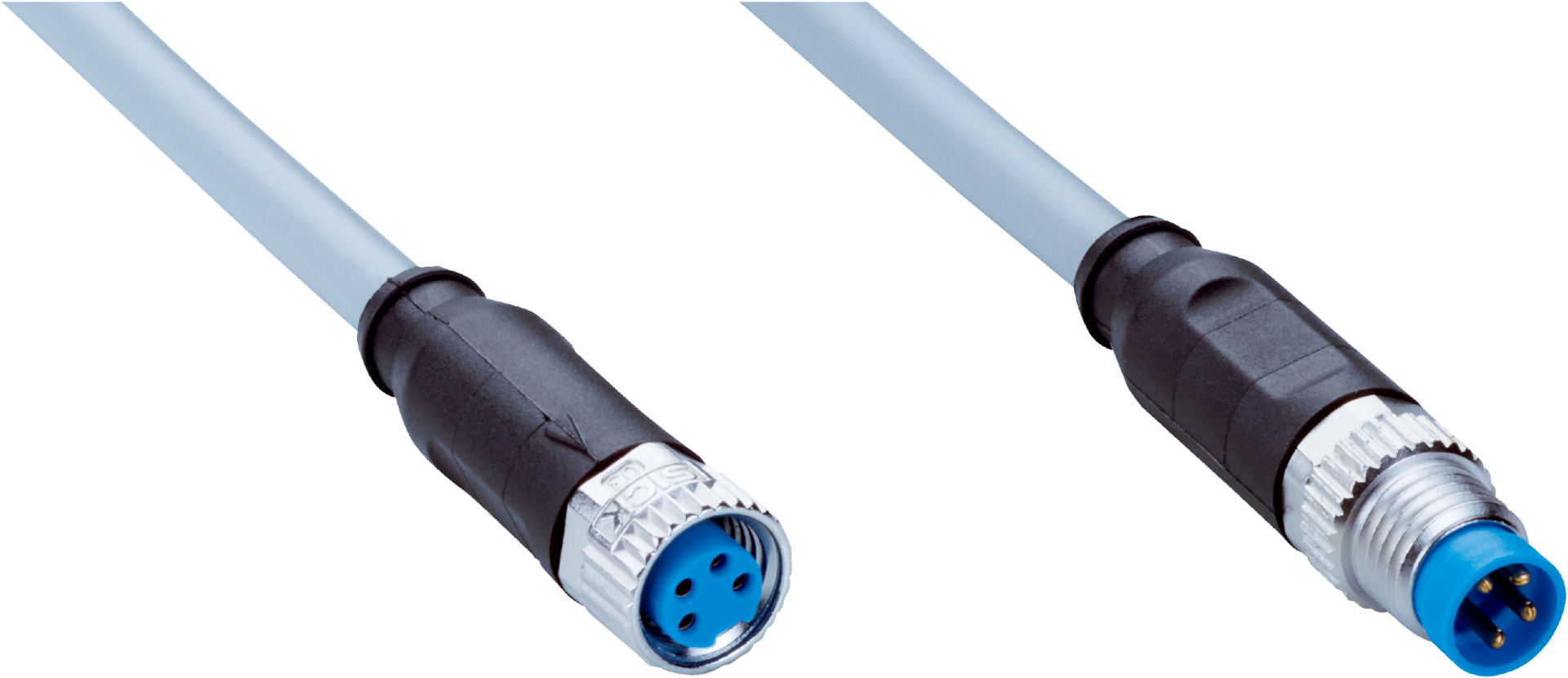

M8 Sensor Cable | 4-Pin Female & Male Connectors | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable YF8U14-015VA3M8U14 features 4-pin female and male connectors, designed for reliable industrial automation sensor and actuator connections. With a robust TPU construction and IP65/IP66K/IP67 enclosure rating, this cable ensures durability in harsh environments, making it ideal for applications in zones with chemicals and uncontaminated areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 1.5 m, 4-wire, PVC jacket
- Cable diameter: 4.8 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5 °C to +80 °C
- Operating temperature stationary position: -30 °C to +80 °C
- Operating temperature head: -25 °C to +85 °C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 15mm x 1500mm x 9mm
- Weight: 0.1 kg
Key Features
- Female and male M8, 4-pin, straight, A-coded connectors
- Screw connection locking plug for secure attachment
- Connector material made of TPU with black color
- Zinc die-cast nickel-plated female connector and nickel-plated brass male connector
- FKM seal material for enhanced durability
- PVC jacket in gray color with 1.5 m length and 4-wire configuration
- Unshielded cable with 0.25 mm² conductor cross section
- Bending radius suitable for flexible use > 10x cable diameter and stationary position > 5x cable diameter
- Operating temperature range from -30 °C to +80 °C (stationary) and -5 °C to +80 °C (flexible)
- Rated for nominal voltage of 300 V AC and test voltage of 2000 V AC
- Current loading capacity of 4 A
- Enclosure rating IP65 / IP66K / IP67 for protection against dust and water
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor cabling and electrical safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with chemicals
- Uncontaminated zones requiring reliable sensor cabling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials and flame retardant properties reduce replacement frequency and waste
- High insulation resistance and robust design minimize electrical losses and improve energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YF8U14-015VA3M8U14 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
