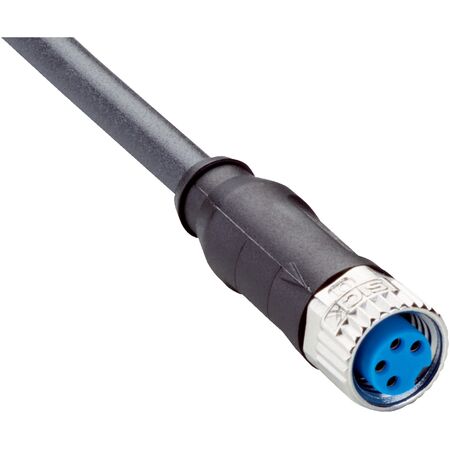

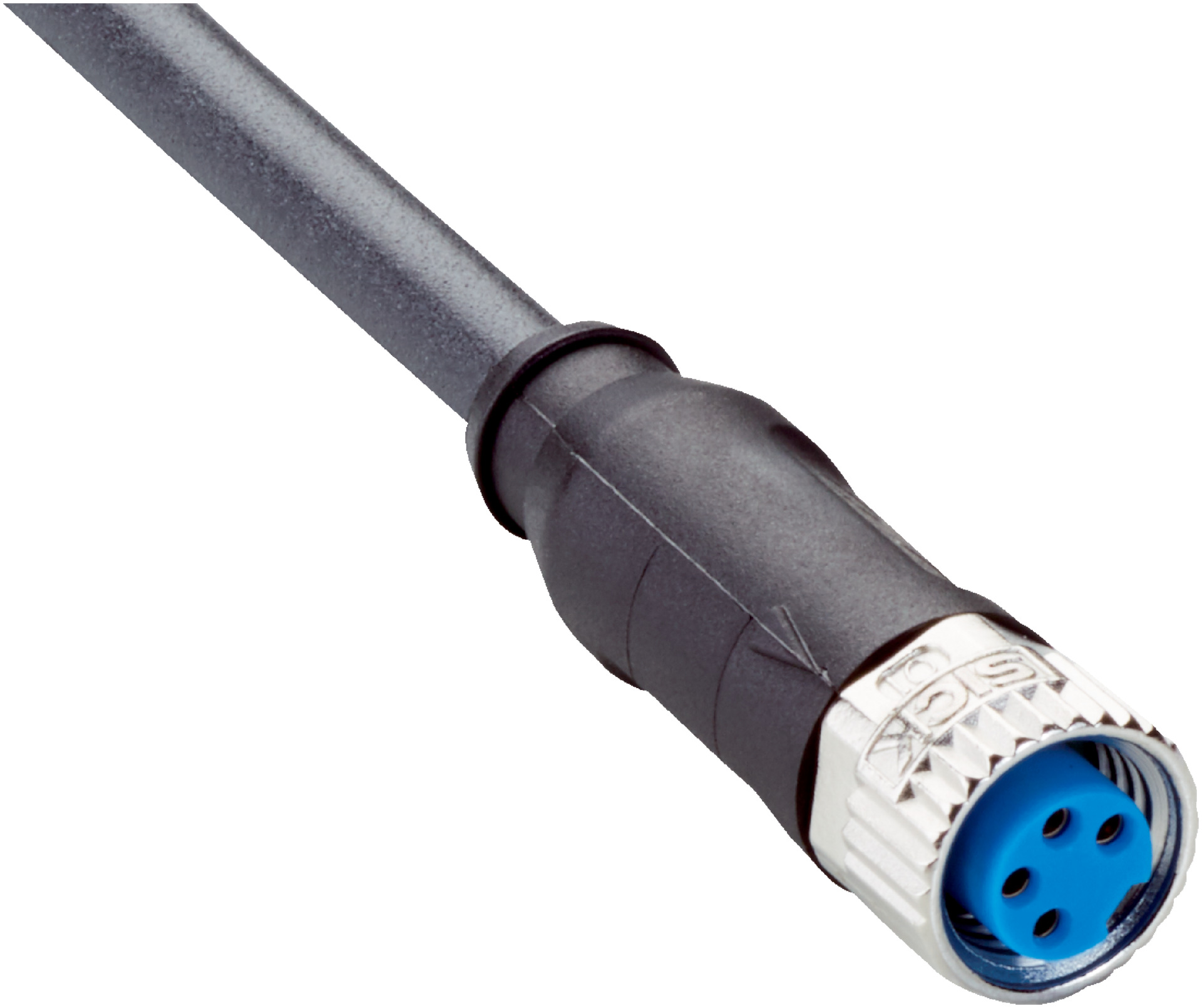

M8 Sensor Cable | 4-Pin Female Connector | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable YF8U14-020UA3XLEAX features a 4-pin female connector and is designed for reliable connections in industrial automation and robotics. With a robust IP65/IP66K/IP67 rating and high bending radius, this cable is perfect for drag chain operations and environments with oils and lubricants, ensuring durability and flexibility in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 9mm x 2000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight, A-coded
- Flying leads connection
- Screw connection locking plug
- TPU connector material with black color
- Zinc die-cast, nickel-plated locking nut
- FKM seal material
- 2 m, 4-wire, PUR, halogen-free cable
- Cable diameter 4.5 mm, conductor cross section 0.25 mm²
- Unshielded cable
- High bending radius for flexible use and drag chain operation
- Operating temperature range from -40 °C to +85 °C depending on use
- IP65 / IP66K / IP67 enclosure rating
- Torsion force 180°/1 m with 2,000,000 torsion cycles
- Nominal voltage 300 V AC, test voltage 2,500 V AC
- Current loading 4 A
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1 and IEC 60332-2-2
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free cable reduces environmental impact in case of fire
- Durable materials and high cycle life reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YF8U14-020UA3XLEAX sensor/actuator cable is available for immediate purchase. Ideal for industrial automation, robotics, and sensor connection applications.
