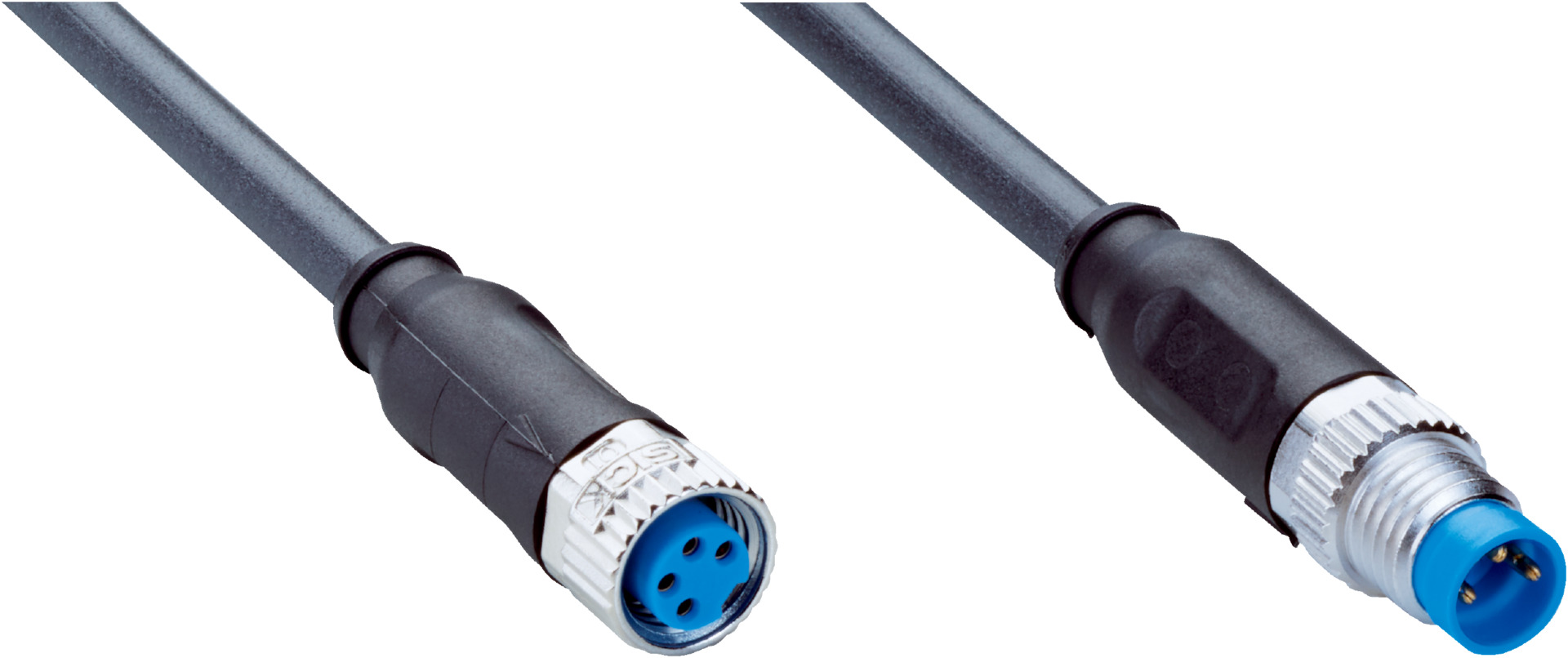

M8 Sensor Cable | 4-Pin Female to 3-Pin Male | IP65/IP66K/IP67 Rated | 5m Length | by SICK
The M8 Sensor Cable is designed for reliable connections in industrial automation and robotics, featuring a 4-pin female connector and a 3-pin male connector. With a robust IP65/IP66K/IP67 rating and a 5m halogen-free PUR cable, it ensures durability in challenging environments, making it ideal for drag chain operations and robot applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Cable length: 5 m
- Cable type: 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -40 °C to +80 °C
- Enclosure rating: IP65 / IP66K / IP67
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight, A-coded
- Male connector, M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Cable: 5 m, 4-wire, PUR, halogen-free, black jacket
- Cable diameter: 4.5 mm, conductor cross section: 0.25 mm²
- Unshielded cable
- Bending radius for flexible use > 10 x cable diameter
- Operating temperature range: -25 °C to +80 °C (flexible use), -40 °C to +80 °C (stationary)
- Enclosure rating: IP65 / IP66K / IP67
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Torsion cycles: 2,000,000 with 180°/1 m torsion force
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with sensor and actuator cable connections to ensure proper electrical and mechanical integrity.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal.
- Flame retardant materials enhance safety and reduce fire hazards.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

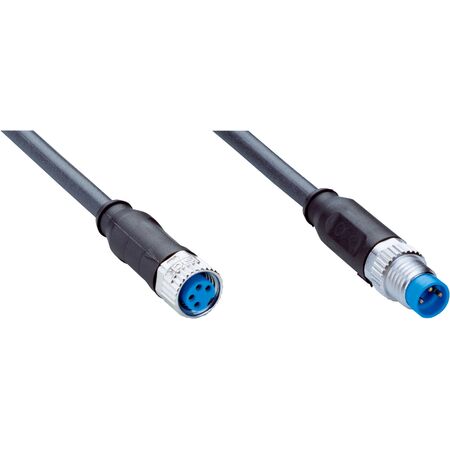

The SICK YF8U14-050UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
