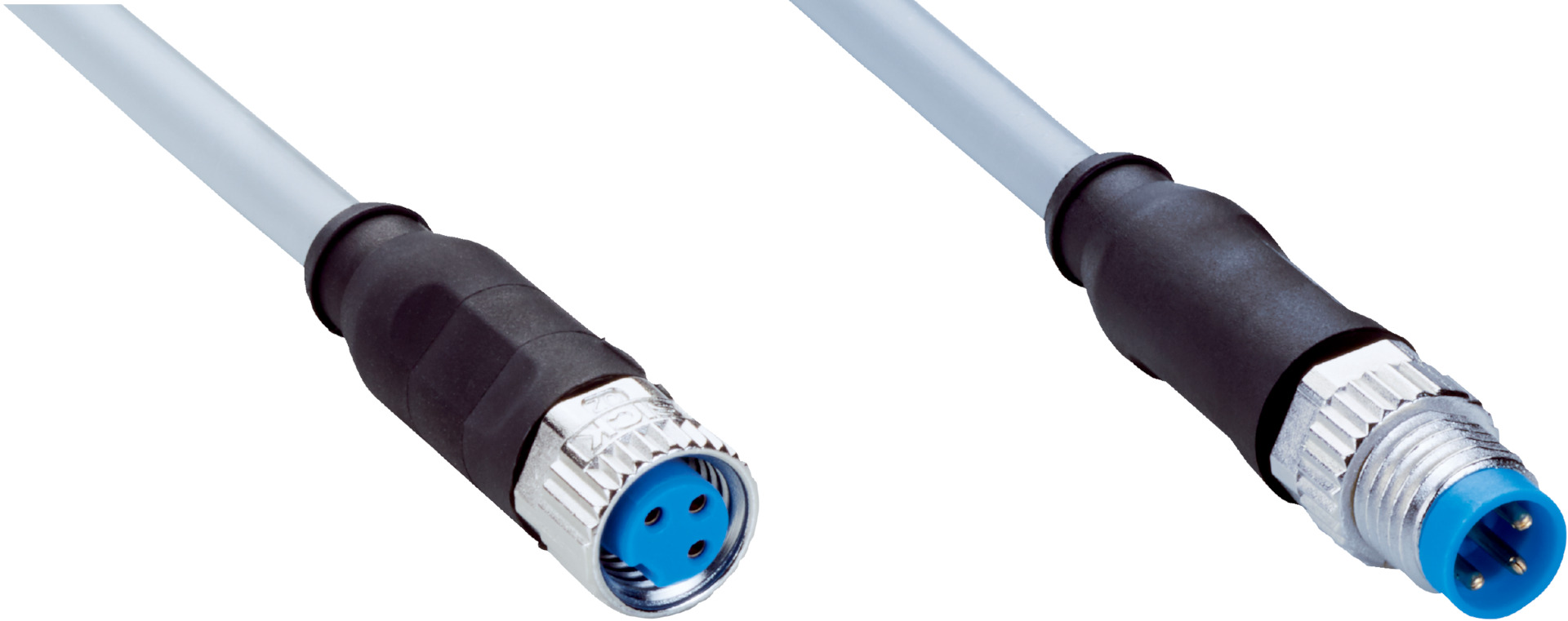

M8 Sensor Cable | 5m Length | IP65/IP66K/IP67 Rated | TPU Material | by SICK
The M8 Sensor Cable is designed for reliable sensor and actuator connections, featuring a 5m length and IP65/IP66K/IP67 enclosure rating. Built with durable TPU material, this cable withstands harsh environments, making it ideal for industrial automation and applications in zones with chemicals. With a robust screw connection and high flexibility, it ensures optimal performance in various settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 5 m, 3-wire, PVC jacket
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -5°C to +80°C
- Operating temperature stationary position: -30°C to +80°C
- Operating temperature head: -25°C to +85°C
- Nominal voltage cable: 300 V AC
- Test voltage cable: 2000 V AC
- Reference voltage: 48 V AC / 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance piping: Flame retardant according to UL 1581 VW1 / CSA FT1
- Dimensions (H x L x W): 9mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, straight, A-coded
- Male connector M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Connector material: TPU with black color
- Locking nut material: Zinc die-cast nickel-plated (female), nickel-plated brass (male)
- Seal material: FKM
- Cable length: 5 m, 3-wire PVC jacket, gray color
- Cable diameter: 4.5 mm, conductor cross section 0.25 mm²
- Unshielded cable
- Bending radius flexible use > 10 x cable diameter, stationary position > 5 x cable diameter
- Operating temperature flexible use -5°C to +80°C, stationary -30°C to +80°C, head -25°C to +85°C
- Nominal voltage 300 V AC, test voltage 2000 V AC
- Current loading 4 A
- Torsion force 180°/1 m, 2,000,000 torsion cycles
- Enclosure rating IP65 / IP66K / IP67
- Flame retardant according to UL 1581 VW1 / CSA FT1
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Use in zones with chemicals
- Suitable for uncontaminated zones
- Sensor and actuator cable applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now

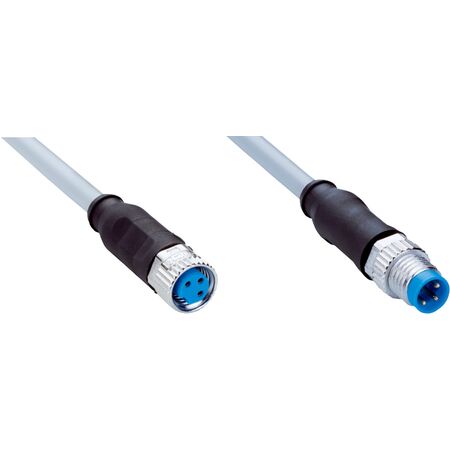

The SICK YF8U13-050VA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
