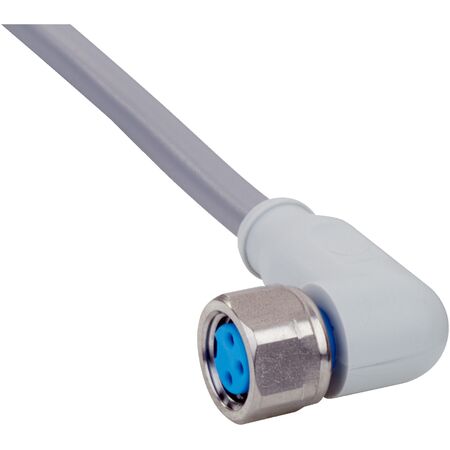

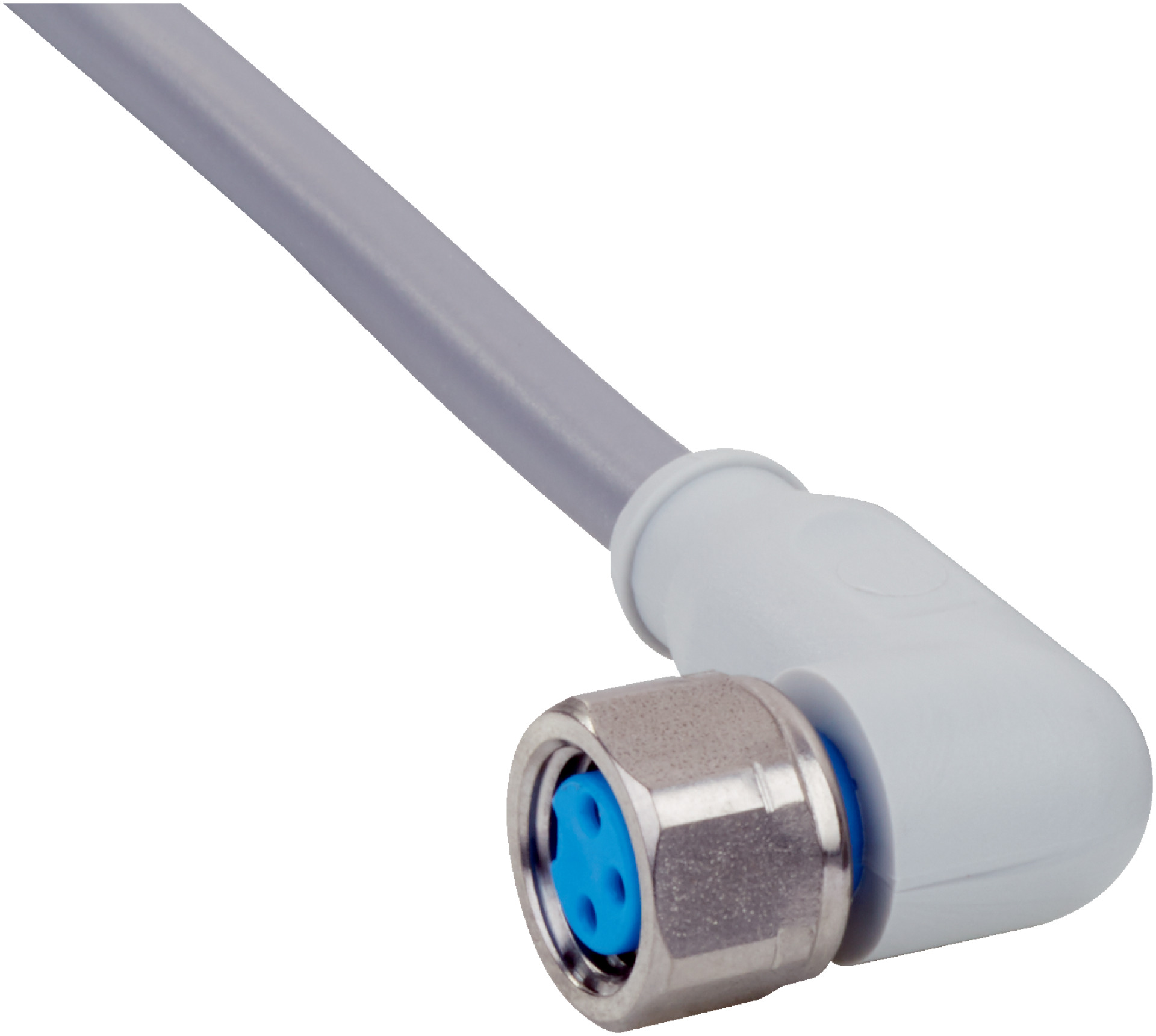

M8 Sensor Cable | 5m Length | IP65/IP67/IP69K Rated | Chemical Resistant | by SICK
The M8 Sensor Cable is designed for reliable connections in industrial automation, featuring a 5m length and IP65/IP67/IP69K enclosure ratings for high protection in washdown environments. With a durable PUR connector and stainless steel locking nut, this cable is ideal for sensor and actuator applications, ensuring chemical resistance and longevity in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled
- Connection type head B: Flying leads
- Connector material: PUR
- Locking nut material: Stainless steel (V4A/1.4404)
- Cable: 5 m, 3-wire, PVC jacket
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Tightening torque: 0.4 Nm
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP69K
- Operating temperature: Flexible use –5 °C to +80 °C, Stationary –30 °C to +80 °C, Head –25 °C to +85 °C
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled
- Cable length: 5 m, 3-wire, PVC jacket
- Connector material: PUR with stainless steel locking nut
- Enclosure rating: IP65, IP67, IP69K for high protection
- Operating temperature range: Flexible use –5 °C to +80 °C, Stationary –30 °C to +80 °C, Head –25 °C to +85 °C
- Chemical resistant to ECOLAB certified cleaning agents
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Use in hygienic and washdown zones requiring chemical resistance
- Suitable for sensor and actuator connections in industrial automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Chemical resistance reduces need for frequent replacements, minimizing waste
- Durable materials extend product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK DOL-0803-W05MNI sensor/actuator cable is available for immediate purchase, ideal for industrial automation in hygienic and washdown environments.
