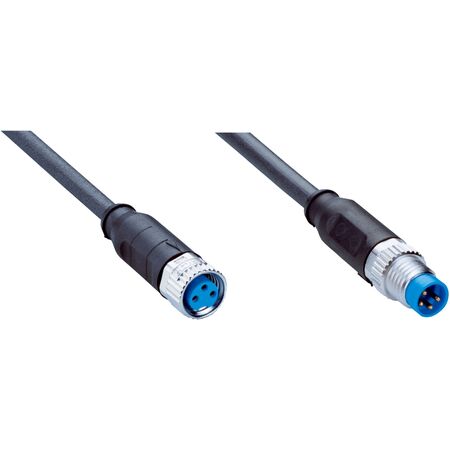

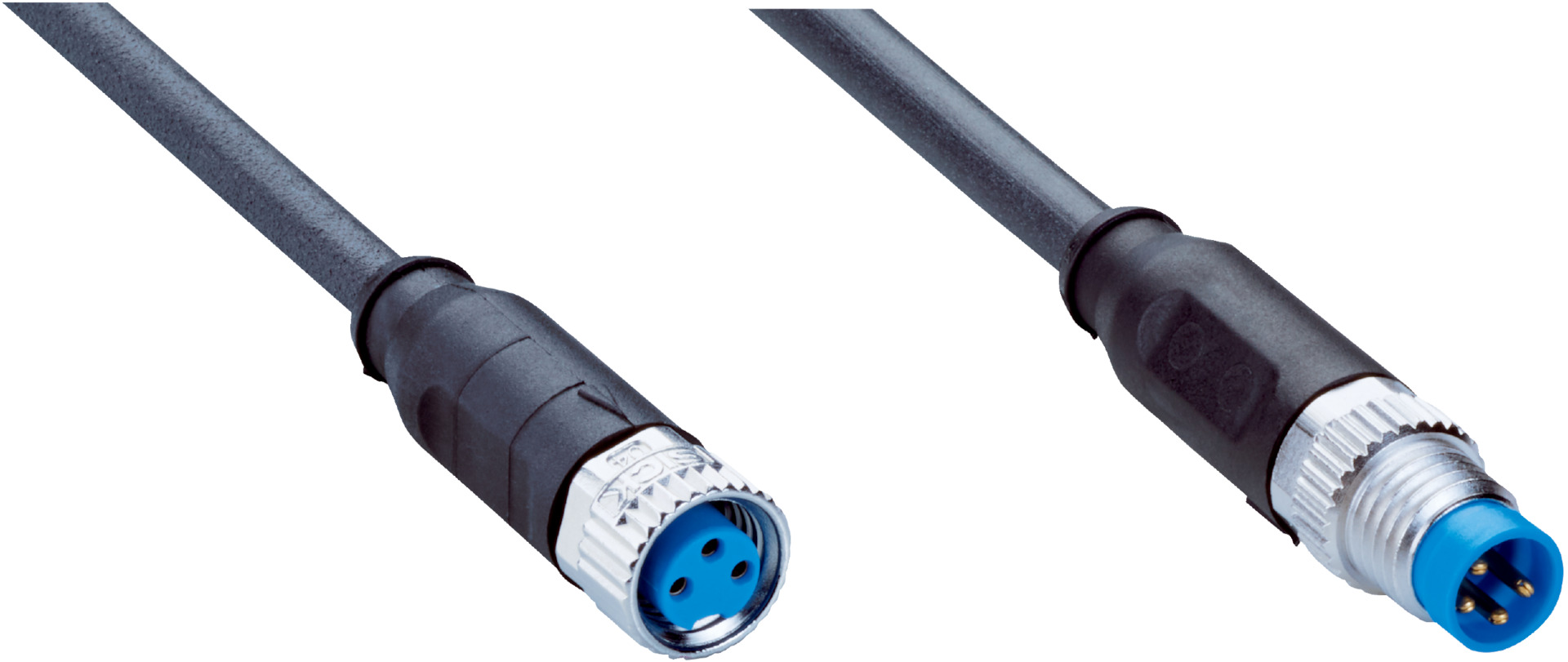

M8 Sensor Cable | Female 3-Pin & Male 4-Pin Connectors | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable YF8U13-010S01M8U13 features a female 3-pin and male 4-pin connector, designed for reliable connections in industrial automation. With a robust IP65/IP66K/IP67 rating and a halogen-free PUR jacket, this cable is perfect for environments with oils and lubricants, ensuring durability and safety in flexible use and drag chain operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight, A-coded
- Connection type head B: Male connector, M8, 4-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable length: 1 m
- Cable type: 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Bending cycles: 10,000,000
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Operating temperature: Flexible use -25°C to +80°C, Stationary -40°C to +80°C, Drag chain -25°C to +80°C, Head -25°C to +85°C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 1000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector M8, 3-pin, straight, A-coded
- Male connector M8, 4-pin, straight, A-coded
- Screw connection locking plug
- Cable is PUR, halogen-free, black color
- High bending radius suitable for flexible use and drag chain operation
- Operating temperature range from -40°C to +85°C depending on use
- IP65 / IP66K / IP67 enclosure rating for robust protection
- UL and cULus certified
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK YF8U13-010S01M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
