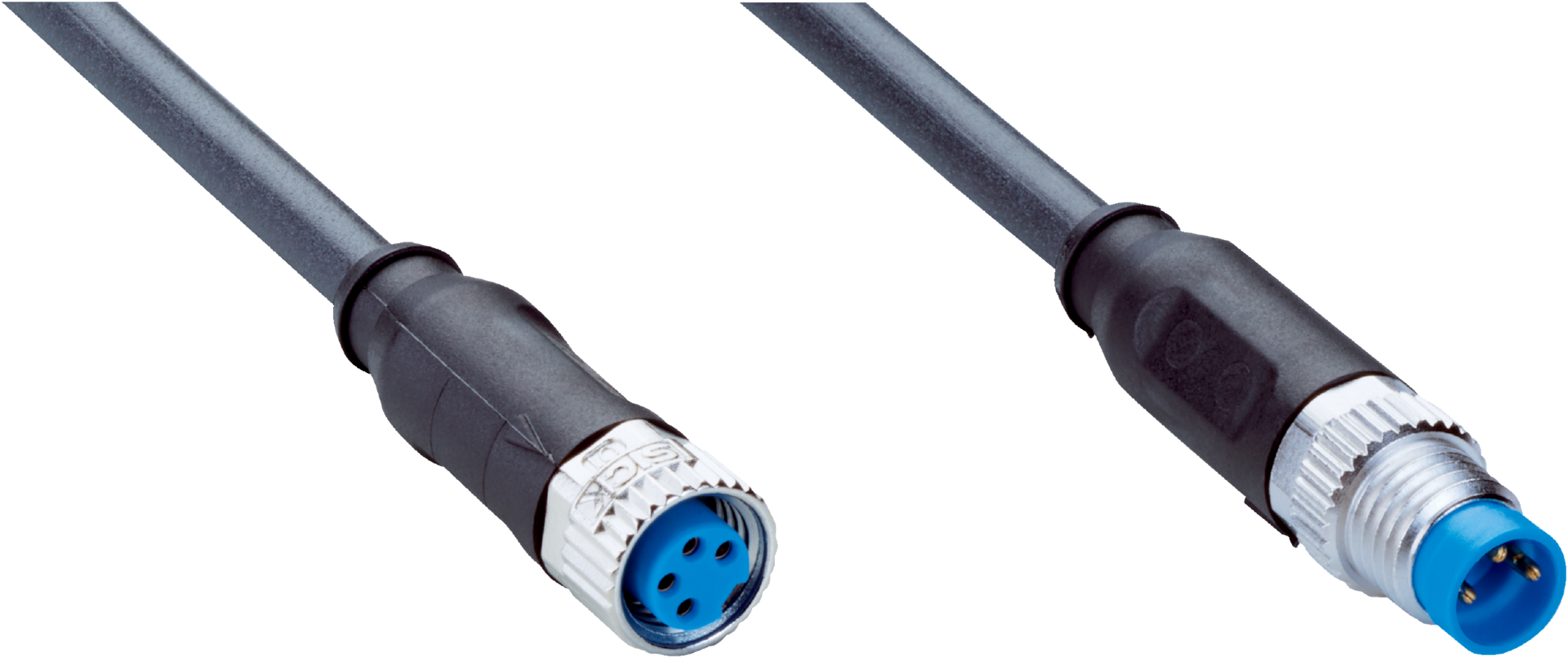

M8 Sensor Cable | Female 4-Pin & Male 3-Pin Connectors | IP65/IP66K/IP67 Rated | by SICK
The M8 Sensor Cable is designed for robust industrial applications, featuring a female 4-pin and male 3-pin connector for reliable connections. With a durable 5 m PUR cable, it withstands extreme temperatures from -40 °C to +85 °C and offers IP65/IP66K/IP67 protection, making it ideal for robotics and drag chain operations. Its halogen-free design ensures safety in case of fire, while the screw connection locking plug guarantees secure installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: M8 Sensor Cable, Actuator Cable M8, SICK Sensor Cable, Industrial Sensor Cable
Technical Specifications
- Connection type head A: Female connector, M8, 4-pin, straight, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 5 m, 4-wire, PUR, halogen-free
- Cable diameter: 4.5 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter
- Bending cycles: 10,000,000
- Reference voltage: ≤ 60 V DC
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Enclosure rating: IP65 / IP66K / IP67
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary -40 °C to +80 °C, Drag chain -25 °C to +80 °C, Head -25 °C to +85 °C
- Contamination rating: 3
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 4-pin, straight, A-coded
- Male connector, M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 5 m, 4-wire, PUR, halogen-free
- High bending radius and torsion cycles for durability
- Enclosure rating IP65 / IP66K / IP67 for robust protection
- Operating temperature range from -40 °C to +85 °C
- Flame retardant cable material according to UL 1581 and IEC standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with sensor and actuator cable connections to ensure proper function and safety.
Applications
- Drag chain operation
- Zones with oils and lubricants
- Robotics
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces harmful emissions in case of fire
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

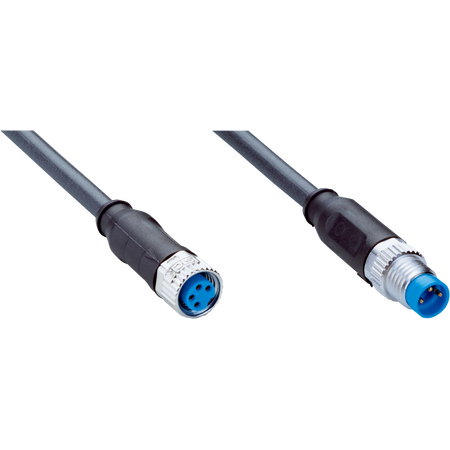

The SICK YF8U14-050UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications requiring durable and reliable cabling.
