M8 Sensor Cable | Female & Male Connectors | 5m Length | IP65/IP66K/IP67 Rated | by SICK

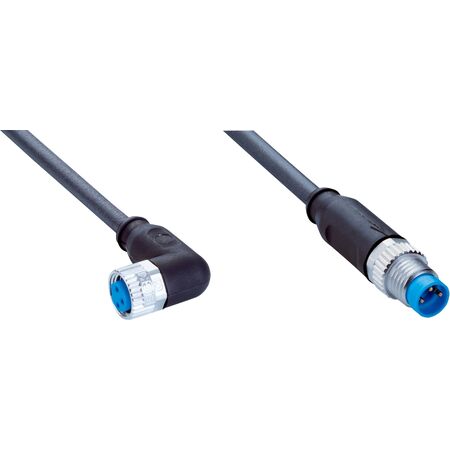

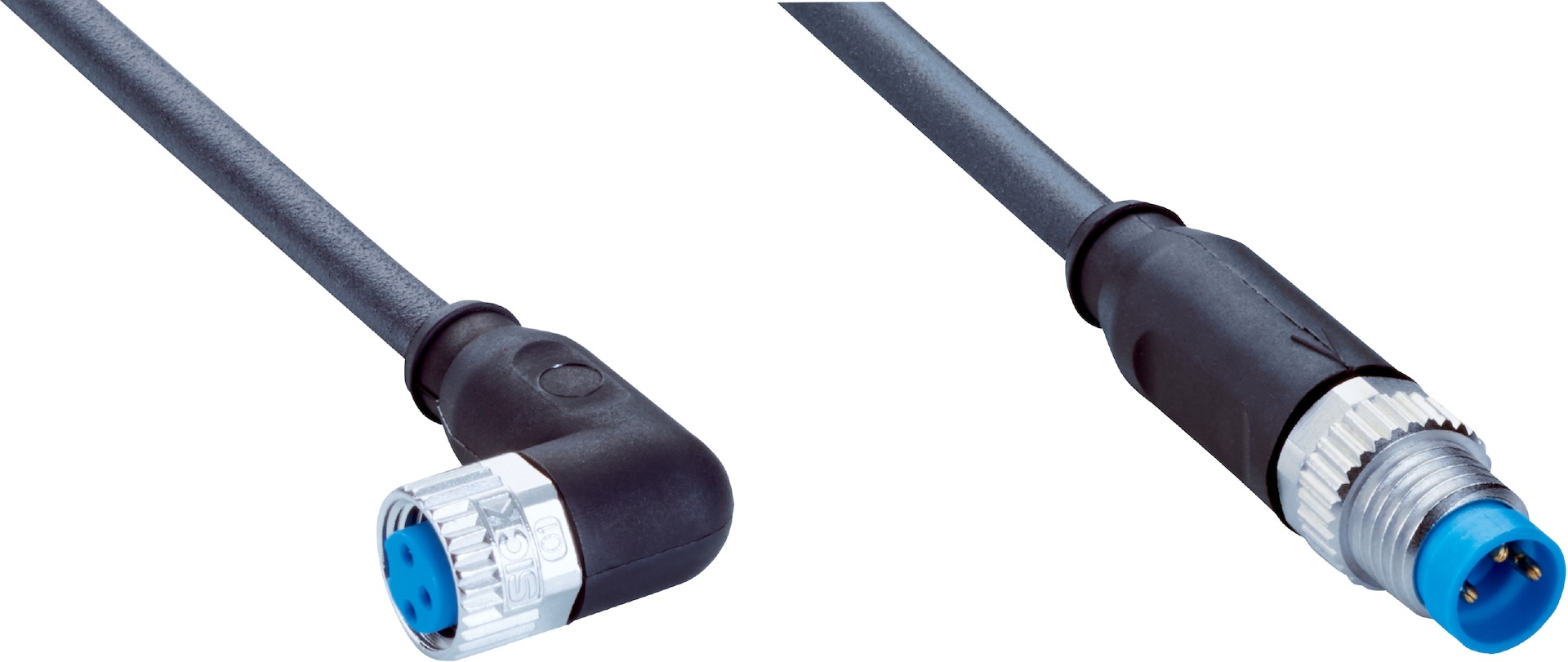

The M8 Sensor Cable YG8U13-050UA1M8U13 features a female angled connector and a male straight connector, designed for reliable sensor and actuator connections in industrial automation. With a 5m halogen-free PUR cable, it’s perfect for robot applications and drag chain operations, ensuring high torsion resistance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 5 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius: Flexible use > 10 x cable diameter, Stationary position > 5 x cable diameter, Drag chain operation > 10 x cable diameter
- Operating temperature: Flexible use -25 °C to +80 °C, Stationary position -40 °C to +80 °C, Drag chain operation -25 °C to +80 °C, Head -25 °C to +85 °C
- Rated impulse voltage: 1.5 kV
- Current loading: ≤ 4 A
- Traversing speed: 3 m/s
- Travelling distance: 10 m
- Acceleration: ≤ 10 m/s²
- Signal type: Sensor/actuator cable
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Cycles per minute: 35
- Insulation resistance: 100 MΩ
- Overvoltage category: III
- Specific insulation resistance: 30 mΩ
- Thermal resistance: Flame retardant according to UL 1581, CSA FT2, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 5000mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded
- Male connector, M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 5 m, 3-wire, PUR, halogen-free
- High bending radius suitable for flexible use and drag chain operation
- IP65 / IP66K / IP67 enclosure rating
- Flame retardant according to UL 1581 and IEC 60332 standards
- High torsion resistance with 2,000,000 torsion cycles
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure proper connection and compliance with electrical safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK YG8U13-050UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation, robotics, and sensor connection applications.
