M8 Sensor Cable | Female & Male Connectors | IP65/IP66/IP67 Rated | by SICK

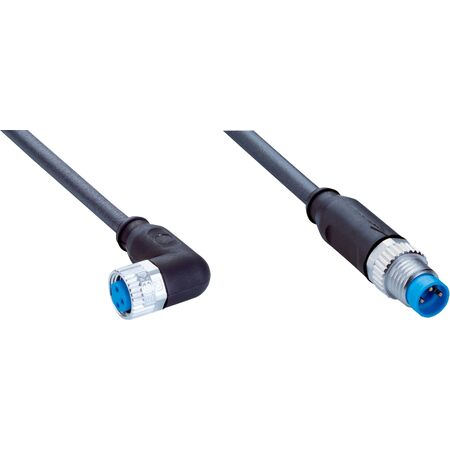

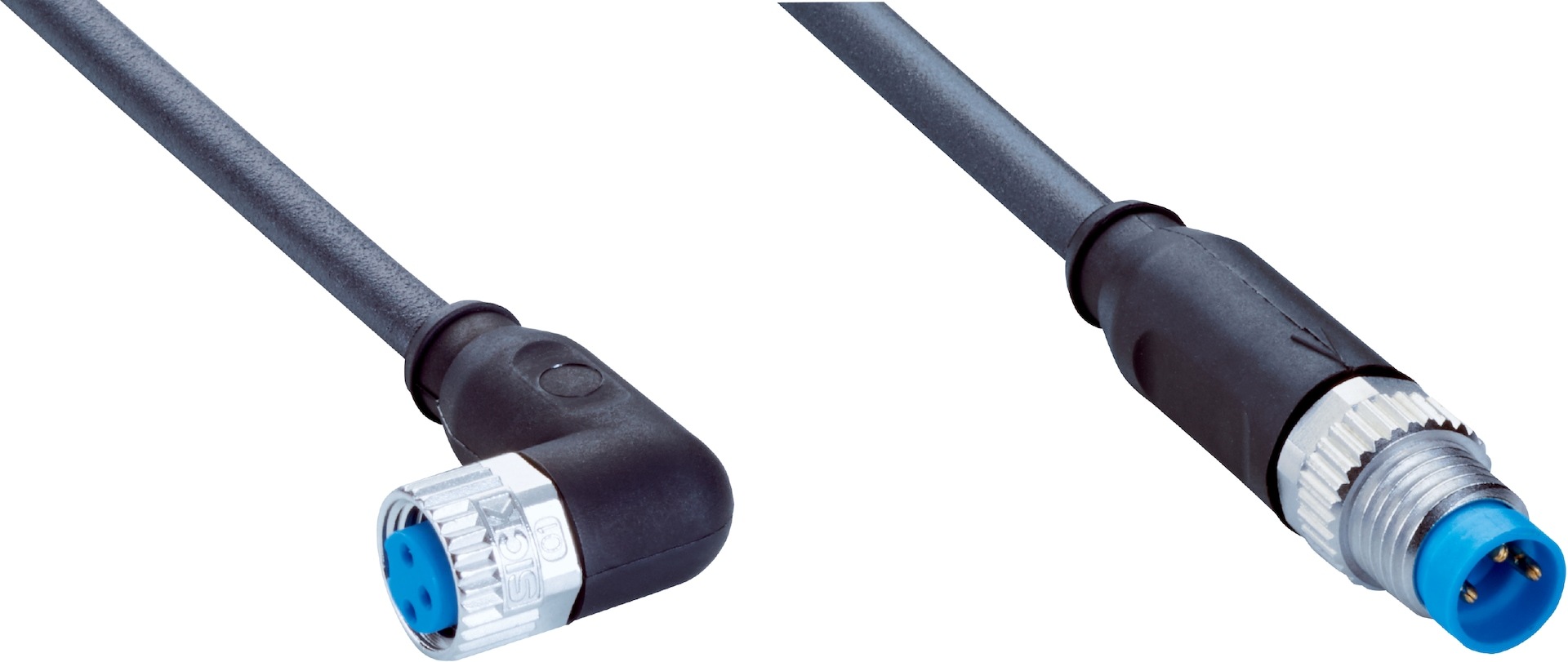

The M8 Sensor Cable features a female connector, M8, 3-pin, angled, and a male connector, M8, 3-pin, straight, ensuring reliable connections in various applications. With an operating temperature range of -25°C to +80°C and an IP65/IP66/IP67 enclosure rating, this cable is perfect for industrial automation, robotics, and environments with oils and lubricants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, angled, A-coded
- Connection type head B: Male connector, M8, 3-pin, straight, A-coded
- Locking plug connector: Screw connection
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated (female), Nickel-plated brass (male)
- Seal material: FKM
- Tightening torque: 0.4 Nm
- Cable: 0.3 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.1 mm
- Conductor cross section: 0.25 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Operating temperature flexible use: -25°C to +80°C
- Nominal voltage: 300 V AC
- Test voltage: 2,500 V AC
- Rated impulse voltage: 1.5 kV
- Current loading: 4 A
- Enclosure rating: IP65 / IP66K / IP67
- Torsion force: 180° / 1 m
- Torsion cycles: 2,000,000
- Flame retardant according to UL 1581, IEC 60332-1, IEC 60332-2-2
- Dimensions (H x L x W): 9mm x 300mm x 9mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, angled, A-coded
- Male connector, M8, 3-pin, straight, A-coded
- Screw connection locking plug
- Cable length 0.3 m, 3-wire, PUR, halogen-free
- Operating temperature range: -25°C to +80°C (flexible use)
- Enclosure rating: IP65 / IP66K / IP67
- Bending radius for flexible use > 10 x cable diameter
- Torsion cycles up to 2,000,000
- Nominal voltage 300 V AC, current loading 4 A
- Flame retardant according to UL 1581 and IEC 60332 standards
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Uncontaminated zones
- Zones with oils and lubricants
- Robot applications
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Flame retardant materials enhance safety and reduce fire hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK YG8U13-C30UA1M8U13 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and robotics applications.
