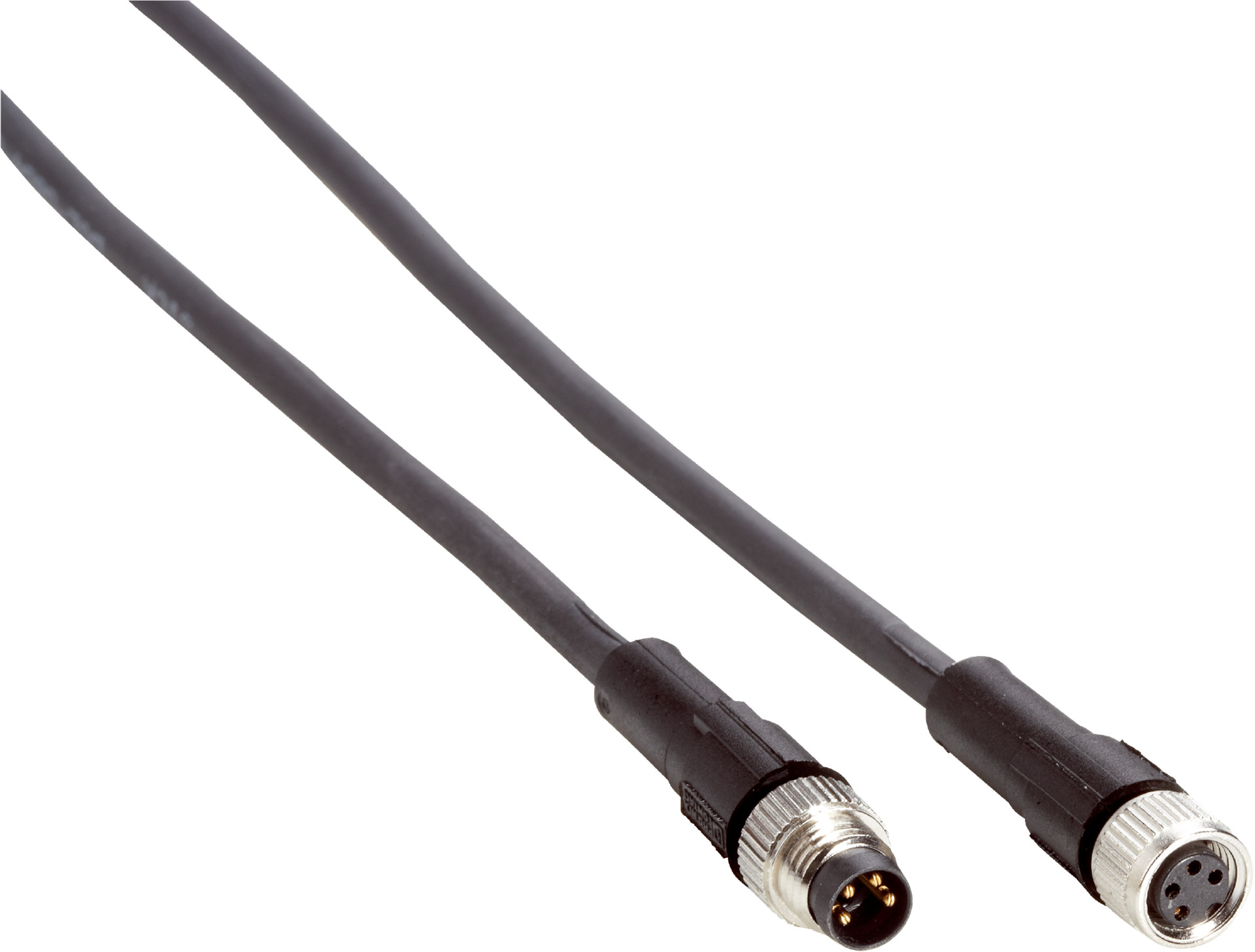

M8 Sensor Cable | Female & Male Connectors | IP65/IP67/IP68 Rated | 1m Length | by SICK
The M8 Sensor Cable is designed for reliable sensor and actuator connections, featuring female and male connectors with a durable TPU material. With a 1m length and an IP65/IP67/IP68 enclosure rating, it's perfect for industrial automation in environments with oils and lubricants. Built to withstand extreme temperatures and high bending cycles, this cable ensures long-lasting performance and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type head A: Female connector, M8, 3-pin, straight
- Connection type head B: Male connector, M8, 3-pin, straight
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Cable: 1 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.3 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: –25 °C to +80 °C
- Operating temperature stationary position: –50 °C to +80 °C
- Operating temperature head: –40 °C to +90 °C
- Current loading: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP68
- Bending cycles: ≥ 2,000,000
- Tightening torque: 0.3 Nm
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector, M8, 3-pin, straight on head A
- Male connector, M8, 3-pin, straight on head B
- Connector material: TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Cable length: 1 m, 3-wire, PUR, halogen-free
- Cable diameter: 4.3 mm with conductor cross section of 0.34 mm²
- Unshielded cable
- High bending radius for flexible use and stationary position
- Operating temperature range: Flexible use –25 °C to +80 °C, Stationary position –50 °C to +80 °C, Head –40 °C to +90 °C
- Current loading capacity: 4 A
- Signal type: Sensor/actuator cable
- Enclosure rating: IP65 / IP67 / IP68
- High durability with bending cycles ≥ 2,000,000
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Zones with oils and lubricants
- Drag chain operation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR jacket reduces environmental impact during disposal
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now

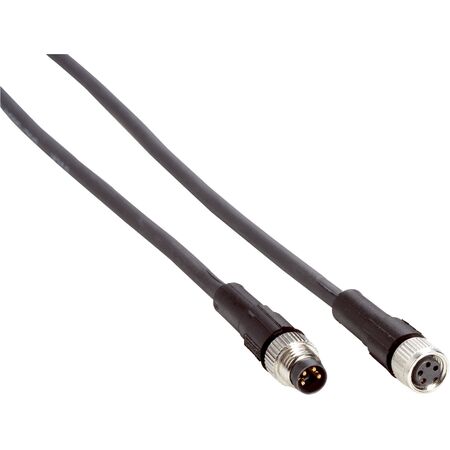

The SICK DSL-0803-G01M sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
