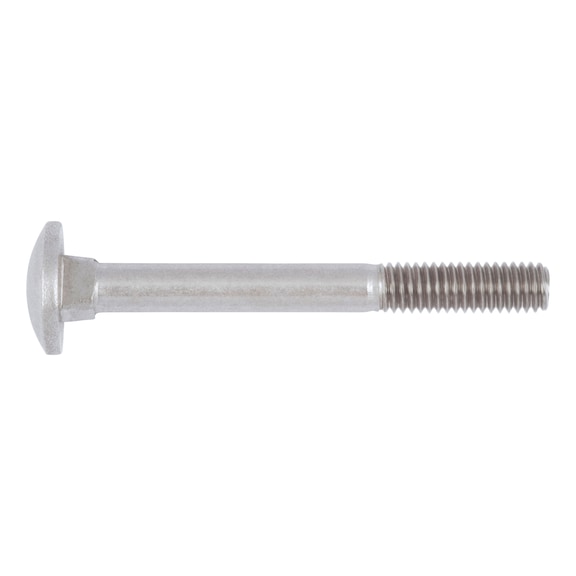

M8 Stainless Steel Cup Head Square Neck Bolt | 35mm Length | Corrosion Resistant | DIN 603 Compliant | by Wurth
The M8 Stainless Steel Cup Head Square Neck Bolt is designed for secure fastening in mechanical assemblies, automotive, and construction applications. With a length of 35mm and made from durable stainless steel A2, it offers excellent corrosion resistance and complies with DIN 603 standards, ensuring reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Stainless Steel Cup Head Square Neck Bolt | 35mm Length | Corrosion Resistant | DIN 603 Compliant | by Wurth
Brand: Wurth
SKU: 226835
Alternatively Known As: Square Neck Cup Head Bolt, M8 Stainless Steel Bolt, Metric Cup Head Bolt, DIN 603 Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M8
- Length (l1): 35 mm
- Material: Stainless steel A2
- Property class: 70
- Surface: Plain
- Head diameter (dk): 20.65 mm
- Head height (k1): 4.88 mm
- Square width (V): 8.58 mm
- Square height (f): 5.6 mm
- Standards: DIN 603
- RoHS-compliant: Yes
- Head type: Cup head square neck
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Standard metric thread
- Shank diameter: 8 mm
- Thread length (metric thread) (b): 22 mm
- Product class: C
- Dimensions (H x L x W): 4.88mm x 35mm x 20.65mm
- Weight: 0.1 kg
Key Features
- Flat square neck fixes the round head screw in oval holes
- Allows tightening from the nut side without holding the screw
- Made from stainless steel A2 for corrosion resistance
- Cup head with square neck design
- Complies with DIN 603 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified tradesperson or technician is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening with resistance to loosening
- Automotive and machinery applications where stainless steel corrosion resistance is needed
- Construction and manufacturing projects using metric fasteners
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from stainless steel which is recyclable and durable, reducing replacement frequency
- RoHS-compliant ensuring no hazardous substances are used
Warranty Information
Wurth provides standard warranty against manufacturing defects as per company policy.
Available Now
The Wurth M8 Stainless Steel Cup Head Square Neck Bolt 35mm is available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
