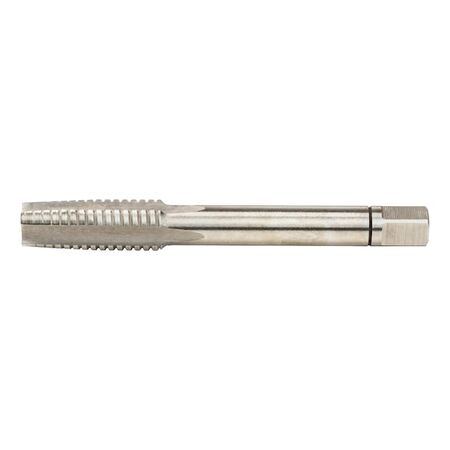

M8 Taper Tap High Speed Steel Wurth
Wurth M8 Taper Tap High Speed Steel features 1.25mm m8 pitch, 63mm length, and 6mm diameter. Ideal for ISO standard threads by hand in through holes and blind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type description: Taper tap
- Standards: DIN 352
- Thread type x nominal diameter: M8
- Pitch: 1.25 mm
- Length: 63 mm
- Thread length (metric thread): 22 mm
- Shank diameter: 6 mm
- Size of square: 4.9 mm
- Core hole diameter: 6.8 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 63mm x 63mm x 6mm
- Weight: 0.1 kg
Key Features
- Trim cut form A for precise thread cutting
- Suitable for metric ISO standard threads according to DIN13
- High-speed steel (HSS) material for durability
- Complies with DIN 352 standard
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting for safety and precision.
Applications
- Machining: Producing metric ISO standard threads by hand in through holes and blind holes
- Material groups: Steel, non-ferrous metals, cast iron up to 800 N/mm² strength
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable HSS material reduces tool replacement frequency, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Taper Tap M8 x 1.25 mm is available for immediate purchase, ideal for machining and thread cutting applications.
