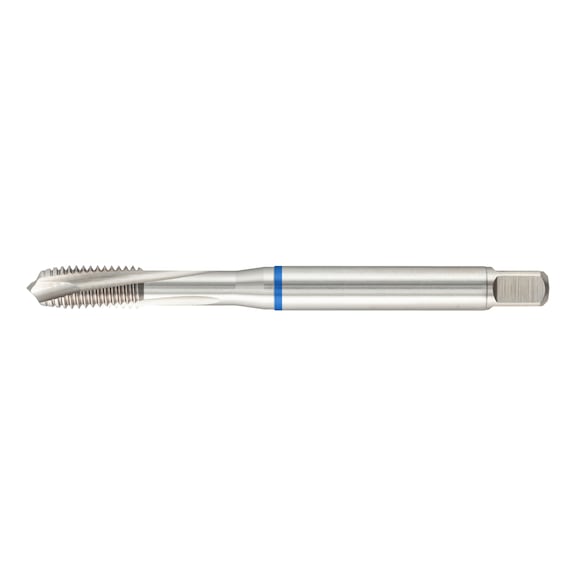

M8 Thread Tap | HSCo Material | Left-Hand Spiral Design | 30% Longer Service Life | by Wurth
The M8 Thread Tap is engineered for precision thread cutting in steel materials, featuring a newly developed geometry that combines a left-hand spiral and a spiral point tap. Ideal for trained machinists, this premium tap offers a homogenized surface structure and up to 30% longer service life compared to conventional taps, making it perfect for general structural steels and non-alloyed tempering steels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Thread Tap | HSCo Material | Left-Hand Spiral Design | 30% Longer Service Life | by Wurth
Brand: Wurth
SKU: 653700800
Alternatively Known As: M8 Thread Tap, Metric Thread Cutter, Steel Threading Tap, Machine Tap M8, HSCo Thread Cutter
Technical Specifications
- Thread type: Metric thread
- Material to be processed: Steel
- Hole type: Clearance hole approx. 3xD
- Suitable for machine type: Milling/drill center, Pedestal drilling machine
- Quality: ZEBRA-Premium
- Thread type x nominal diameter: M8
- Pitch: 1.25 mm
- Length: 90 mm
- Shank diameter: 8.0 mm
- Size of square: 6.2 mm
- DIN: 371
- Cutting material: HSCo
- Surface: Plain
- Form: D
- Core hole diameter: 6.8 mm
- Shank style: Cylindrical with square drive
- Tolerance of screw taps: ISO 2X (6HX)
- Suitable for tensile strength up to: 1200 N/mm²
- Service life (points system): 3 of 4 points
- Trueness to gauge (points system): 4 of 4 points
- Versatility (points system): 2 of 4 points
- Cutting behaviour (points system): 3 of 4 points
- Chip formation (points system): 3 of 4 points
- Material of sub-group: General structural steels, Non-alloyed tempering steels
- Dimensions (H x L x W): 90mm x 90mm x 8mm
- Weight: 0.1 kg
Key Features
- Newly developed geometry combining a left-hand spiral and a spiral point tap
- Homogenised surface structure due to state-of-the-art finishing process
- Up to 30% longer service life compared to conventional plain machine taps
- Cutting edge geometry precisely tailored to steel materials
- Product packaging made from 100% PCR (recycled plastic from household waste) and 100% recyclable
Professional Installation Requirements
- Use by trained machinists or professionals experienced in thread cutting and machining operations is recommended for optimal results and safety.
Applications
- Machining: Thread cutting in general structural steels and non-alloyed tempering steels
- Suitable for use with milling/drill centers and pedestal drilling machines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Product packaging made from 100% recycled plastic from household waste and is fully recyclable
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth M8 Metric Thread Cutter Tap is available now for immediate purchase. Ideal for machining applications involving steel materials requiring precise and durable thread cutting.
