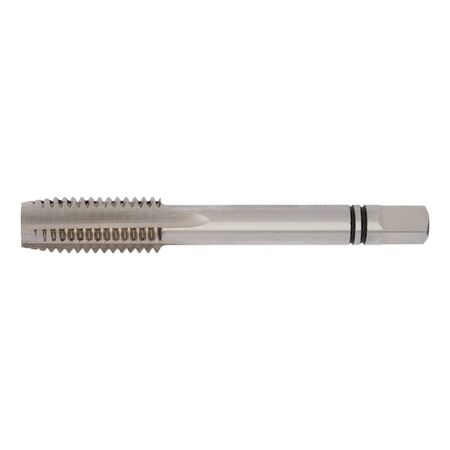

M8 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
The M8 Thread Tap is designed for precise thread cutting in both through and blind holes. Made from durable HSS material, it complies with DIN 352 standards, making it ideal for producing metric ISO standard threads in steel, non-ferrous metals, and cast iron. Perfect for trained machinists and technicians, this second tap ensures high performance and longevity in machining applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Thread Tap | HSS Material | Trim Cut Form D | DIN 352 Compliant | by Wurth
Brand: Wurth
SKU: 64028
Alternatively Known As: M8 Thread Tap, Metric Thread Cutter, HSS Thread Tap, Second Tap M8
Technical Specifications
- Type description: Second tap
- Standards: DIN 352
- Thread type x nominal diameter: M8
- Pitch: 1.25 mm
- Length: 63 mm
- Thread length (metric thread): 22 mm
- Shank diameter: 6 mm
- Size of square: 4.9 mm
- Core hole diameter: 6.80 mm
- Material: HSS
- Thread type: Metric thread
- Dimensions (H x L x W): 63mm x 63mm x 6mm
- Weight: 0.1 kg
Key Features
- Trim cut form D for precise thread cutting
- Complies with DIN 13 for metric ISO standard threads
- Suitable for through holes and blind holes
- High-speed steel (HSS) material for durability
Professional Installation Requirements
- No professional installation required; suitable for manual use by trained machinists or technicians.
Applications
- Machining: Producing metric ISO standard threads by hand in through holes and blind holes
- Material groups: Steel, non-ferrous metals, cast iron up to 800 N/mm² strength
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable HSS material reduces tool replacement frequency, minimizing waste
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth M8 Second Tap Thread Cutter is available for immediate purchase, ideal for precision machining and threading applications.
