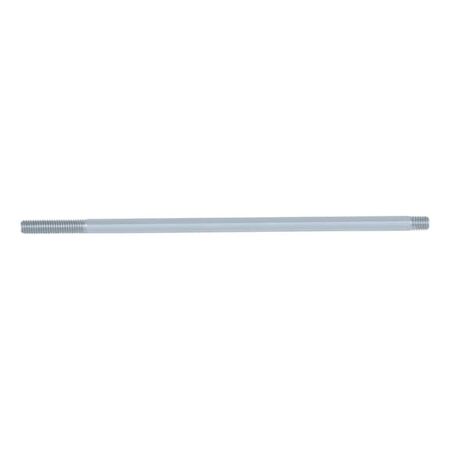

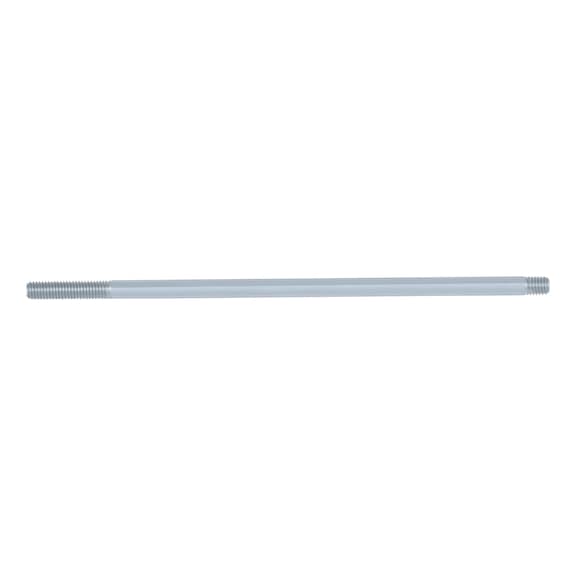

M8 Threaded Stud Bolt | Zinc Plated Steel | 20mm Length | DIN 939 Compliant | by Wurth
The M8 Threaded Stud Bolt is crafted from high-strength zinc plated steel, ensuring durability and corrosion resistance. With a nominal diameter of M8 and a length of 20mm, it's perfect for mechanical assemblies, automotive repairs, and construction applications. This stud bolt complies with DIN 939 standards and is RoHS-compliant, making it an environmentally safe choice for secure fastening.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: M8 Threaded Stud Bolt | Zinc Plated Steel | 20mm Length | DIN 939 Compliant | by Wurth
Brand: Wurth
SKU: 2500820
Alternatively Known As: M8 Threaded Stud Bolt, Zinc Plated Stud Bolt, Metric Thread Bolt M8, DIN 939 Stud Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M8
- Length (l1): 20 mm
- Thread length (metric thread) (l2): 14 mm
- Thread length 2 (metric thread) (l3): 10 mm
- Standards: DIN 939
- Material: Steel
- Property class: 8.8
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Without head
- Drive type: Without drive
- Thread type: Metric thread
- Pitch: 1.25 mm
- Thread form: Standard metric thread
- Shank diameter: 8 mm
- Product class: A
- Dimensions (H x L x W): 20mm x 20mm x 8mm
- Weight: 0.1 kg
Key Features
- Made from high-strength steel with property class 8.8
- Zinc plated surface for corrosion resistance
- Metric thread with M8 nominal diameter and 1.25 mm pitch
- Complies with DIN 939 standard
- RoHS-compliant ensuring environmental safety
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper torque and secure fastening.
Applications
- Mechanical assemblies requiring secure fastening
- Automotive repairs and manufacturing
- Industrial machinery and equipment
- Construction and structural applications
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M8 Zinc Plated Steel Threaded Stud Bolt 20mm is available for immediate purchase, ideal for mechanical, automotive, and construction fastening applications.
